• Voltage：380V
• Input Power：3.0kw
• Rated Pressure：20MPa
• Air Consumption：5L,Min
• Weight：700kgs
• Operating Pressure：0.6-0.8MPa
• Fuel Tank Capacity：40L
• Oil Pump Size：10"
• Front Position Stroke：170mm
• Backward Cutter Stroke：120mm
• Adjustment Range of Angle Cutter：160mm
• Adjustment Range of Front Position：140mm
• Height：160mm
• Transport Package：Wooden Case
• Specification：870x1200x1100mm
• Trademark：SETH
• Origin：Shanong China

Basic Info.

Voltage 380V Input Power 3.0kw Rated Pressure 20MPa Air Consumption 5L/Min Weight 700kgs Operating Pressure 0.6-0.8MPa Fuel Tank Capacity 40L Oil Pump Size 10" Front Position Stroke 170mm Backward Cutter Stroke 120mm Adjustment Range of Angle Cutter 160mm Adjustment Range of Front Position 140mm Height 160mm Transport Package Wooden Case Specification 870x1200x1100mm Trademark SETH Origin Shanong China

Product Description

Jinan SETH Intellighent Equipment Co.,Ltd.

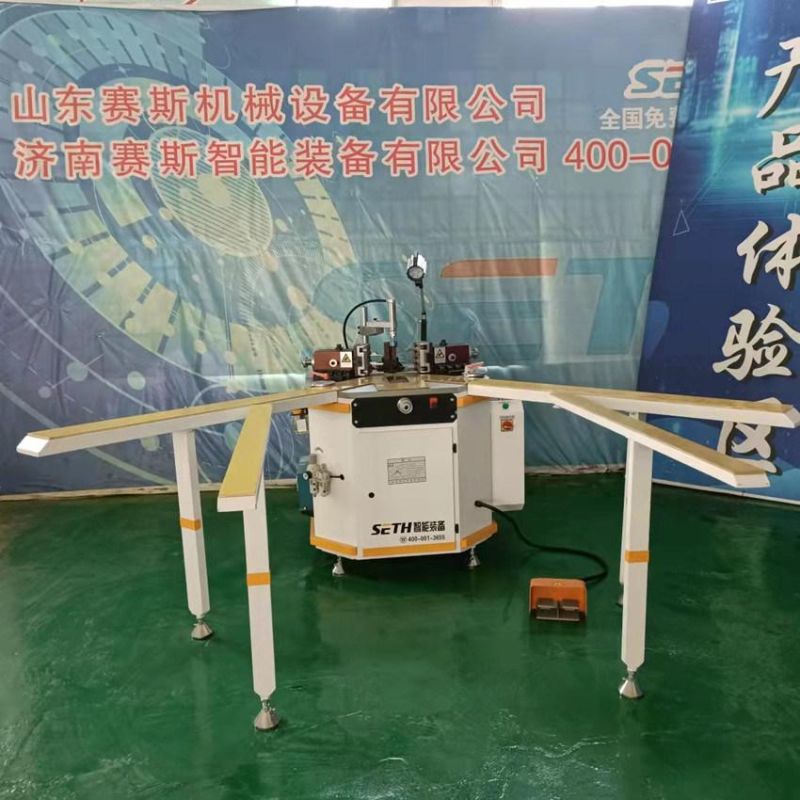

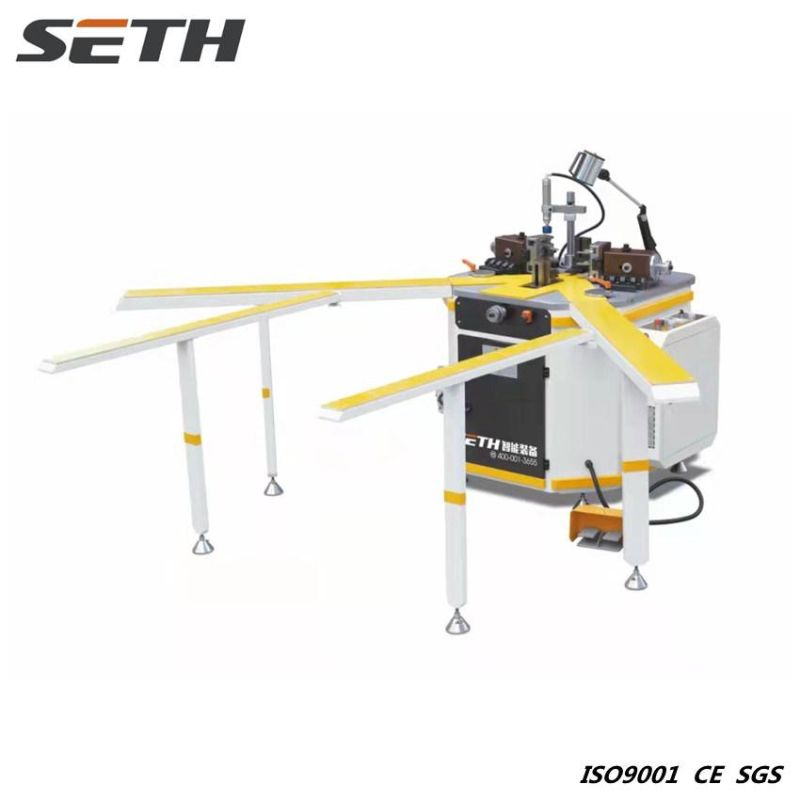

 SETH-CNS-160S model heavy duty single-head Hydraulic-pressure Corner Combining Machine
1.Product Feature:
1.It is suitable for corner-code punching and riveting connection of
 aluminum door and window curtain wall.
2. This machine is the latest R&D and design model of our company,
  which is the first in the industry, with stable performance, high
  precision and high efficiency.
3.The machine is controlled by program, hydraulic system provides
  angular power, and has high punching and riveting force, fast speed
  and stable operation.
4.The angle setting knife has a wide adjustment range up and down, is
  easy to adjust, and adapts to the angle setting of higher and thicker
  profiles.
5.The front positioning adopts lifting type, which is convenient for
  taking and placing materials.
6.Double-point knife and step knife can be configured to make the
   angle strength higher

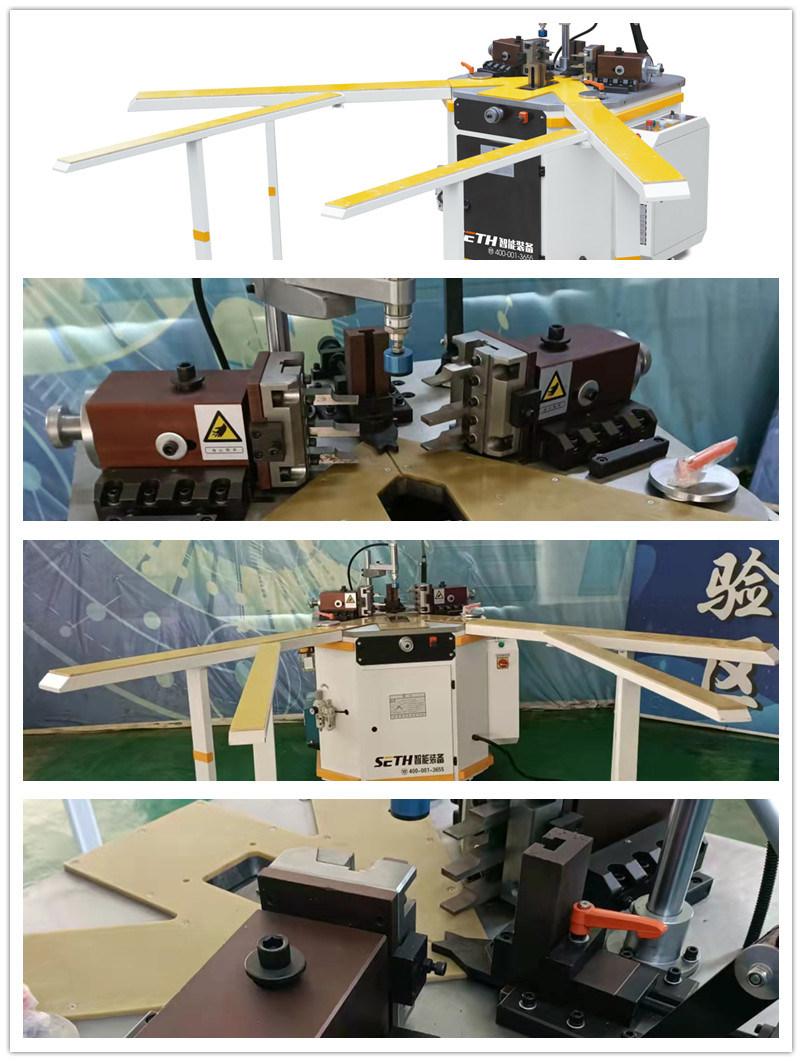

 2.Product details:

3. Technical Parameter:

Power supply	380V 50Hz
Total motor power	3.0Kw
Rated pressure	20MPa
Operating pressure	0.6~0.8MPa
Air consumption	5L/min
Front positioning stroke	170mm
Backward cutter stroke	120mm
Adjustment range of front positioning	140mm
Adjustment range of angle cutter	160mm
Height of machined profile	160mm
Fuel tank capacity	40L
Oil pump size	10 "
Overall dimension	870×1200×1100mm
Weight	700kg

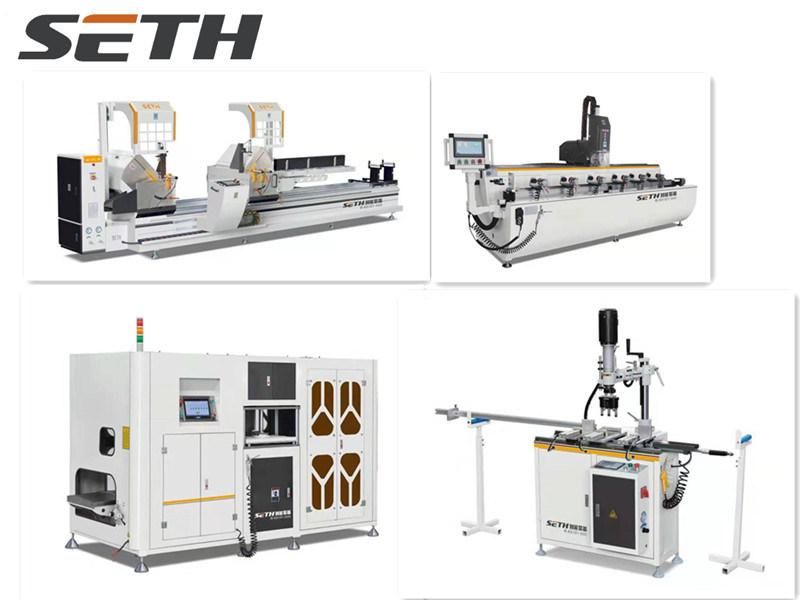

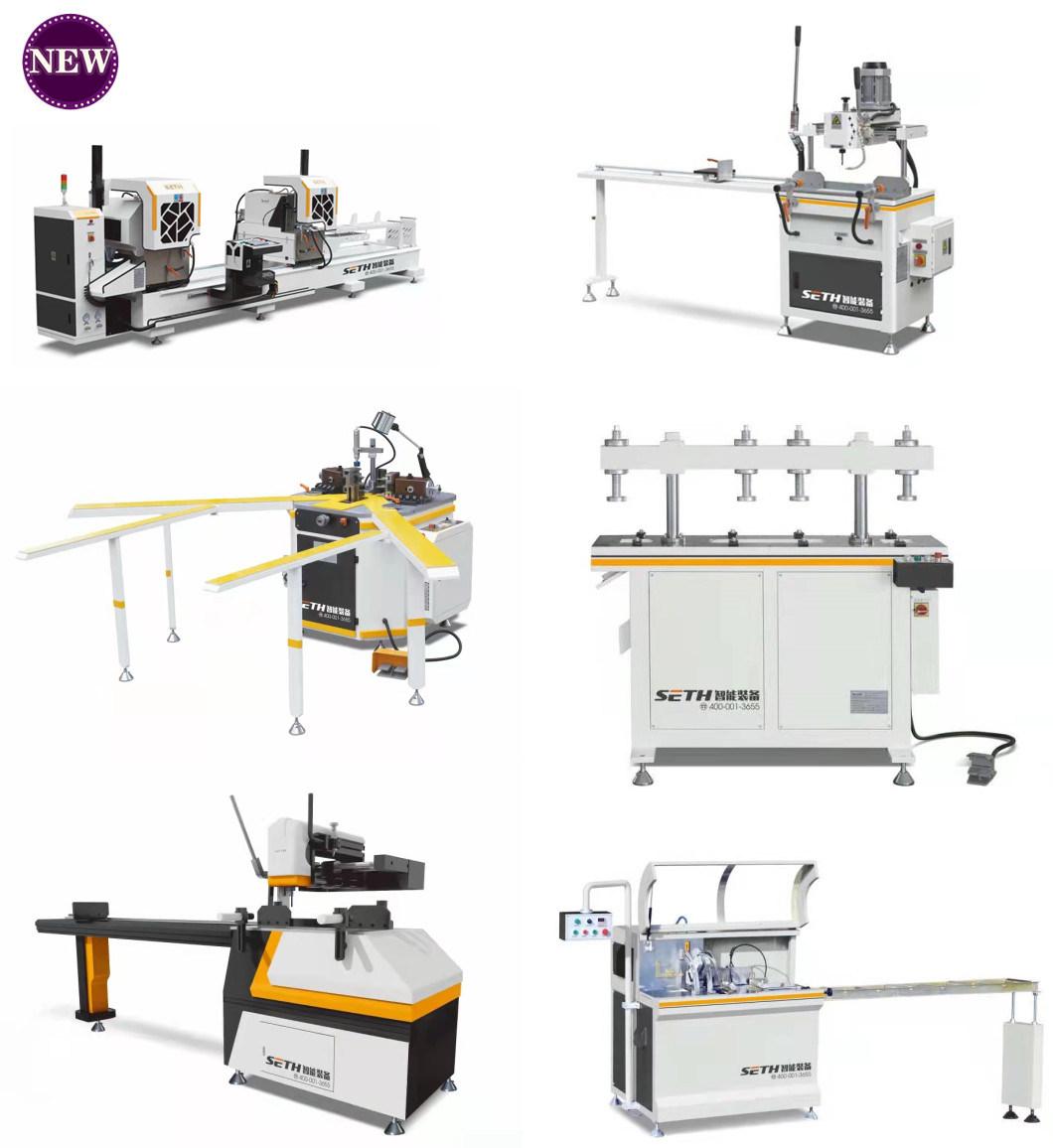

4.Hot products



5.Our company Join hands with SETH lead to IntelligenceJinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.

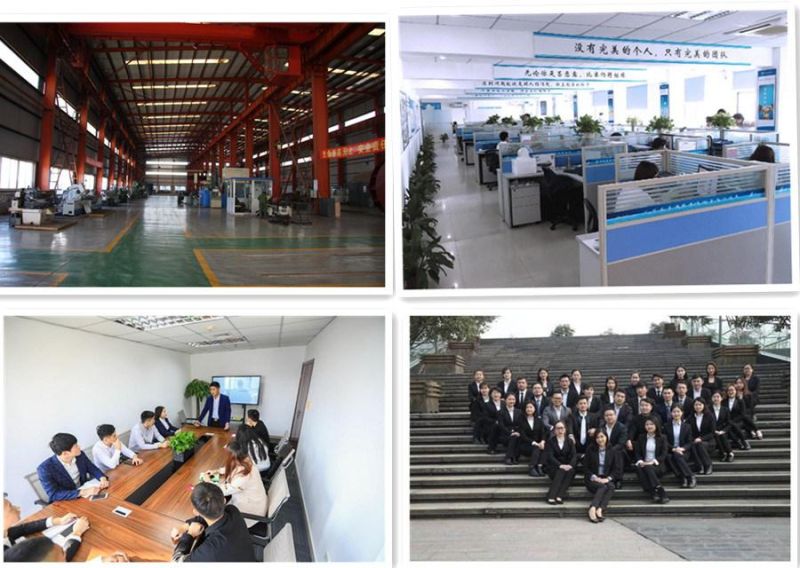

The company has all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize the design of equipment, processing, assembly, test one-stop flow operation, to ensure the excellent quality of equipment.
our main products including aluminum&uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle, Please join hands with SETH to lead intelligence.

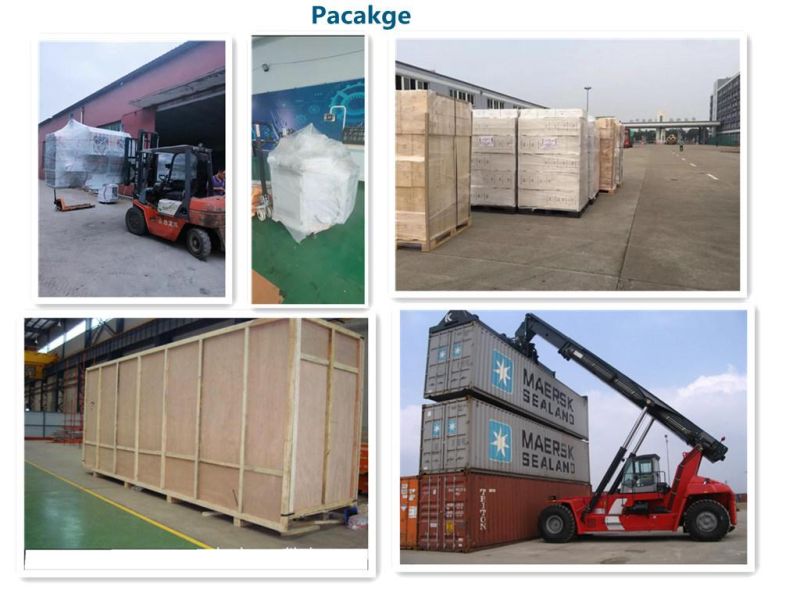

6.Package and delivery of our Aluminum uPVC window &door machines
7.Certificates

8.FAQ
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company in china.

Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine, CNC milling machine, aluminum punching machine, end milling machine, copy router and corner connector saw, etc; Wood window machines: wood saw, wood window frame machine, vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's  after-service?
A: 1option:
     we have engineers to install the machines and train your workers.
    Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,          subsidy USD70 per day.
   2 option:
    On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
Are you interested in being our distributor?
Just do it . Contact with us now.
