• Model NO.：830 glazed tile roll forming machine
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• Material：Coloured Glaze
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：6800*1500*1500
• Trademark：KXD
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Technical parameters:Lastest arrival color glazed tile forming machineforming machine2Main motor power4kw

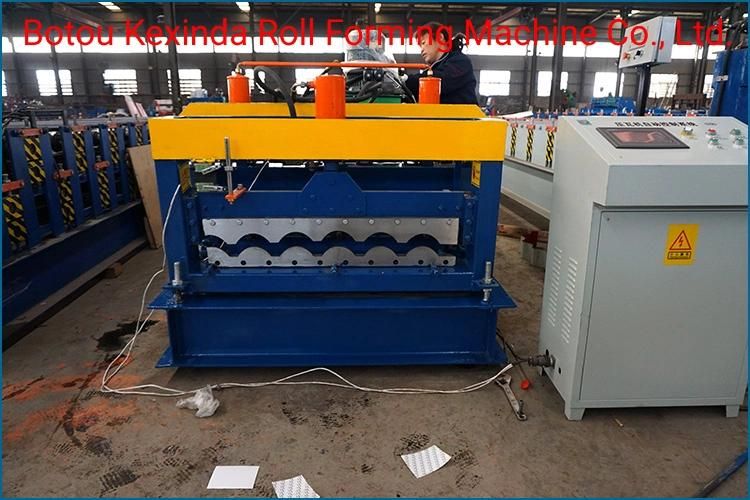

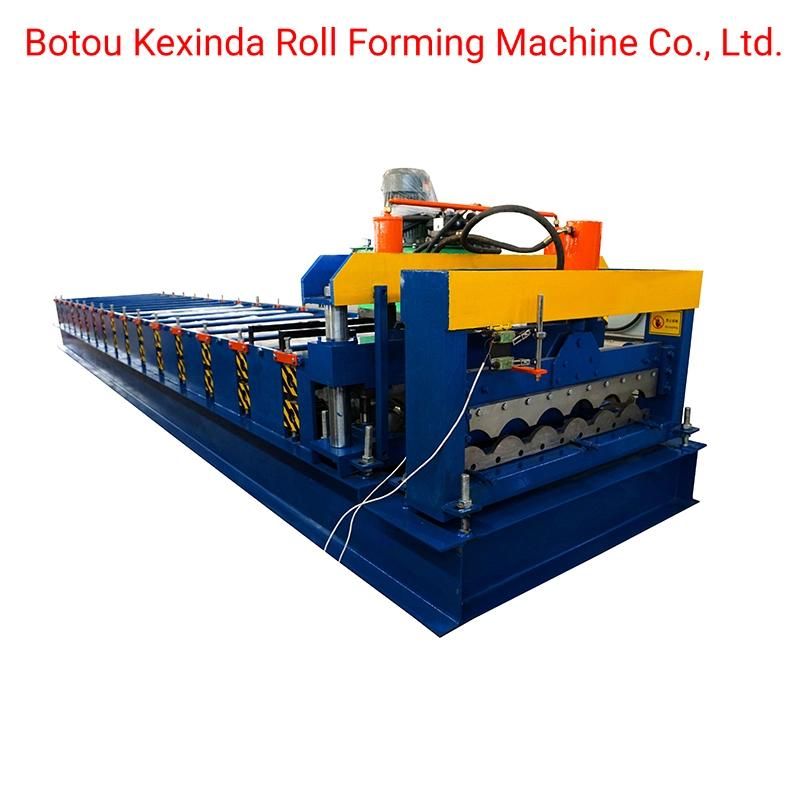

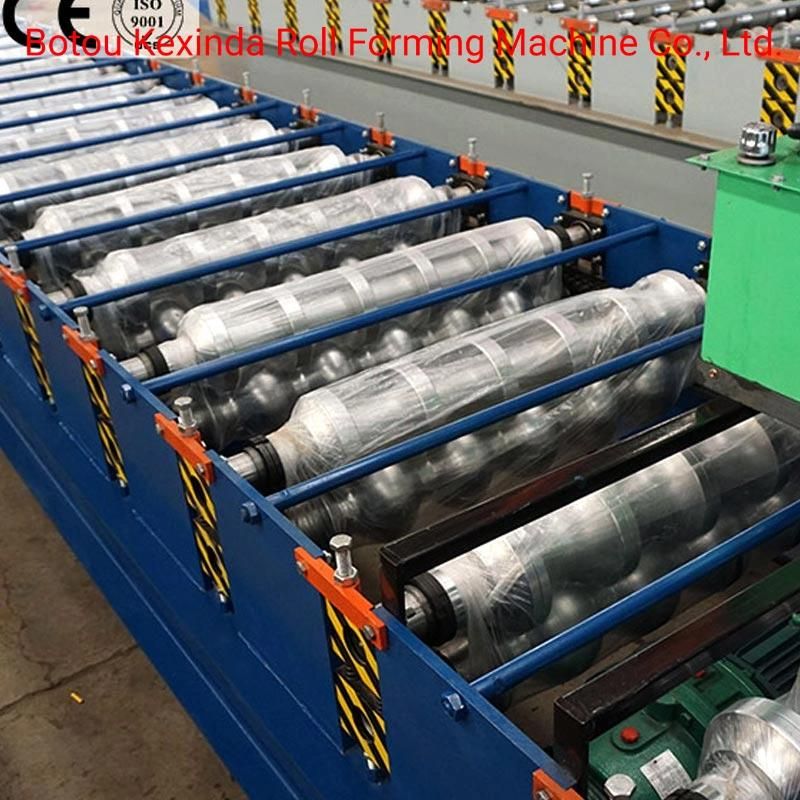

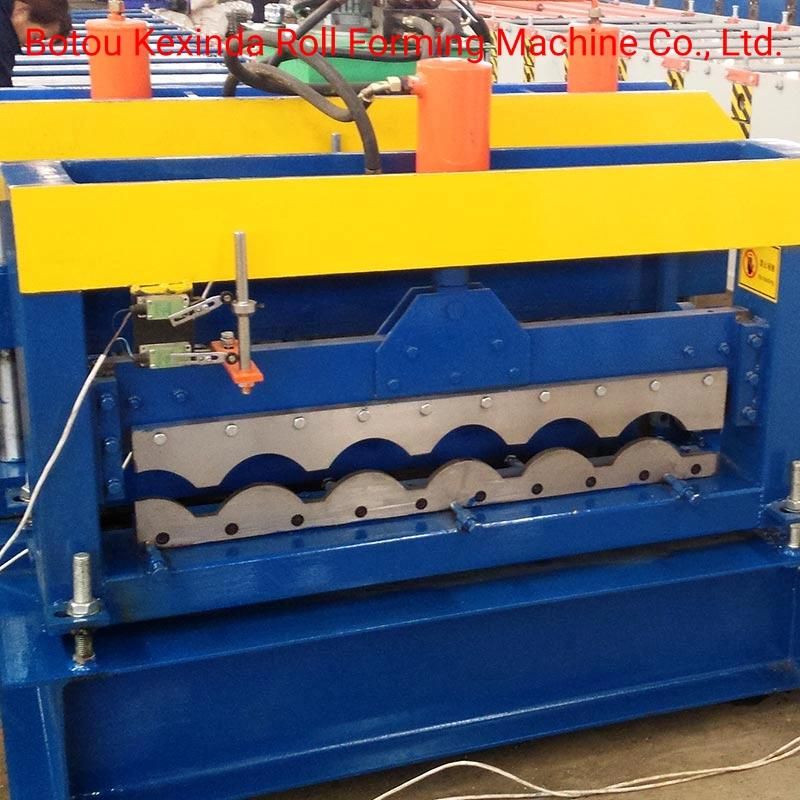

3Hydraulic motor power3kw4Hydraulic Pressure18-20MPa5Voltage380V /3phase/ 50 HZ (or as your requirement)6Control SystemPLC Delta Inverter7Main Frame300mm H-Beam8Backboard Thickness14mm9Chain Sizedoouble 0.6'10Feeding Materialcolor steel coils11Feeding Thickness0.3-0.8mm12Feeding Widthas customer request13Effective widthas the drawing14Productivity1-4m/min15Roll Station1616Roller Diameter80mm17 Roller material 45# steel Rolling chromium thickness:0.05 mm18 Cutter materialCr12 , quenched19Cr-Plating Size0.05mm20Overall Size8000×1200×1100mm21Total Weight5.5T  3.the picture of the  Glazed Tile Roll Forming Machine China
















4.Packaging & Shipping
Main machine is nude, the computer control box is packed with wooden fram


5.FAQ

1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
