Full Automatic Elbow Bending Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Rectangular Drainage Pipe
- Transmission Method：Hydraulic Pressure
Base Info
- Model NO.：97*63
- Productivity：10-15m,Min
- Weight：About 1.5 T
- Main Motor Power：3kw
- Voltage：380V 50Hz 3phase
- Transport Package：Main Machine with Simple Film in The Container
- Specification：2.0*1.35*1.7m
- Trademark：KXD
- Origin：China
- HS Code：8455221000
- Production Capacity：300 Sets,Year
Description
Main parameters of Rectangular Drainage Pipe Roll Forming Machine 1 Suitable to process Color steel plate, galvanized sheet,aluminum coils and etc. 2 Size of Rectangular Drainage Pipe 97*63mm or as customer request 3 Roller station 16 rows 4 Feeding width of material 330mm 4 Thickness of feeding material 0.4-0.7mm 5 Productivity 10-15m/min 6 Rollers' material 45# steel,Hot treatment hardness HRC55º-57º 7 Diameter of shaft 66mm 8 Weight About 4.0 T 9 Size 8.0*1.35*1.4m 10 Voltage 380V 50Hz 3Phase 11 Main motor power 5.5kw 12 Hydraulic cutting power 4 kw 13 Mould cutting material Cr12 steel
treatment hardness HRC60º-62º
2. Processing technique and deployment

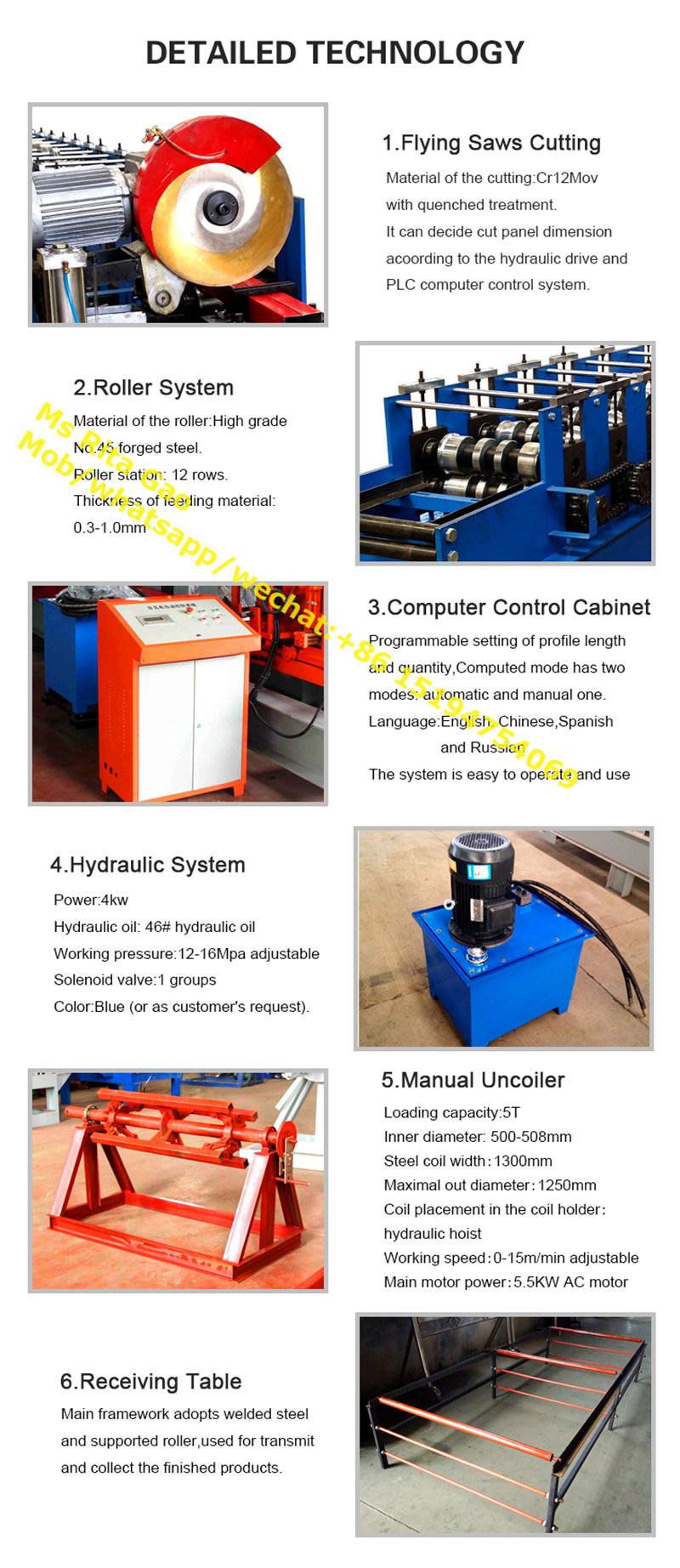

Manual decoiler-Roll forming machine-PLC system-Hydraulic system-Post cut-Stacking
