• Model NO.：860
• Condition：New
• Customized：Customized
• Usage：Roof, Wall, Floor, Metal Roofing Tile Making Machine
• Transmission Method：Hydraulic Pressure
• Effective：Easy Operation
• Motor Power：5.5kw
• Forming Station：13 Stations
• Medium Plate Thickness：14mm
• Main Frame：300h
• Diameter of Roller：75mm
• PLC：Delta Brand
• Type：Roll Forming Machine
• Method：Roll Forming Machine
• Transport Package：Standard Export Package, Water-Proof Package
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20sets,Per Month

Basic Info.

Model NO. 860 Condition New Customized Customized Usage Roof, Wall, Floor, Metal Roofing Tile Making Machine Transmission Method Hydraulic Pressure Effective Easy Operation Motor Power 5.5kw Forming Station 13 Stations Medium Plate Thickness 14mm Main Frame 300h Diameter of Roller 75mm PLC Delta Brand Type Roll Forming Machine Method Roll Forming Machine Transport Package Standard Export Package, Water-Proof Package Specification CE, SGS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 20sets/Per Month

Product Description

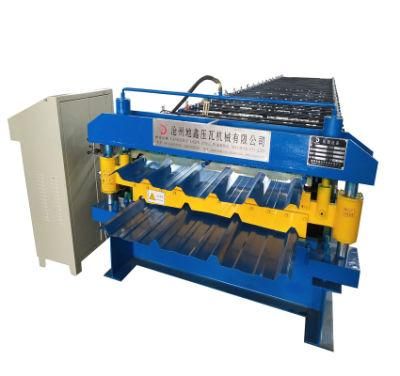

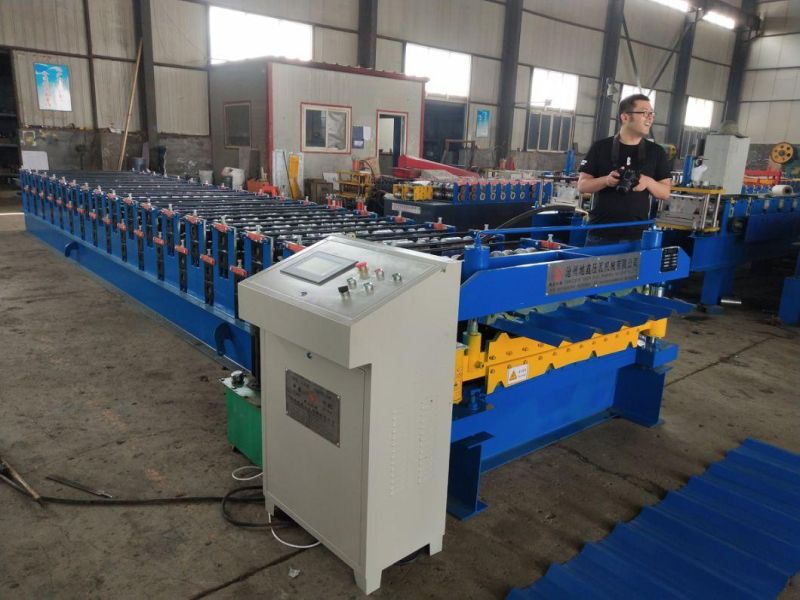

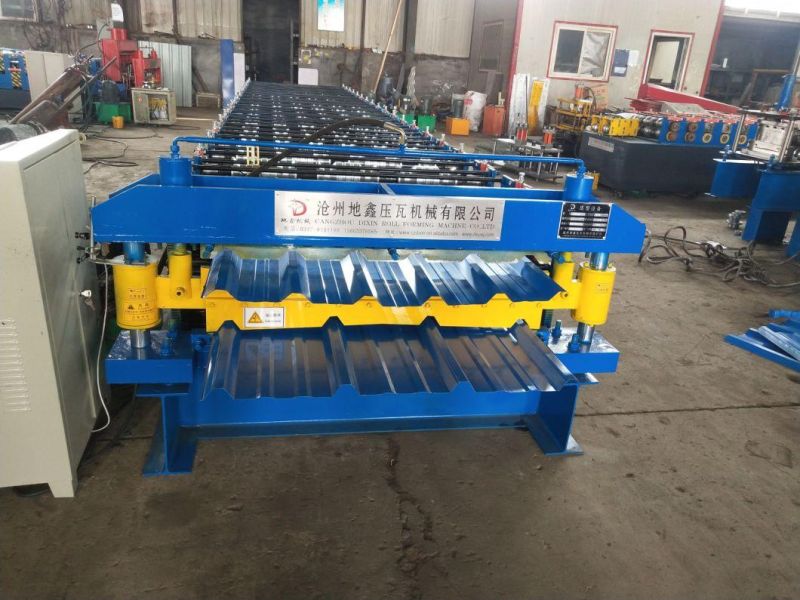

Color steel double layer glazed tile roofing panel roof tile different profile cold roll forming making machine production line

1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 860mm
(4) Feeding width: 1000mm
(5) Main motor power: 5.5 kw
(6) Pump power: 4 kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 14mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 50Hz
(14) 0veral sized: 6000mm*1500mm*1500mm
(15)Total weight: 3 tons





2. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking

3. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

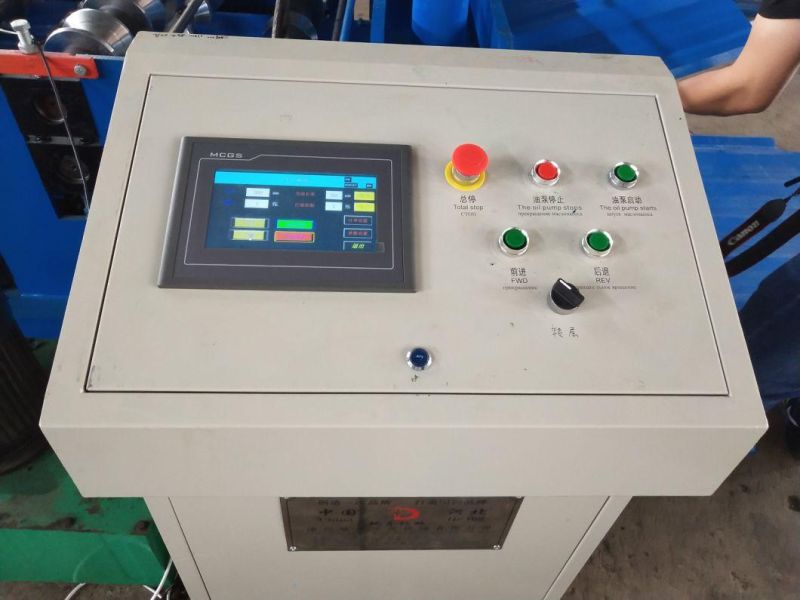

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts

4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

5. Warranty
24 months, and lifelong technical support service

6. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.

7. Package
Standard export package, water-proof package, covered with plastic film

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

If you are interested in the machine,welcome to contact me directly:
