Professional Production Cold Steel Forming 1000 Floor Deck Roll Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty:1 Year
  • Tile Type:Galvanized Steel

Base Info

  • Model NO.:NM1170
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Usage:Floor
  • Transmission Method:Electric
  • Product Name:1000 Floor Deck Roll Forming Machine
  • Raw Material:Gi Steel, PPGI Steel
  • Thickness Range:0.8-1.5mm
  • Machine Power:22kw+5.5kw
  • Work Speed:10-15m,Min
  • Machine Weight:12 Tons
  • Transport Package:Plastic Film & Steel Wire Fixed
  • Specification:12500mm*1500mm*1500mm(L*W*H)
  • Trademark:NEXUS MACHINERY
  • Origin:Cangzhou, China
  • HS Code:8455221000
  • Production Capacity:30 Sets , Month
  • Package size per unit product:850.00cm * 120.00cm * 160.00cm
  • Gross weight per unit product:8000.000kg

Description

No.Typespecification1Row MaterialTypeColor steel plate, galvanized plate, aluminum plateFeeding width1220mmThickness0.8-1.2 mm Effiect width1000mm2Main bodyForming roller station26 StationsDiameter of shaft90mmShaft material40Cr, Numerical Control Machining To HRC28-32, Then Polishing and Hard PlatingRoller materialGCr15# Steel , Heat Treatment to HRC58-60,Then Polishing and Hard Platingframe400mm H SteelFrame thickenss20mmWorking speed8-12 m/minSize (L*W*H)About 15200*1850*1510mmWeightAbout 16.5 tons3PowerMotor power11KW+11KWHydraulic power5.5KWVoltage380V 50Hz 3phases or CustomerizationDrving WayBy Chain4PLC Contro SystemLanguageEnglish and ChineseBrand Of PLCDelta brand (Touch Screen )OperationManual and Automatic (Two Type)TransducerDelta brand5Cutting DeviceCutting TypeHydraulic CuttingBlade of CuttingCr12 , quenching treatmentCutting Tolerance+ -1mm
4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

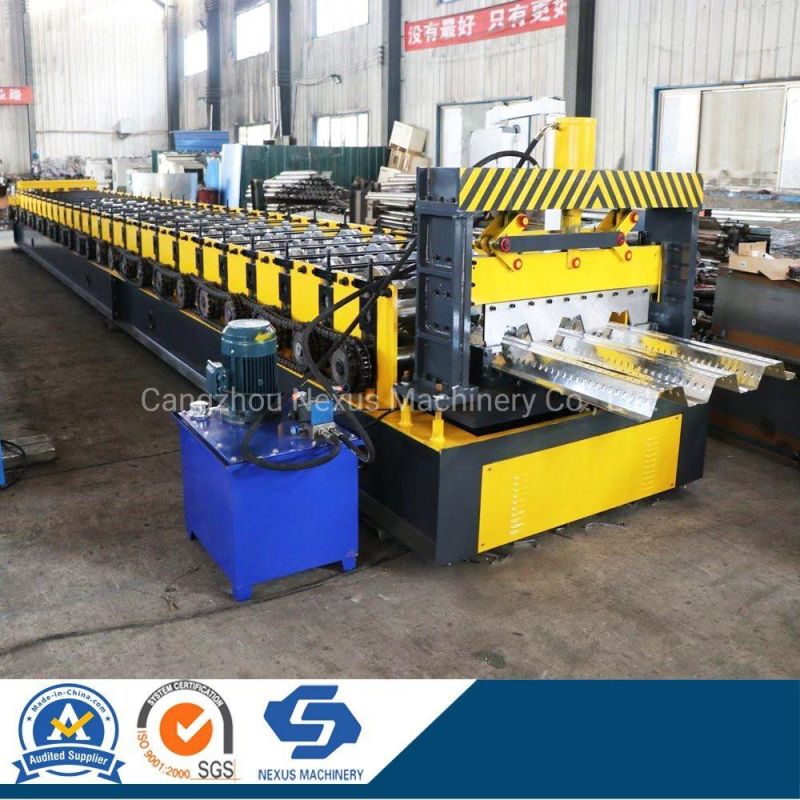

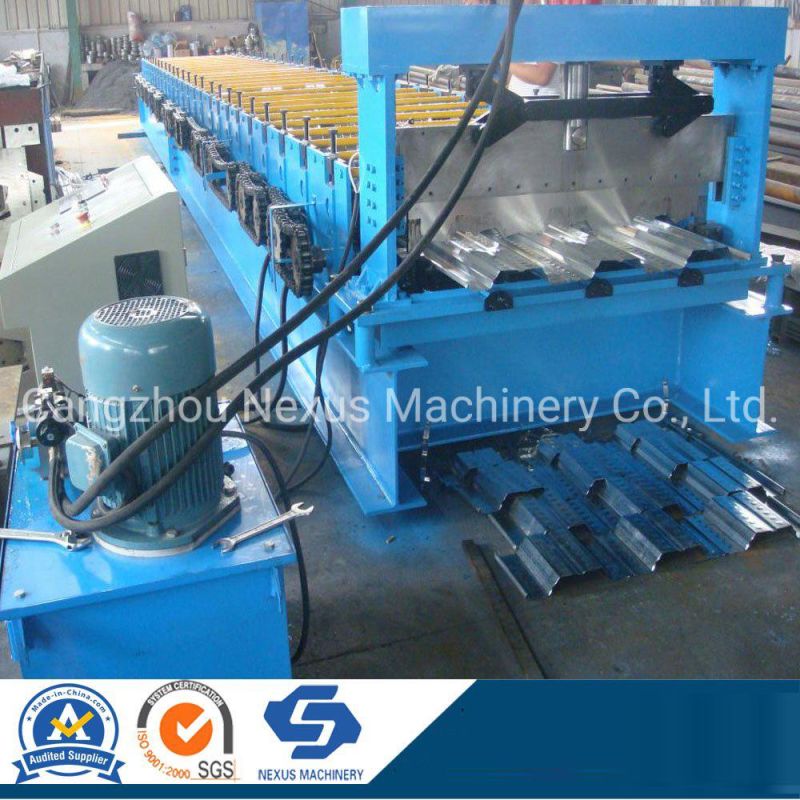

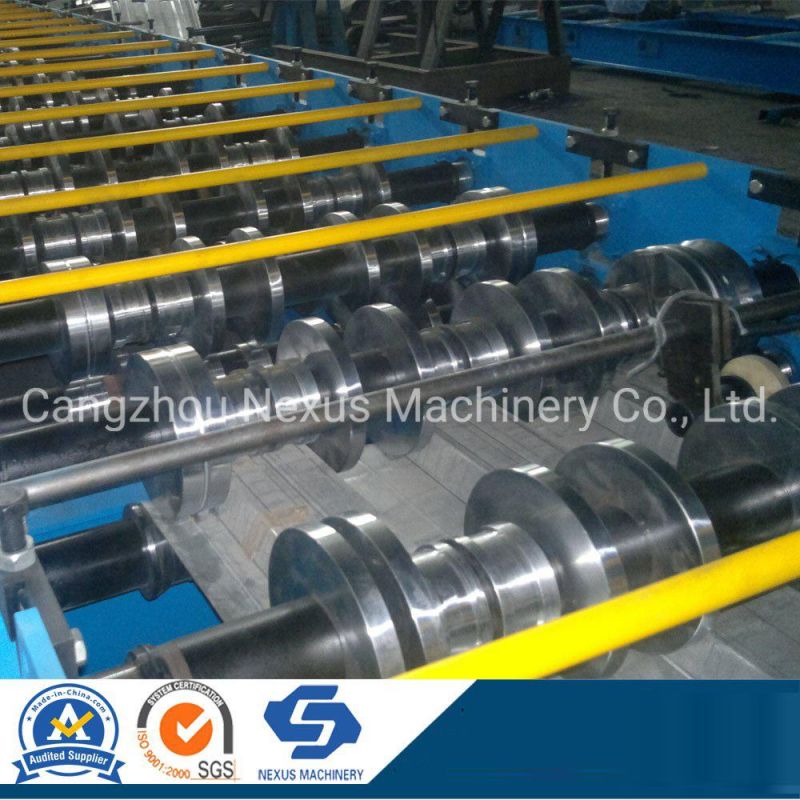

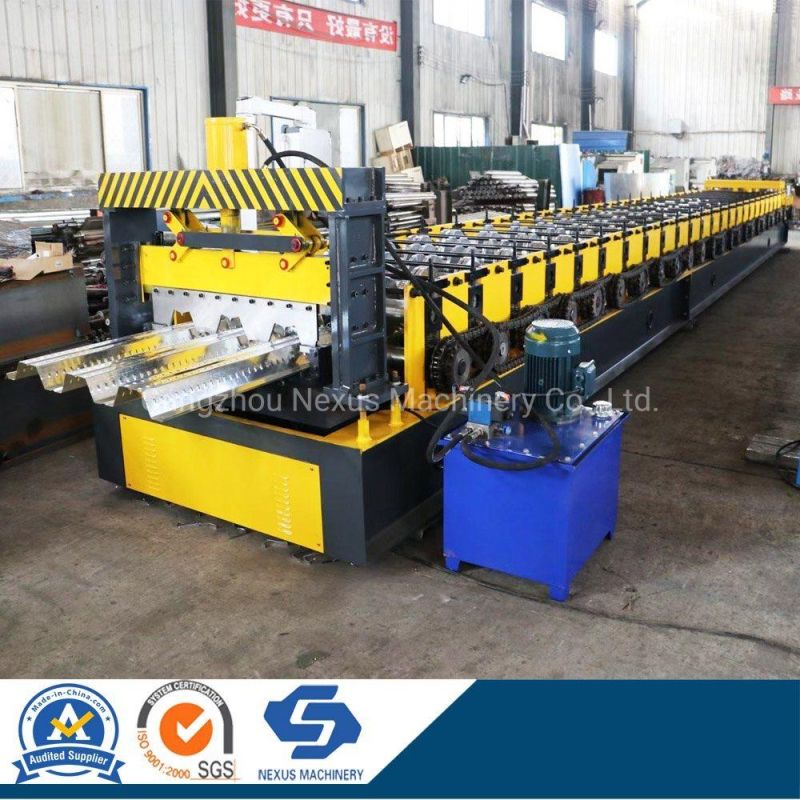

5. Photos of Professional Production Cold Steel Forming 1000 Floor Deck Roll Forming Machine for Reference:
Professional Production Cold Steel Forming 1000 Floor Deck Roll Forming MachineProfessional Production Cold Steel Forming 1000 Floor Deck Roll Forming MachineProfessional Production Cold Steel Forming 1000 Floor Deck Roll Forming Machine
Professional Production Cold Steel Forming 1000 Floor Deck Roll Forming Machine
Professional Production Cold Steel Forming 1000 Floor Deck Roll Forming Machine
7. Why Choose US?
1. More than 20 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
