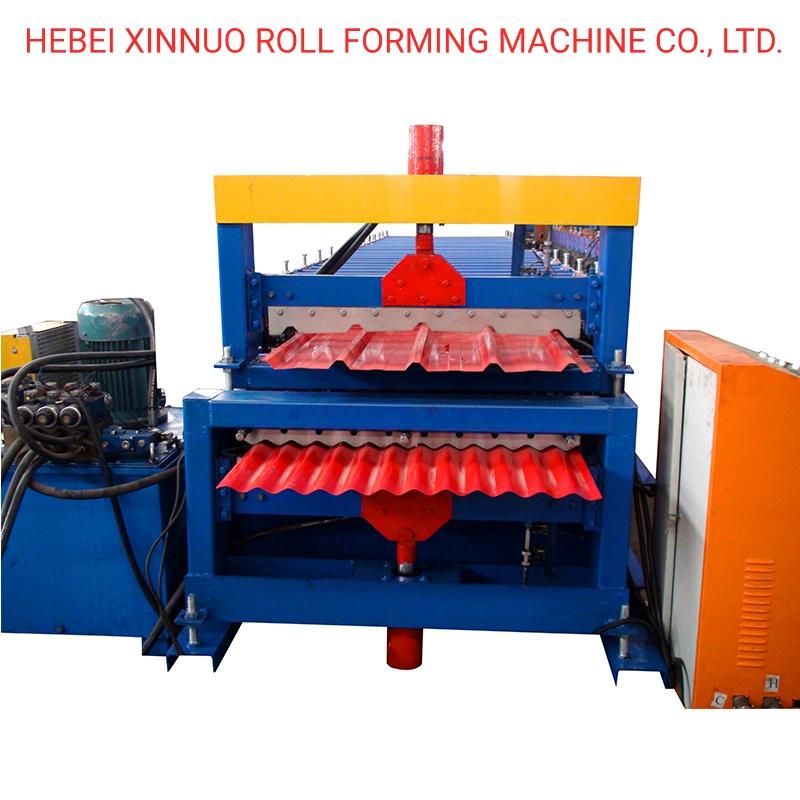

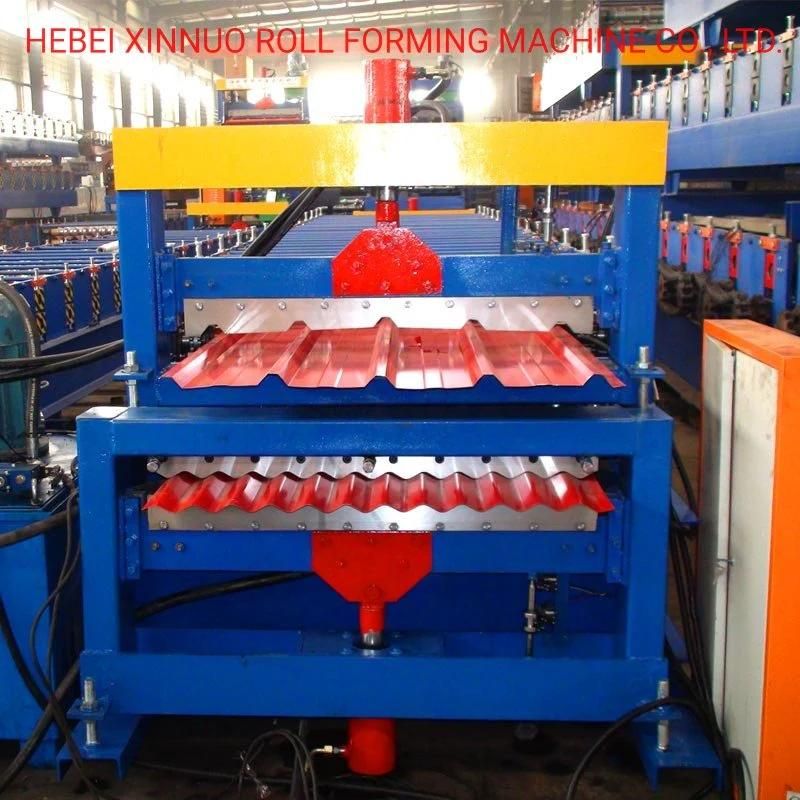

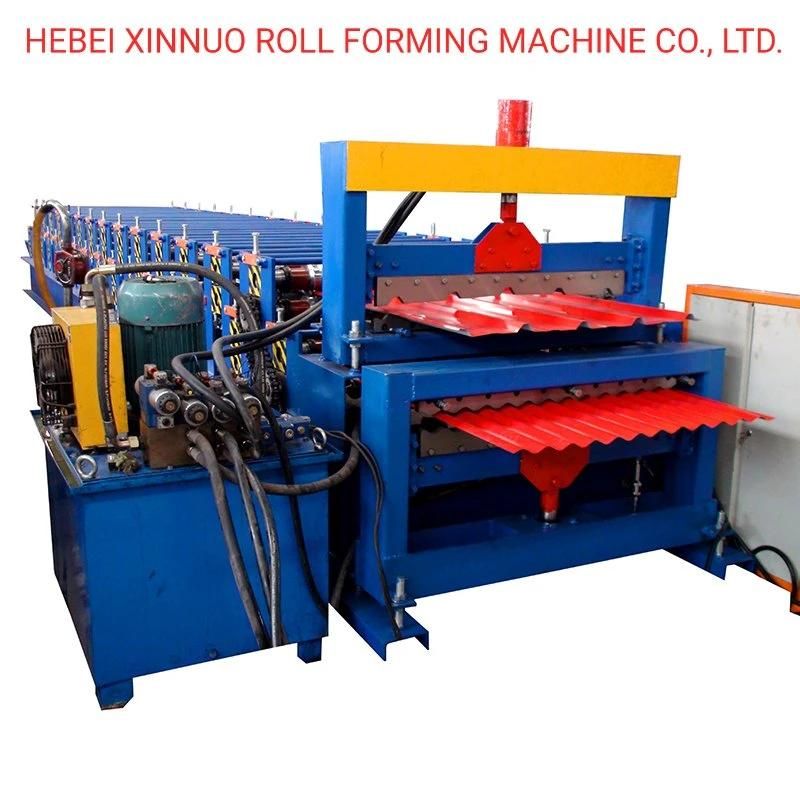

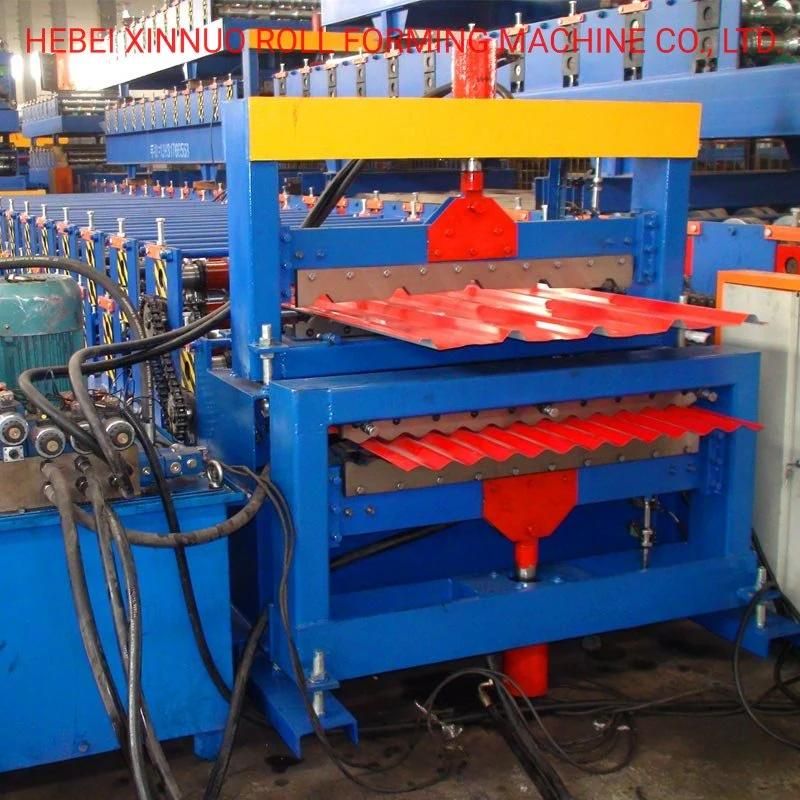

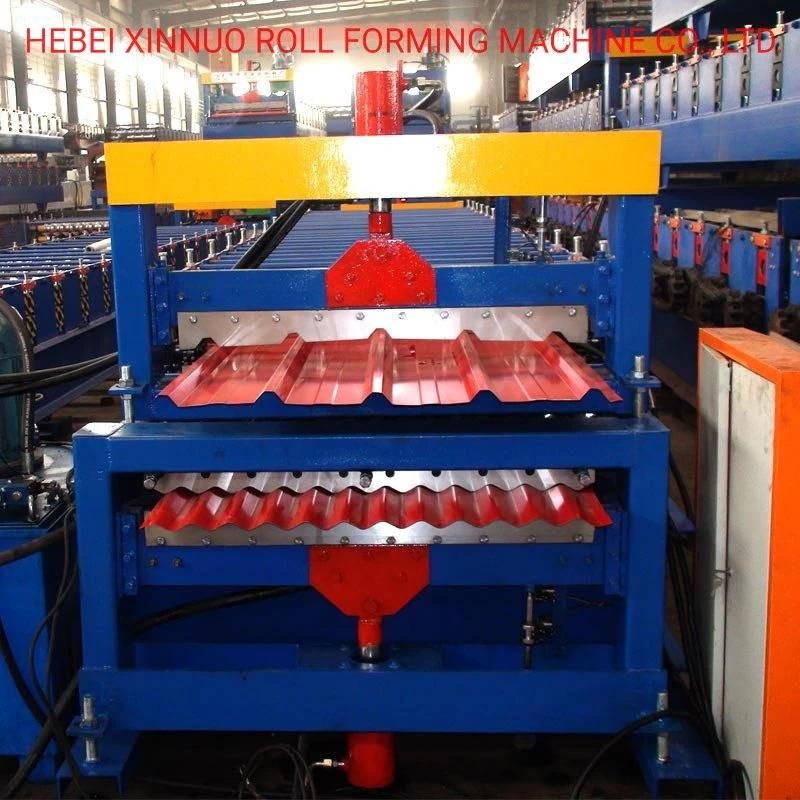

PCB Milling Machines Double Layer Zink Corrugation Sheet Rolling Forming Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof
  • Transmission Method：Electric

Base Info

  • Model NO.：840+850
  • Color：as Required
  • Raw Material：Color Sheet
  • Warranty：12 Months
  • Weight：5.6t
  • Control：PLC
  • Raw Material Thickness：0.3-0.8mm
  • Transport Package：Main Machine Is Nude
  • Specification：7.5*1.5*1.5m
  • Trademark：kexinda
  • Origin：China-Mainland
  • Production Capacity：1 Set Per Month

Description

Main parameter of 840+850 double layer machine1Suitable to processSteel,Color steel plate,GI,Aluminium sheet...2Width of the plate1000mm3Thickness of the plate0.3-0.8mm4De-coiler Manual one, can load 5 tons raw material5Rollers for forming Up layer: 10 rows
Down layer: 11 rows6Diameter of the roller70mm7Rolling materialCarbon Steel 45#8Main motor power4kw9Productivity8-12m/min10Cutting methodHydraulic mould cutting 11Material of the cutting bladeCr1212Hydraulic cutting power 3kw13Processing precisionWithin 1.00mm14Control systemDelta PLC control15Side panel of machine14mm16Main structure of the machine300 H steel17Weight About 5.5T18Dimensions7.5*1.5*1.50m19Voltage380V 50Hz 3phases(changeable as needs)20Certificate CE/ISO/TUV

OUR ADVANTAGE

 Our machineInfluence of the machine
Main forming
machine body		High strength H350 or H400 steel.
machine through milling machine after
welding		Sturdy and durable,
ensure the plate standard
Material of the
roller		High grade No.45 forged steelEnsure the forming effect of
the panel and the use age will
be longer,the surface of the panel
Material of the
cutting		GCr12 steel with quenched treatmentCutting is out of shape not easily
and use age will be longer,the panel
size precision
Material of the
active shaft		High grade solid No.45 carbon steel,
Shaft diameter is 72mm. 		Improve the integrated mechanic
feature of the shaft and keep product
standard
Control systemPLC control system,some elements are
imported from Japan and Germany		Machine become more accurate and
more stable
