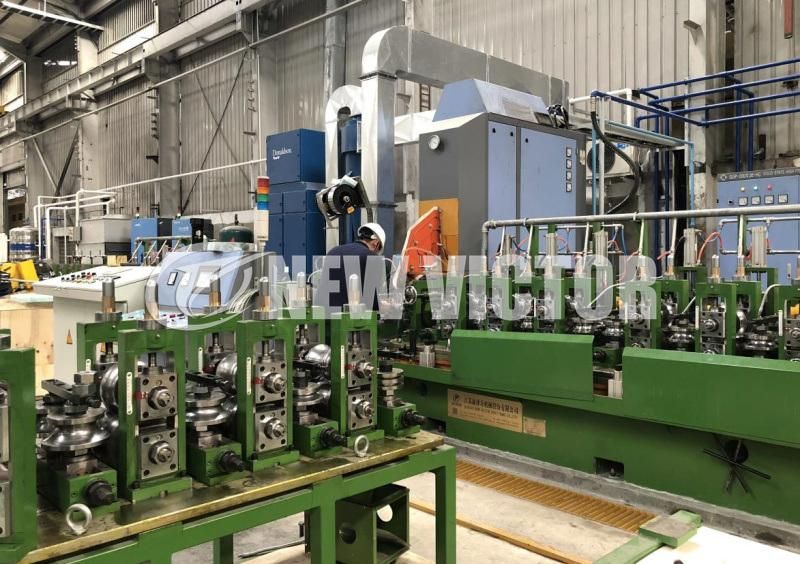

Mild Steel Pipe Production Line with Cold Flying Saw High Speed Cold Roll Forming Mill
JIANGSU NEW VICTOR INDUSTRIAL CO., LTD.- Pipe Material：Carbon Steel
- Condition：New
- Customized：Customized
- Application：Industry
- Type：High Frequency Weld Pipe Mill Line
- Usage：Carbon Steel Pipe Hf Welded Making
Base Info
- Model NO.：VZH-63
- Cutting Method：Cold or Hot Flying Saw
- Welding Method：Solid State High Frequency Welder
- Control System：PLC (Imported Brand)
- Certification：CE, ISO, SGS
- After Warranty Service：Video Technical Support, Online Support etc
- Round Pipe Diameter：12 mm to 273 mm
- Round Pipe Thickness：0.2mm~12mm
- Square /Rectangular Size：8*8 mm to 200*200 mm
- Square /Rectangular Thickness：0.25 mm to 11 mm
- Advantage Option：Roller Quick Change System, 20 Minutes
- Usage Life：Over 30 Years
- Trade Mark：New Victor
- Transport Package：Sea Worthy Packing
- Specification：whole production line
- Trademark：NEW VICTOR
- Origin：China
- HS Code：85152191
- Production Capacity：200,Year
Description
90×90 ~ 200×200
120×60 ~ 260×130
ROLLER QUICK CHANGE SYSTEM
change roller in 10 minutes, resume production in 30 minutes
when changing different sizes, the middle stands with universal coupling system move backwards and release automatically from the upper and lower horizontal shafts, which is driven by motor or hydraulic system.
For small and middle size machines, lift the whole platform with horizontal & vertical stands and rollers away from the machine base, then lift another same platform with the required pipe roller installed off-line to the machine base, the middle stands with universal coupling system move forward and automatically combine the upper and lower horizontal shafts, driven by motor or hydraulic system.
For big size machines, the upper covers of horizontal stands are designed openable from side, to lift out the shafts with rollers and then lift in those shafts with required rollers installed off-line. Then the opened cover is closed and the middle stands with universal coupling system move forward and automatically combine the upper and lower horizontal shafts, driven by motor or hydraulic system.
