Qt8-15 Automatic Multi-Function Solid Brick Block Macking Machine

Qingdao HF Machinery Co., Ltd.
  • Certification：CE, ISO, SGS
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock
  • Capacity：1440-1920PCS Per Hour
  • Warranty：1 Year

Base Info

  • Model NO.：Qt8-15
  • Pallet Size：950*900mm
  • Host Machine Weiht：9700kg
  • Vibration Form：Platform Vibration
  • Brick Raw Material：Cement,Sand,Crush,Concrete,etc
  • Cycle Time：15-20s
  • Color：Customizable
  • Transport Package：Standard Export Packing
  • Specification：8300*1860*3000mm
  • Trademark：HF
  • Origin：Shandong, China (Mainland)
  • HS Code：8474809090
  • Production Capacity：100sets,Month

Description


Main Technical Specifications

Overall Dimension8300x1860x3000mm
Rated pressure21Mpa
Main vibration formPlatform vibration
Cycle Time15-25 seconds
Vibrating Frequency2800-4500 rolls/minute
Motors Power55.5 KW
Pallet Size950x900mm
Raw Materialscrushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Productsconcrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fieldswidely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

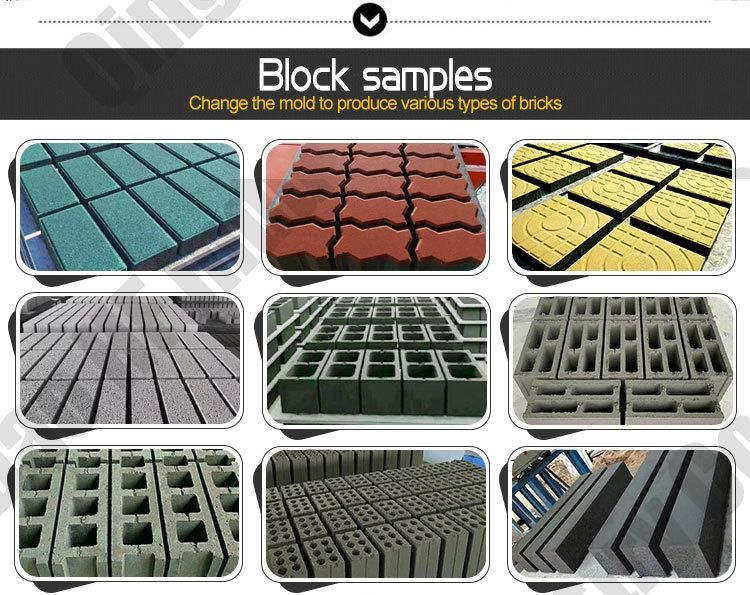

Block Capacity and Samples
Qt8-15 Automatic Multi-Function Solid Brick Block Macking Machine
Qt8-15 Automatic Multi-Function Solid Brick Block Macking Machine

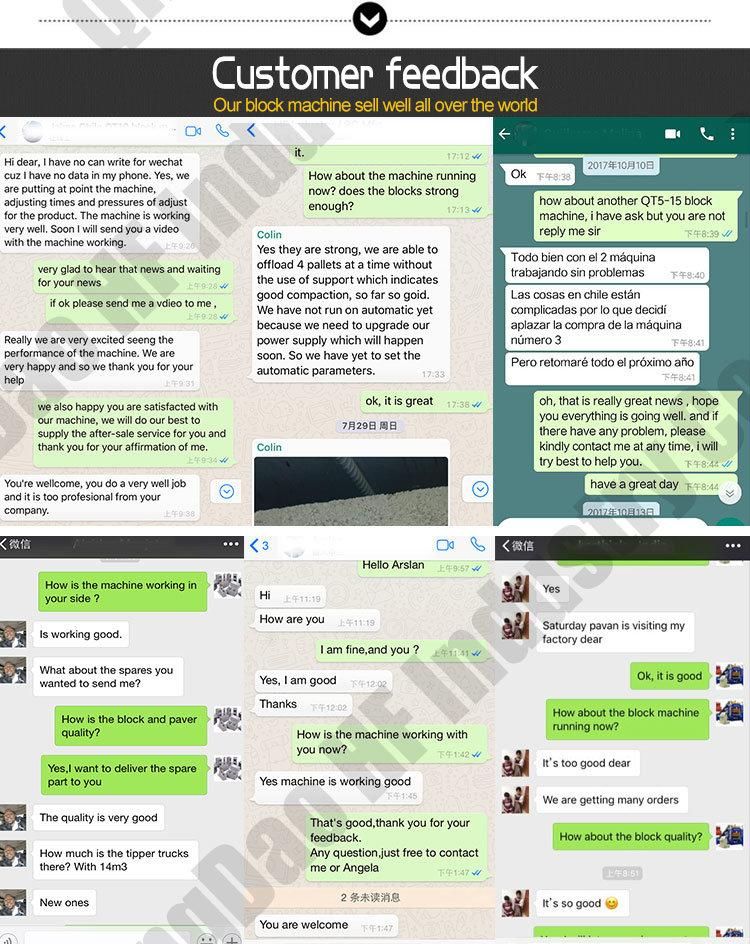

Our Customer
Qt8-15 Automatic Multi-Function Solid Brick Block Macking Machine
Qt8-15 Automatic Multi-Function Solid Brick Block Macking Machine

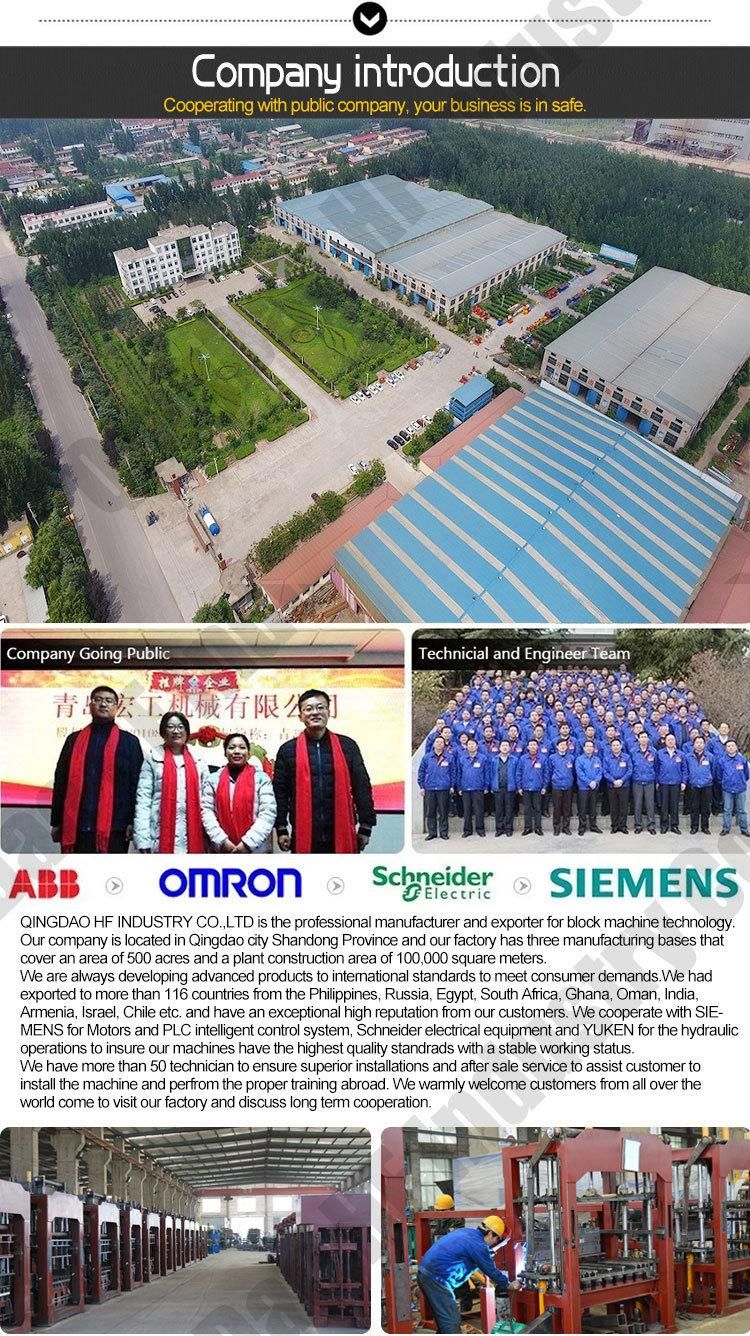

Our Company
Qt8-15 Automatic Multi-Function Solid Brick Block Macking Machine

Qt8-15 Automatic Multi-Function Solid Brick Block Macking Machine
