Qt4-25 Hydraulic Cement Concrete Block Making Machine Turkey Hollow Bricks Machine
Linyi Chuangyun Import & Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
- Products Available：Hollow Blocks, Paving Stones, Kerbstones, Hourdis
- Shaping Cycle：20-25 Seconds
Base Info
- Model NO.：QT4-25
- Material Feeding：Automatic
- Mixer：Jq500
- Capacity for 240*115*53mm Brick：21-26PCS , Mould
- Machine Weight：3t
- Pallet Size：850*550mm
- Shift Capacity：70m3
- Rated Power：21kn
- Transport Package：Nude Package in 20FT Container
- Specification：235 steel for machine frame
- Trademark：CYUN
- Origin：China
- HS Code：8474802000
- Production Capacity：5760-28800PCS , Year
Description
Note: total power is 28.35KW, Electricity must be 3 phase, 50/60HZ, 220/380/440V
B:Photos and Working Video of QT4-24 concrete block making machine are available
C: Worker Numbers : 5-6 Workers
Two Workers to load material into mixer
One Worker to operate block machine
One Worker to load pallet into pallet box of block machine
One or Two Workers to carry fresh blocks to curing sites.
D: Factory Area for QT4-25 brick making line: 1000-1500M2
Shelter for Machines: 60M2 (6*10mm)
Products
QT4-25 automatic cement block machine can produce different sizes of concrete hollow blocks, solid blocks, pavers, hourdis and curbstones by changing molds.

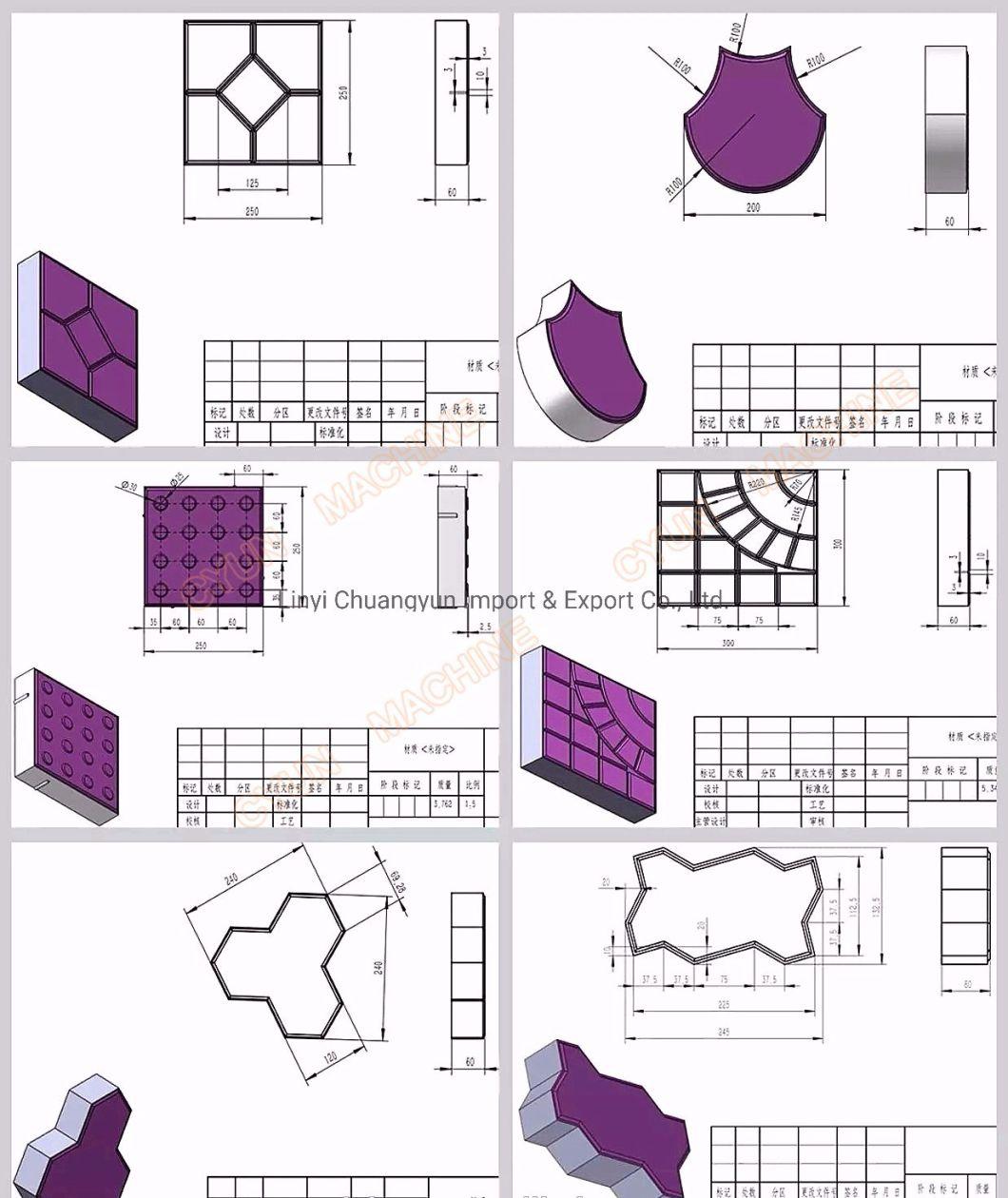

Customize available by customer drawings, irregular design of blocks molds with high accuracy.
Production Capacity of QT4-25 automatic vibrated cement concrete block brick making machine
Contact us for some designs of block and pavers for your reference
About us
B:Photos and Working Video of QT4-24 concrete block making machine are available
C: Worker Numbers : 5-6 Workers
Two Workers to load material into mixer
One Worker to operate block machine
One Worker to load pallet into pallet box of block machine
One or Two Workers to carry fresh blocks to curing sites.
D: Factory Area for QT4-25 brick making line: 1000-1500M2
Shelter for Machines: 60M2 (6*10mm)
Products
QT4-25 automatic cement block machine can produce different sizes of concrete hollow blocks, solid blocks, pavers, hourdis and curbstones by changing molds.
Customize available by customer drawings, irregular design of blocks molds with high accuracy.
Production Capacity of QT4-25 automatic vibrated cement concrete block brick making machine
| No. | Block Sizes | Production Capacity |
| 1 | 400*200*200mm Hollow /Solid Block | 4 / mould 4608 / 8hrs |
| 2 | 400*150*200mm Hollow /Solid Block | 5 / mould 5760 / 8hrs |
| 3 | 400*100*200mm Hollow /Solid Block | 7 / mould 8064 / 8hrs |
| 4 | 500*120*200mm Hourdis Block | 6 / mould 6912 / 8hrs |
| 5 | 200*100*60/80mm Holland Paver | 14/ mould 16128 / 8hrs |
| 6 | 200*160*60/80mm I Shaped Paver | 8/ mould 9216 / 8hrs |
| 7 | 225*112.5*60/80mm S shaped Paver | 12/ mould 13824 / 8hrs |
Contact us for some designs of block and pavers for your reference
