Building Material Making Machinery

Home > Product > Brick Making Machine

Qt8-15 Paving Block Making Machine

Shandong Shiyue Intelligent Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock
  • Product Name：Qt8-15 Automatic Block Making Machineqt8-15 Block
  • Pallet Size：950X900mm

Base Info

  • Model NO.：QT8-15
  • Color：Client Requirement
  • Vibration Frequency：2800-4500 ( R,Min)
  • Weight：9t
  • Block Type：Hollow Block,Solid Block,Paver,Curbstones,etc
  • Molding Cycle：15s
  • Vibration Type：Platform Vibration
  • Raw Material：Cement,Sand,etc
  • Power：37.2kw
  • Transport Package：Standard Export Package
  • Specification：8300x1860x3000mm
  • Trademark：SHIYUE
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：5000set,Year

Description

Technical Parameters of QT8-15 block machineOverall Dimension8300*1860*3000mmRated Pressure21MPaMain Vibration FormPlatform VibrationVibration Frequency2800~4500 ( r/min)Pallet Size950*900mmMolding cycle15-25 (s)Overall Power55.5KWVibration Force60KNTotal Mass12.5TDemolding methodHydraulicGeneral water consumption12T/DayFactory Area600m2Applied ProductsConcrete blocks, hollow/solid blocks, pavers,
 interlocking blocks , curbstone, colored pavers ,etc.Raw MaterialCrushed stone, sand , cement, dust, and fly ash,
gravel,slag, and other raw material , etc.
Capacity of QT8-15
Size(LxWxH)Picture Pcs/MouldPcs/ HrPcs/8hours
400X200X200 8192015360
400X100X200 15360028800
200X100X60 327680611440
240x115x53 421008080640

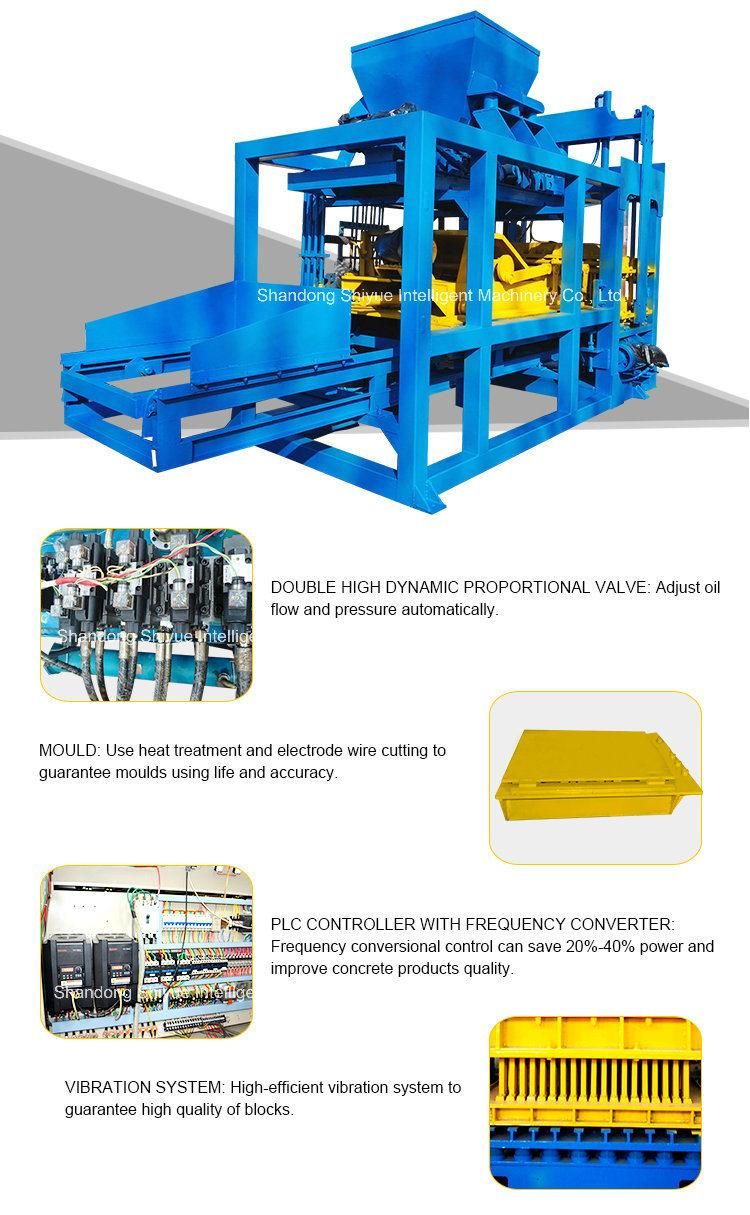

Product DetailQt8-15 Paving Block Making Machine

Qt8-15 Paving Block Making Machine

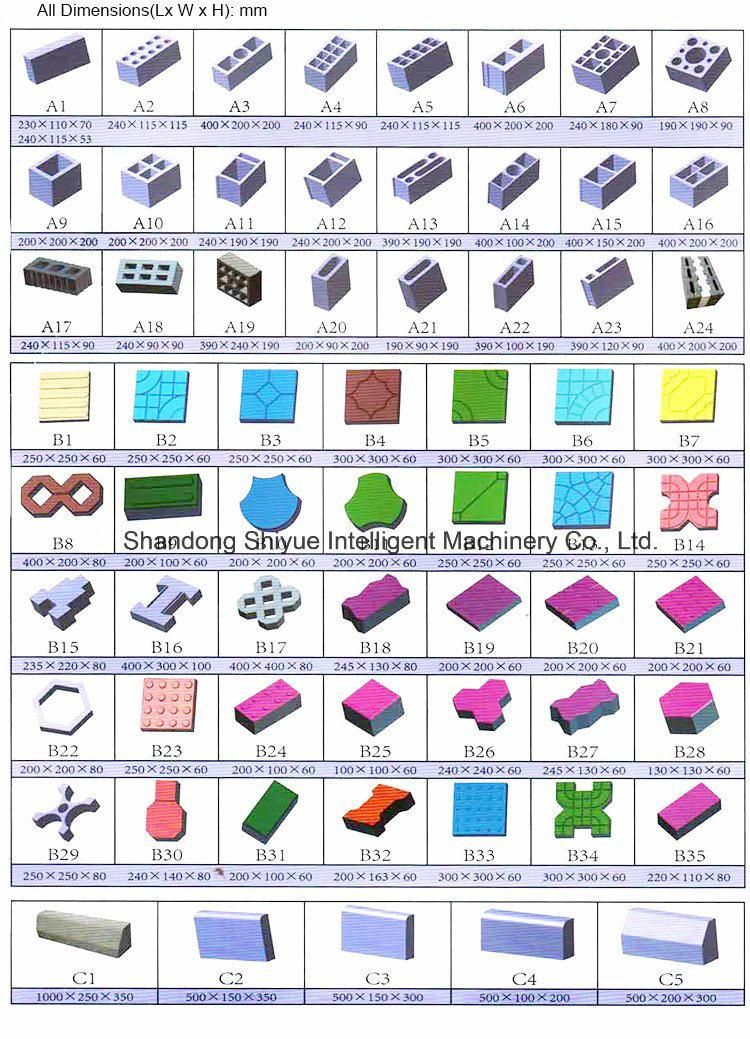

Block Sample
Qt8-15 Paving Block Making Machine
