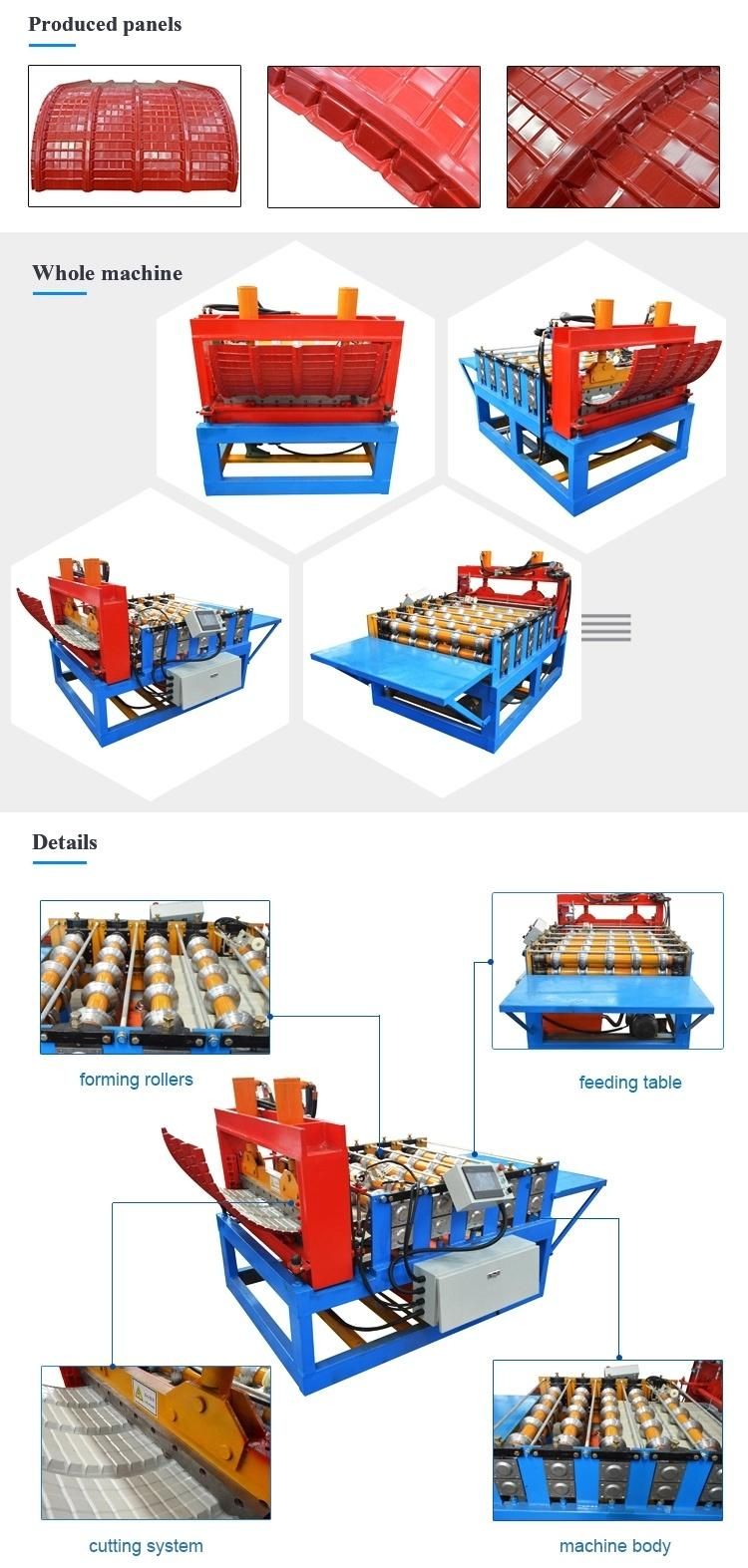

Roof Panel Curve Crimping Machine
Cangzhou Nexus Machinery Co., Ltd.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.8mm
- Warrenty：12 Months
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：2.6*1.6*1.2m(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description
Name
Metal Arch Roofing Sheet Crimping Panel Making Machine Roof panel Curved Machine
Suitable Material
Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range
0.3-0.8 mm
Coil Width Range
914, 1000, 1220 or 1250 mm.
According to your actual drawing.
Electric Power
380V, 50 Hz, 3 phase
or according to your need.
Dimension
About 2.6*1.6*1.2m(L*W*H), as per the drawing
Cutting
Automatically stop and cutting when it comes to the set length.
Length of the Sheet
You can set the length according to your need.
It is controlled by PLC
length accuracy: ±1mm.
FAQ:
1. How long the machine could be made?- Normally speaking, stacker machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
