• Transport Package：Simple Plastic Film Protection
• Specification：8.0*1.65*1.5M
• Trademark：Kexinda
• Origin：Hebei China
• Production Capacity：30 Sets Per Month

Basic Info.

Transport Package Simple Plastic Film Protection Specification 8.0*1.65*1.5M Trademark Kexinda Origin Hebei China Production Capacity 30 Sets Per Month

Product Description

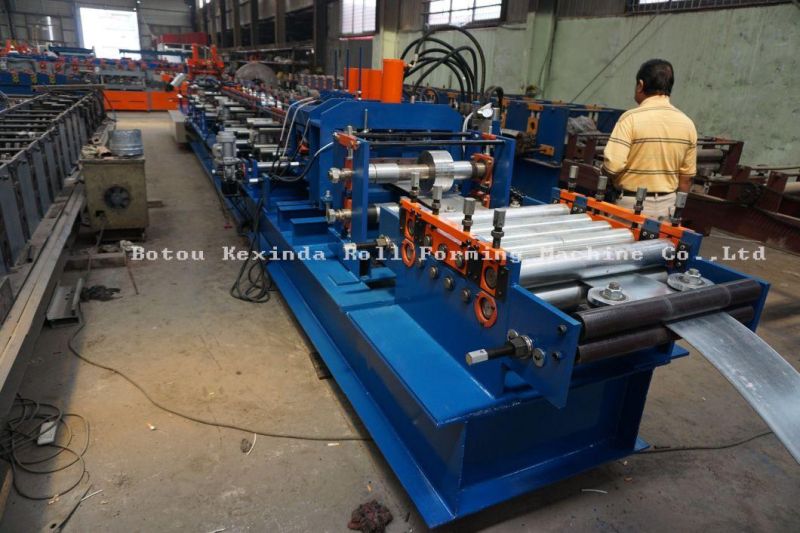

KEXINDA automatic c purlin roll forming machine with high quality



1. Technique parameters of the processing line

(1) Plate Material: Galvanized plate

(2) Thickness of the plate : 1.5-3.0mm

(3) Machine body : 400mm H steel

(3) Wall thickness of the main forming machine: 18mm steel plate

(4) Outside debugging to change sizes

(5) Transmission chain : 2''

(7) Reducer :11kw Xingxing Cycloid which works stably and no noise.

(8) Seam type semi-mat

(9) Roller material: 9 Cr-Si with quenched treatment 62-64°C

(10) Rollers: 12 steps for moldind  and  9 steps for leveling, 1 pair steps on the middle for adjusting machine height, 1 pair steps on the coil-output part for adjusting deviation and 1 step for straightening

(11)  4 steps side wheels on the coil-input part for avoiding coil-deviation

(12) Forming part adopts side wheel rotation forming to reduce friction between rollers and coil. Easy and fast debugging

(13) Diameter of active shaft: 80mm, 45# steel

(14) Hydraulic pump power: 5KW

(15)Total power:30KW

(16) PLC control systerm with inverter

(17) Dimensions of major structure:

7600mm(length)*1000mm(width)*1200mm(height)

(18) Woking Speed: 8-12m/min

(19) Usage: stairway and walkway



2: Working Process Flow:

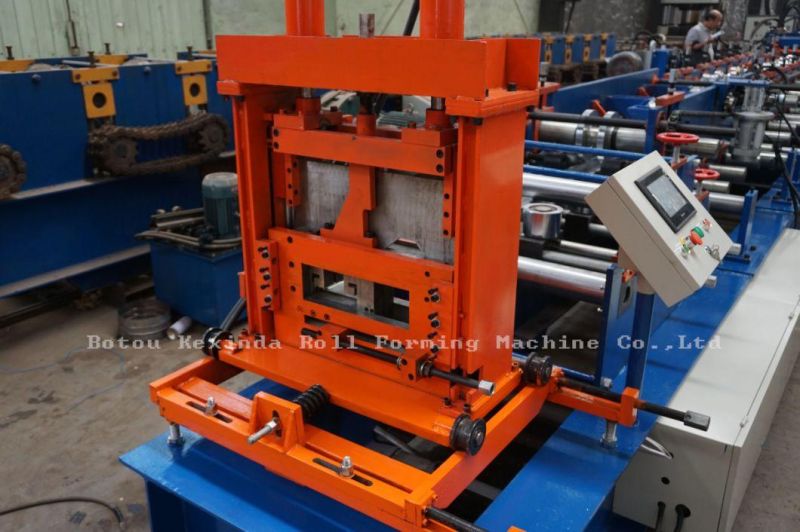

Manual Decoiler-Roll Forming Machine-PLC System-Hydraulic System-punching-Cutting--Formed Plate Collection Stack




FAQ:
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

If any questions,you can call me mobile phone at any times:0086-15532877018

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

Our service:

1:Engineers available to service machinery overseas.

2: Warranty: 12 months.

3:Technical guidance for free forever.
