Xinnuo Metal Sheet Door Frame Panel Forming Machinery
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- After-sales Service：Door to Door
- Warranty：One Year
- Tile Type：Colored Steel
- Certification：CE, ISO, as You Like
- Condition：New
- Customized：Customized
Base Info
- Model NO.：door frame machine
- Usage：Roof, Wall, Door Frame
- Transmission Method：Electric
- Color：as You Like
- Trade or Factory：Factory
- Guarantee：1 Year
- Life Time：10 Years
- Service：Provide Engineer to Install The Machines
- Brand Name of PLC：as Customer Request
- Drawing：Designed as Customer Request
- Power：38V, 50Hz, 3 Phrase or as Your Like
- Decoiler Type：Manul, Electric, Hydraulic
- Control System：PLC
- Transport Package：Main Machine Nude Packing with Plastic Film
- Specification：5800*1500*1500
- Trademark：Xinnuo
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets Per Month
Description
Overview
Product Description
1: Factory direct supply price.
2: We have exported for more than 10 years.
3: Our customer are from about 34 countries.
4: We have the professional research team. We can make the machine according to your requirement.
5: High-end and high-grade design
6: Free technical support and Free accessoies supply.
1.Main parameter of metal door frame forming machine
Main parameters of roll forming machine1 Suitable to process Color steel, GI and etc 2 Thickness of feeding material 0.42-0.62mm 3 Roller station 16-18 rows 4 Productivity 8-10m/min 5 Rollers' material 45# forging steel 6 Diameter of shaft 48 mm 7 Voltage 380V 50Hz 3Phase 8 Side plate thickness 16mm steel plate 9 Main motor power 4kw 10 Hydraulic power 3kw Components Manual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set

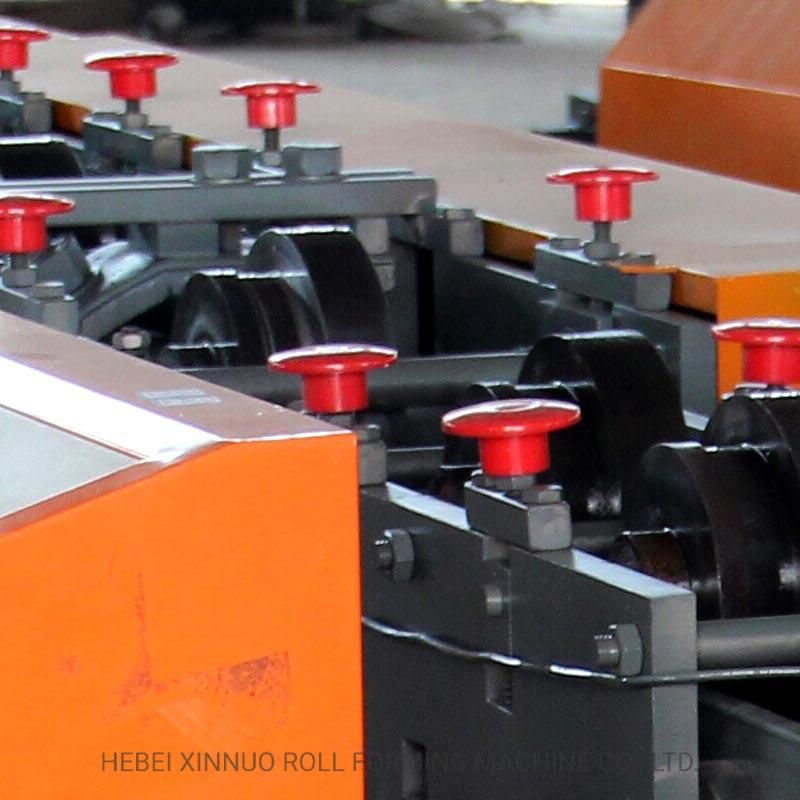

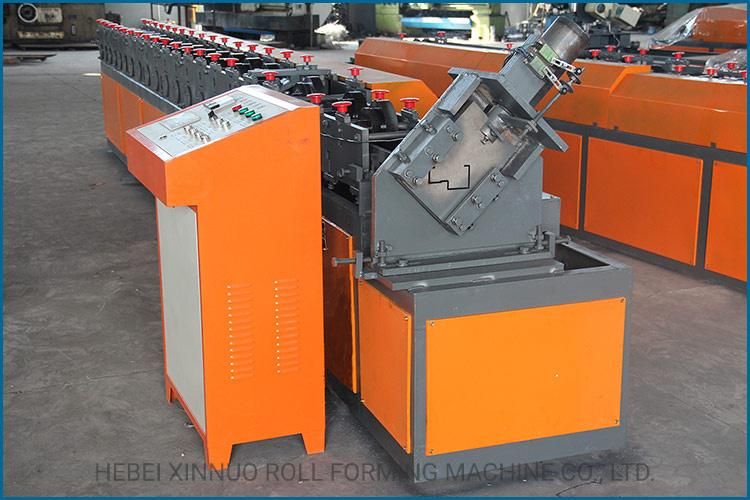

Equipment components: Manual uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting, run out tableDetailed Photos
The Production Process
Decoiler→Flating→Feeding →Forming→Cut to length→Colletion---(finish goods)
Packaging & Shipping
Company Profile
Our advantageous:
1: Factory direct supply price.
2: We have exported for more than 10 years.
3: Our customer are from about 34 countries.
4: We have the professional research team. We can make the machine according to your requirement.
5: High-end and high-grade design
6: Free technical support and Free accessoies supply.
1.Main parameter of metal door frame forming machine
Main parameters of roll forming machine
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set
Equipment components: Manual uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting, run out tableDetailed Photos
The Production Process
Decoiler→Flating→Feeding →Forming→Cut to length→Colletion---(finish goods)
Packaging & ShippingMain machine is nude, the computer control box is packed with wooden frame
