• Model NO.：Lxd-200X4
• Voltage：380V
• Process Usage：Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
• Numerical Control：CNC,Mnc
• Performance Classification：MID-Range CNC Machine Tools
• After-Sales Service：Lifetime Maintenance Service
• Application：Window
• Specification：2400*970*1640 mm
• Trademark：Zunbo
• Origin：China

Basic Info.

Model NO. Lxd-200X4 Voltage 380V Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools After-Sales Service Lifetime Maintenance Service Application Window Specification 2400*970*1640 mm Trademark Zunbo Origin China

Product Description

Product Description:

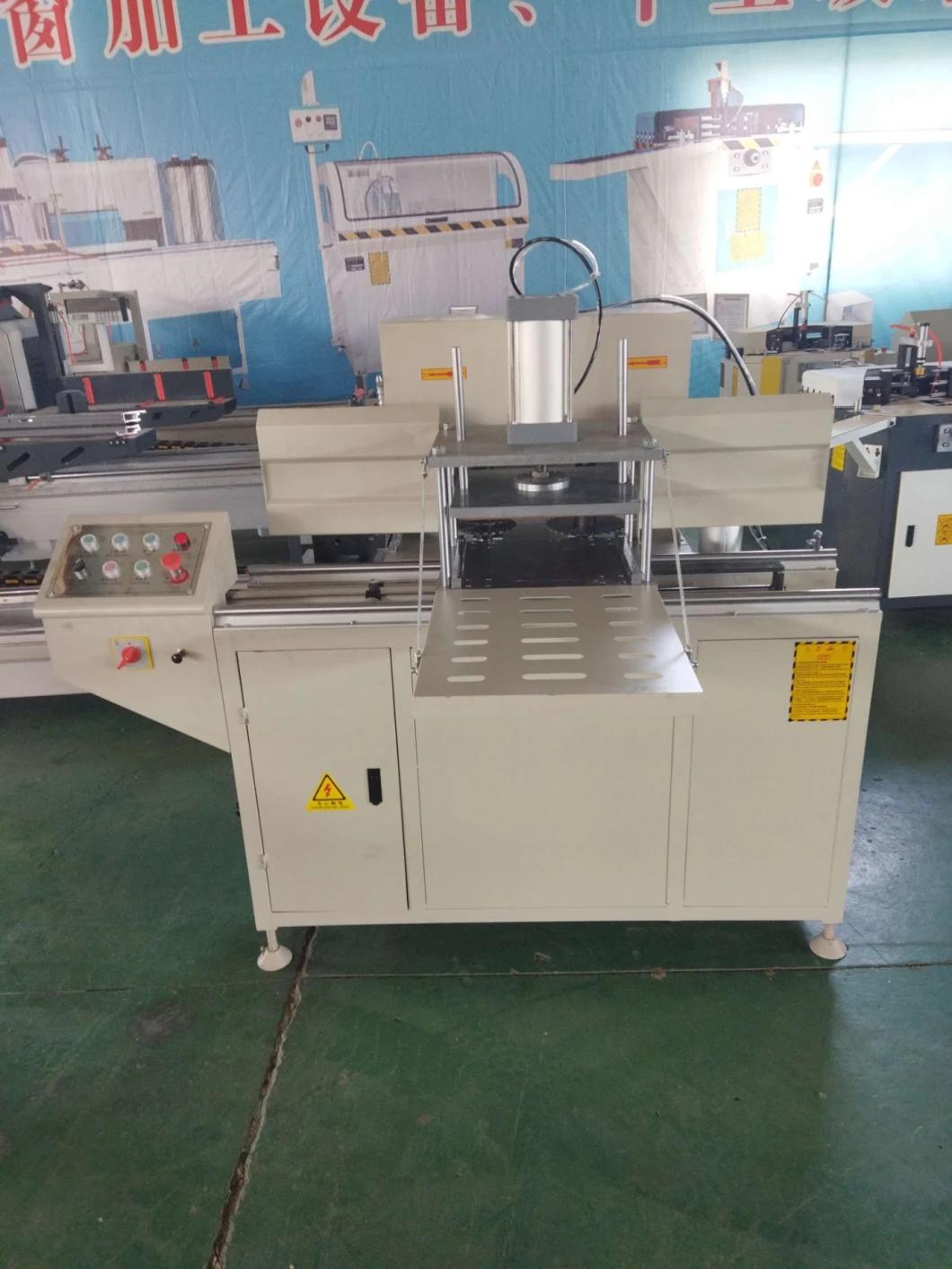

Model: LXD-200X4
Used to process the end faces of various door and window profiles.
The end face processing of multiple profiles can be completed at the same time, thereby improving production efficiency.
The four knives can be adjusted up and down, and are suitable for the end faces of different profiles.
The feed system adopts gas-liquid conversion, and the cutting feed speed is stable.
Simple operation, reliable performance, advanced technology, easy maintenance.

Technical Parameter:

Power Supply: 380 V  50 Hz
Input Power: 4.95 kW
Air Pressure: 0.5-0.8 Mpa
Air Consumption: 150 L/min
Motor Rotational Speed: 2800 r/min
Main Shaft Diameter: Φ32 mm
Milling Cutter Diameter: Φ200 mm
Outside Dimension: 2400*970*1640 mm
