Metal Steel Roofing Corrugated Sheet Roll Forming Machine

Yingkou Bohai Machinery Equipment Manufacture Co., Ltd.
  • Place of Origin:China
  • Brand:Bohai
  • Application:Construction
  • Transport Package:Packed in Container
  • Specification:6500*1700*1400(mm)
  • Trademark:BOHAI

Base Info

  • Origin:Liaoning Province of China
  • HS Code:8455229090
  • Production Capacity:20 Sets,Year

Description

Basic Info.

Origin Liaoning Province of China HS Code 8455229090 Production Capacity 20 Sets/Year

Product Description

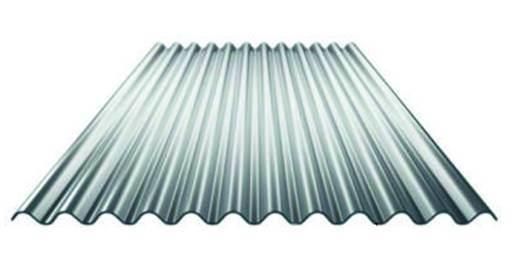

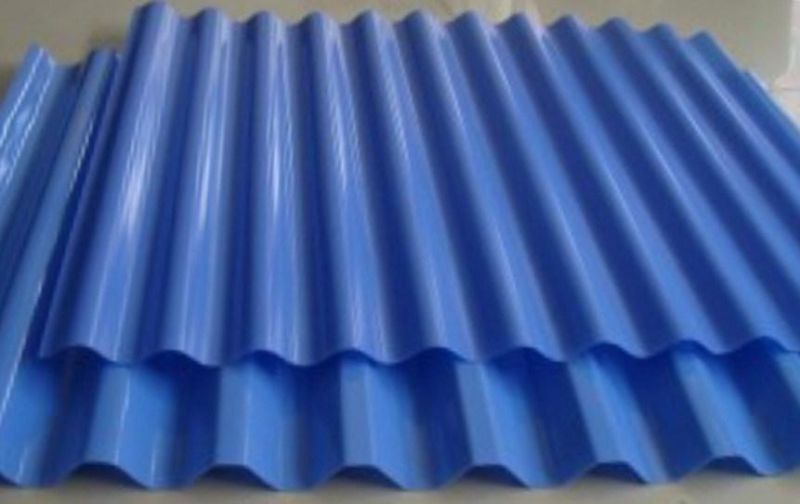

Metal Steel Roofing Corrugated Sheet Roll Forming Machine


Main parameter

1.  De-coiler: manual operation, passively de-coiling
2.  Loading of de-coiler: 5 T
3.  Frame of machine: welded with 350H beam steel
4.  Guide feeding way of forming: side direction roller type
5.  Forming machine type: wallboard and chain drive
6.  Diameter of shaft: ¢76mm
7.  Chain: 16A single row
8.  Motor power of forming machine: 5.5KW
9.  Line speed of forming machine: 5-17m/min
10. Steps of forming machine: 18

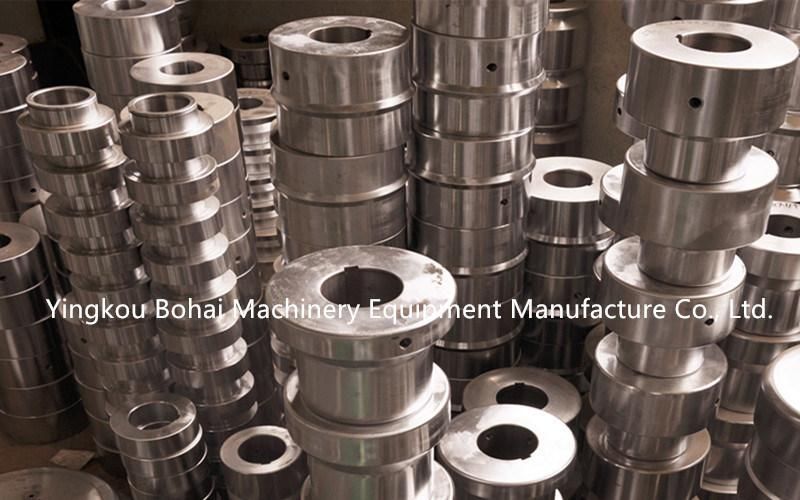

11. Roller material: superior 45# steel forging
12. Thickness of Chrome plated on roller: 0.05mm
13. Hydraulic station motor: 4 KW
14. Hydraulic station oil pump: gear pump
15. Cutting way: cut off after hydraulic shaped
16. Cutting blade material: Cr12
17. Cutting blade heat treatment: HRC58º-60
18. Rolling thickness: 0.4-0.8 mm
19. Feeding width: 1250mm
20.  Precision of cut-to-length: ±2mm
21. Frequency changer : Panasonic
22. Computer adopts PLC : Panasonic
23.  Dimension of machine: 8.5M x 1.6M x 0.8M

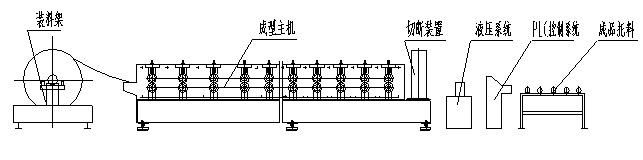

 Technological process
Passively de-coiling Guiding & Feeding material Roll Forming → Cutting-to-length Output panel
Metal Steel Roofing Corrugated Sheet Roll Forming Machine



Equipment configurationNormal manual De-coiler (5T); Main machine of roll forming; Hydraulic forming cutting; Hydraulic station; PLC computer operation cabinet; Run-out  table
No.ItemQty.
1Passive de-coiler1 piece
2Roll forming machine1 piece
3Hydraulic cutting blade1 set
4Hydraulic station 1 piece
5Computer control counter1 piece
6Run out  table3 pieces

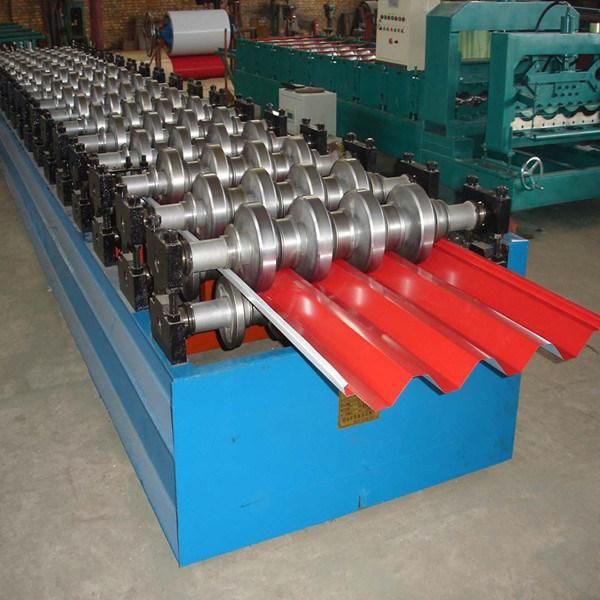

Metal Steel Roofing Corrugated Sheet Roll Forming Machine

Metal Steel Roofing Corrugated Sheet Roll Forming Machine

Metal Steel Roofing Corrugated Sheet Roll Forming Machine

Metal Steel Roofing Corrugated Sheet Roll Forming Machine

Project
Metal Steel Roofing Corrugated Sheet Roll Forming Machine

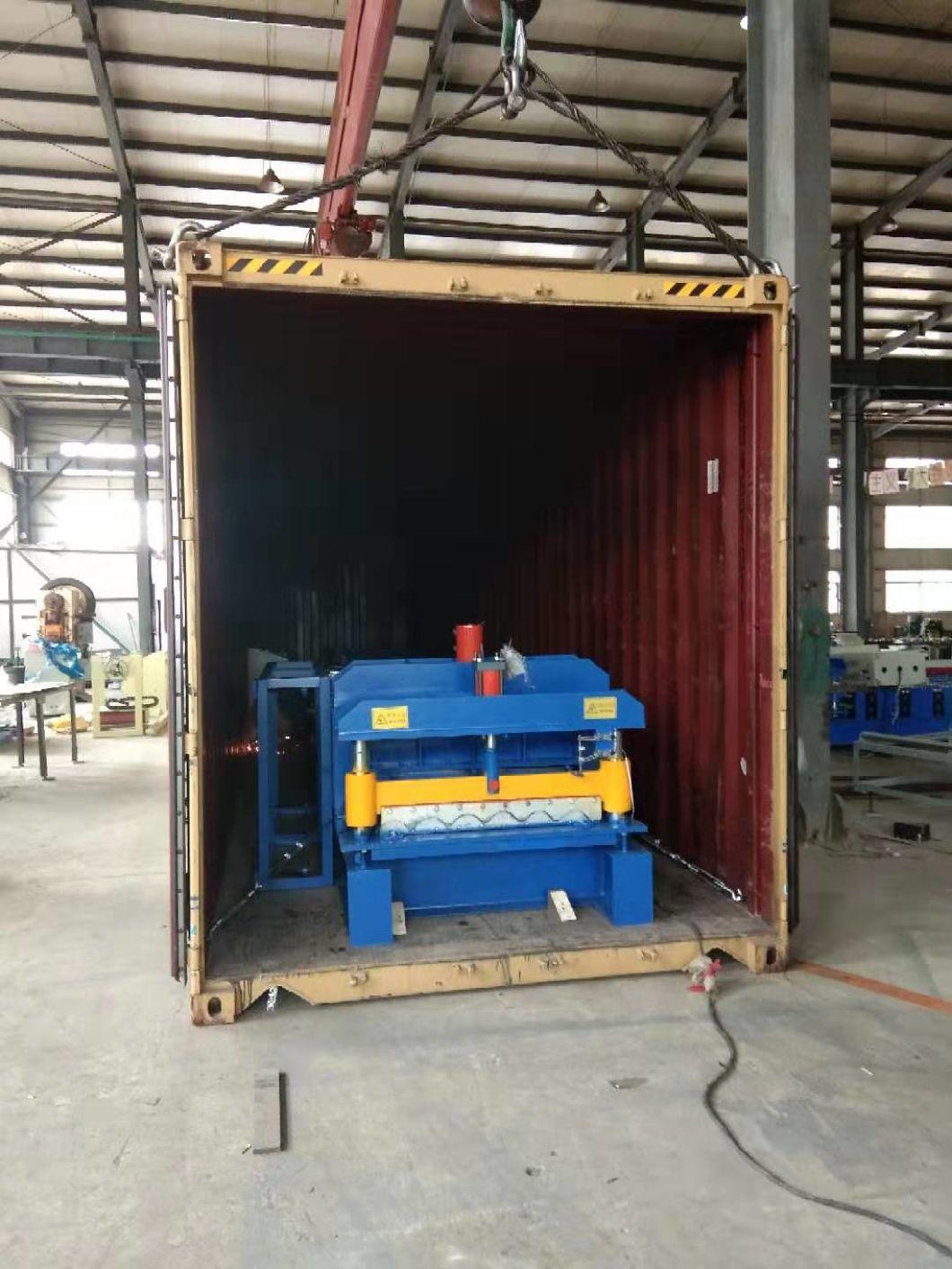

Delivery
Metal Steel Roofing Corrugated Sheet Roll Forming Machine

Metal Steel Roofing Corrugated Sheet Roll Forming Machine
