High Speed Ceiling Roll Froming Machine with Track Cutting 60m/Min

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • After-sales Service：Lifelong
  • Warranty：1 Year
  • Tile Type：Glazed Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：Stud and track
  • Usage：Roof, Wall
  • Transmission Method：Electric
  • Machine Name：Ceiling Roll Forming Machine
  • Sutiable Material：Gi Steel
  • Thickness：0.4-0.8mm
  • Main Power：15kw
  • Hydraulic Power：7.5kw
  • Machine Speed：60m,Min
  • Roller Material：Cr12,Quenching
  • Shaft Dia：65mm
  • Drive System：Gear Box
  • Decoiler：3t Double Head
  • Transport Package：Sutiable Sea Packing
  • Specification：Stud and track
  • Trademark：Saibo
  • Origin：Jiangsu
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Item NO
Description
Offered specification Roll Forming MachineCeiling roll forming machine Coil widthAccording the profile Rolling Speed60m/min Rolling Thickness0.4-0.8mm GI Control SystemPLC  (Panasonic) as list in the note Un Coiler3 ton manual double head de-coiler Roller StationsAbout 14 stations Correction1 station Embossingthe embossing will be on one of rollers Roller MaterialCr12 quenched and coated with chrome Shaft Material and DIA¢65mm, material is 45# forge steel Maim Motor Power15kw Hydraulic Station Power7.5kw Hydraulic Pressure10-12Mpa Material Of CuttingCr12Mov quenching 58-62ºC Structure Of The StationsWire electrode cutting Tolerance3m+-1.5mm Electric Source380V, 50HZ,3 phase
According to customer's require
  Way Of DriveBy gear box Color Of The MachineYellow and blue Size of the machineL*W*H   about 10.0m*1.2m*1.2m Container Need1x40 feet

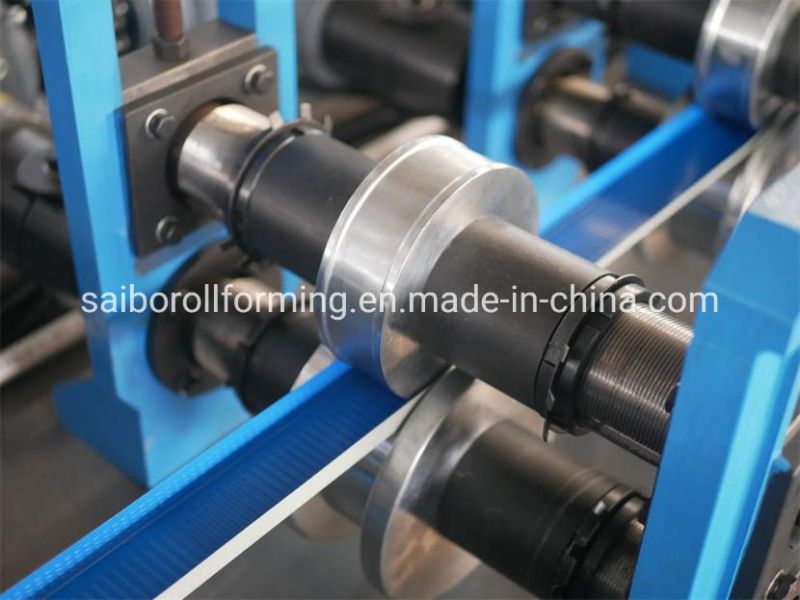

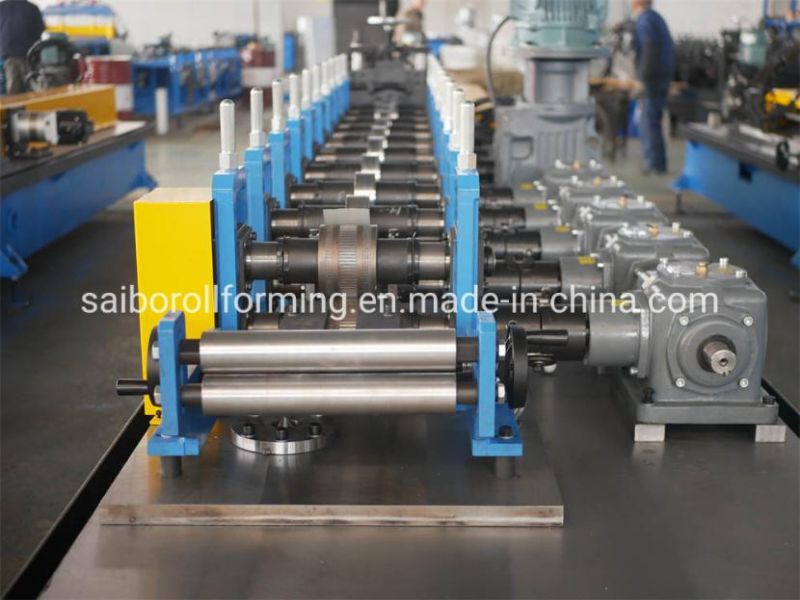

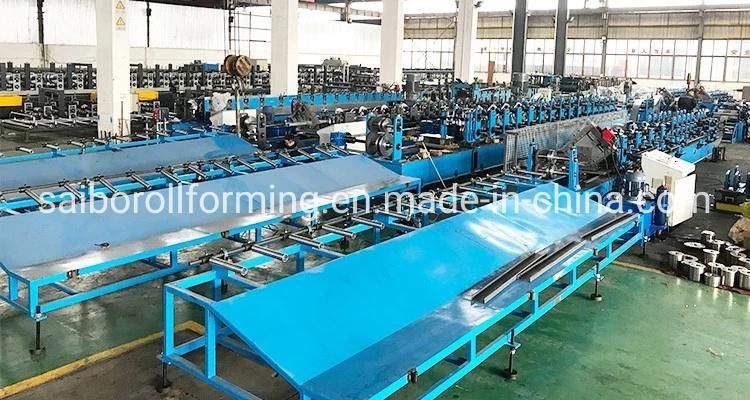

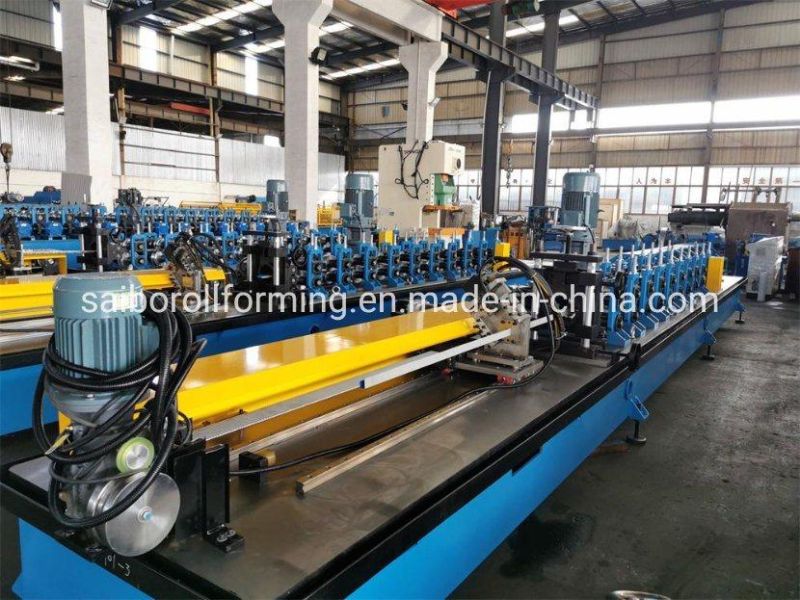

2. Machine pictures for reference
High Speed Ceiling Roll Froming Machine with Track Cutting 60m/MinHigh Speed Ceiling Roll Froming Machine with Track Cutting 60m/MinHigh Speed Ceiling Roll Froming Machine with Track Cutting 60m/Min

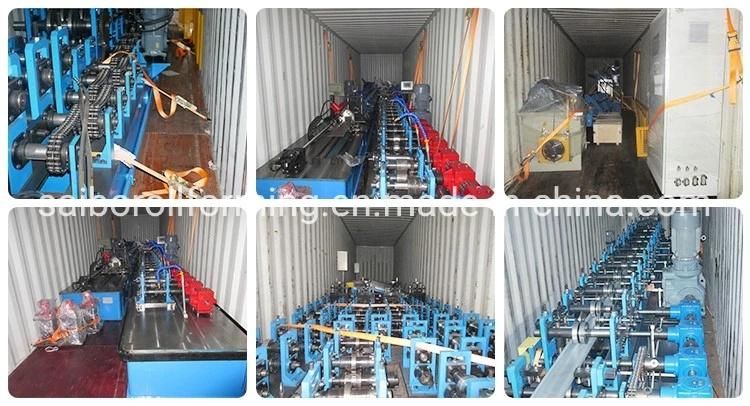

3. Packing & Delivery
Deliver time: take goods after receive deposit 60 days
Packing: suitable of ocean transportation

4. Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

5. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
High Speed Ceiling Roll Froming Machine with Track Cutting 60m/Min

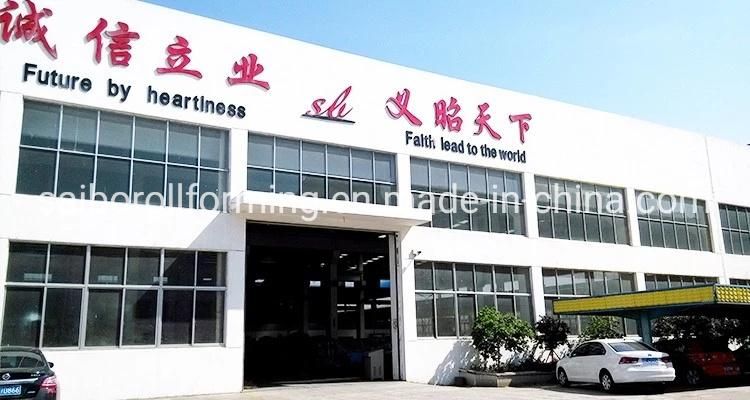

About Saibo
High Speed Ceiling Roll Froming Machine with Track Cutting 60m/Min
Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
High Speed Ceiling Roll Froming Machine with Track Cutting 60m/Min

We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality,  through design, and installation. Our goal is" future by heartiness, faith leads to the world".
High Speed Ceiling Roll Froming Machine with Track Cutting 60m/Min

International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV

National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
