• Model NO.：HR1-25
• Transport Package：Iron Box or Wood Box with Angle Iron Frame
• Specification：CE, BV , SGS , ISO9001: 2008
• Trademark：HENRY
• Origin：China(Mainland) Shandong Linyi
• HS Code：8474802000
• Production Capacity：150 PCS 250X125X100mm , Per Hour

Basic Info.

Model NO. HR1-25 Transport Package Iron Box or Wood Box with Angle Iron Frame Specification CE/ BV / SGS / ISO9001: 2008 Trademark HENRY Origin China(Mainland) Shandong Linyi HS Code 8474802000 Production Capacity 150 PCS 250X125X100mm / Per Hour

Product Description

 Ecological interlocking blocks-----                                ------new architectural trends



FAQ(frequently asked questions)

What is ecological bricks?
Our blocks are cured, not burnt and therefore requires NO burning trees. The bricks in an average clay house could burn as many as 60-100 trees. Our blocks are made from earth (soil) which is an excellent insulation material; it keeps structures cool in the warmer months and warm in the cooler months, thus reducing carbon footprints. Because our blocks are also made from soil and clay and only 10% cement, the blocks require no harmful additives.


Advantages of our clay interlocking brick making machine
1. Save up to 30% in construction costs
2. Faster and Easier construction
3. High Quality firebrick like finish
4. After sales support to ensure NO "down time" on your site
5. Low machine maintenance costs
6. Mobile machines enable you to make blocks where you need them

It can meet with environmental requirements, without being burned in the kiln. It only need to be cured in the open-air as long as 5-7 day , then you can use it in the construction.
Using ecological interlocking bricks, you can save much construction costs, you needn't use cement and the construction process is very easy.


Matching principle

soil interlocking bricks
soil 60%-72% cement 8%-10% sand 20%-30%
concrete hollow blocks
crushed stone:50%-60%  sand 30%  cement 7%-10%
paving blocks
crushed stone:30%-40%  sand 40%-50% cement10%-12%

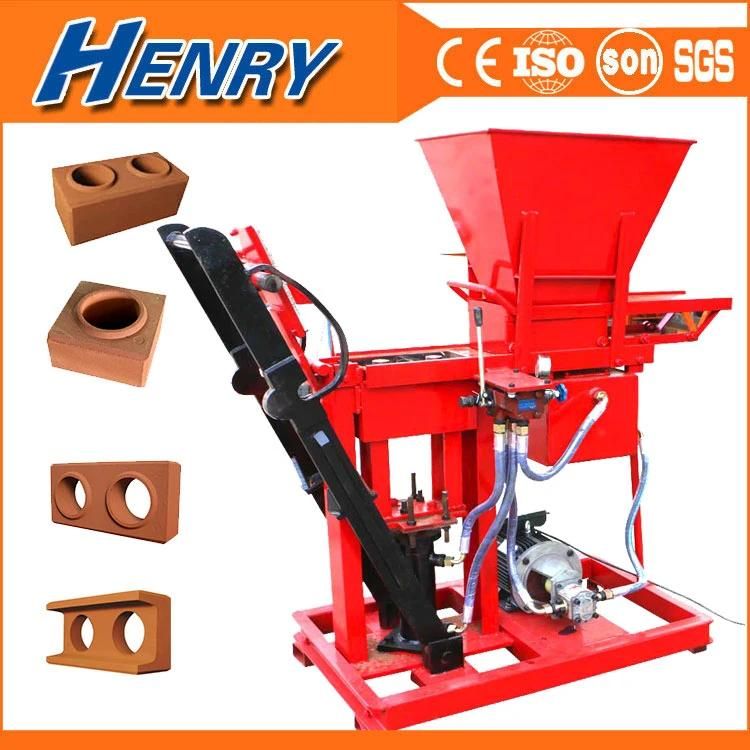

     HR1-25 soil interlocking block machine

machine specification


rated power	2.2kw or 12 HP diesel engine
overall size	806x326x1200 mm
weight	230kg
cycle	25 seconds
electricity source	380v/50HZ
rated pressure	8mpa

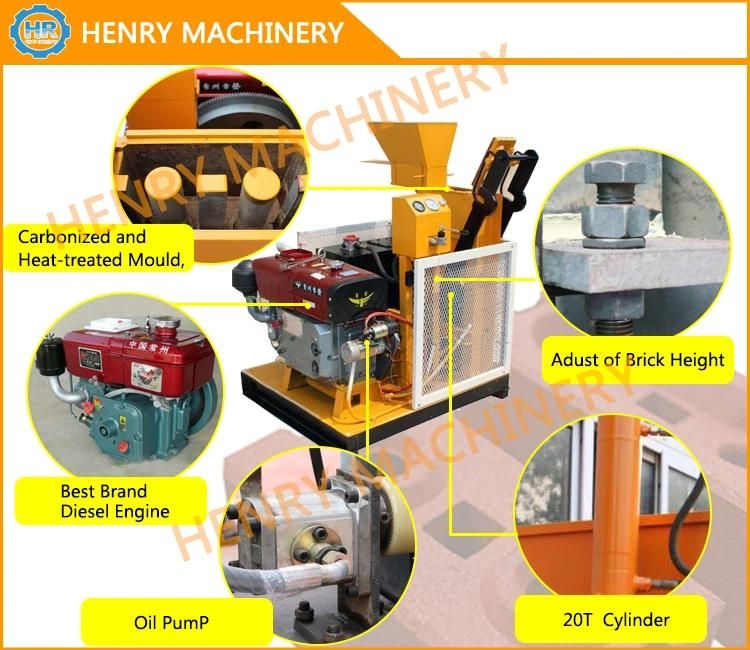

Advantages of our clay interlocking brick making machine

Hydraulic soil block machine is our newest clay and cement brick making machine.

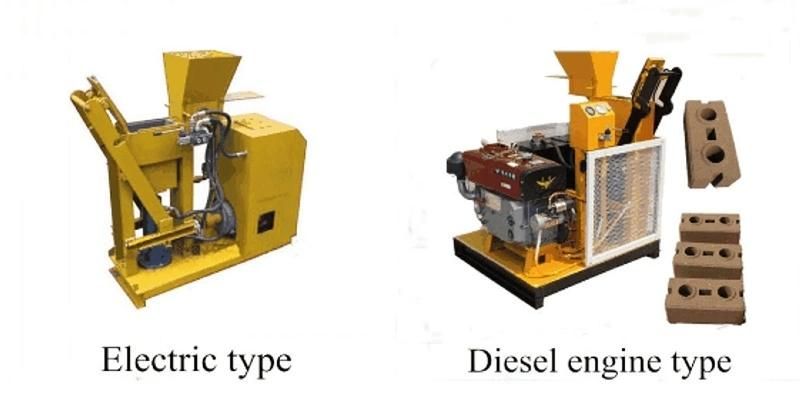

it is automatic operation machine .its material feeding .mould pressing and mould lifting automatically . you can chose diesel engine or motor.

1)Material hopper.It can reserve 8-10 shift material.Saving feeding time.

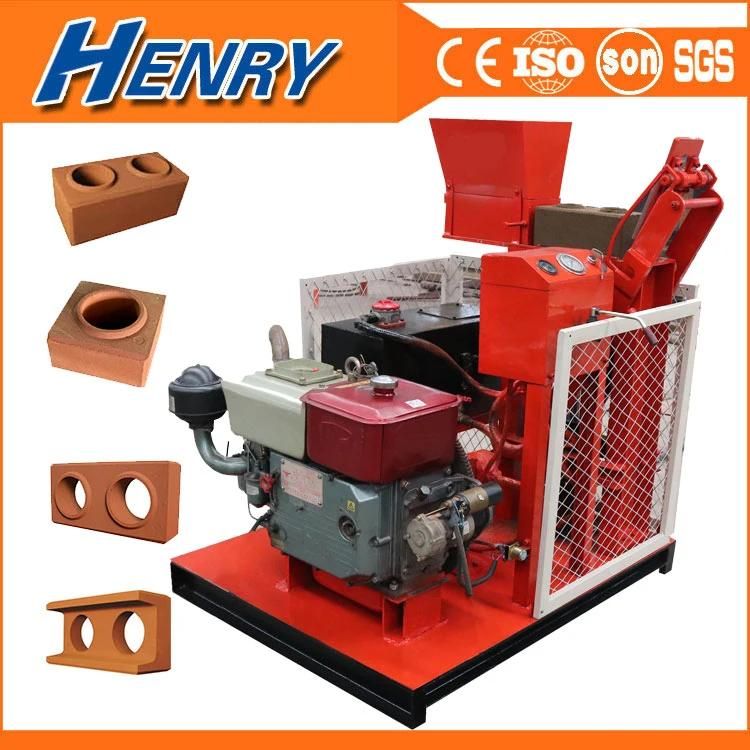

2)Diesel or electric engine power.We use the world famous brand,CHANGCHAI engine
3)Hydraulic oil meter.Easy to show pressure timely.
4)Molding cover.Simple operation,processing accurate,durable
5)Surrounding style protective screening.Avoid concrete pellets from hopper
6)Steel raw material.Using 45# steel that is 3 times harder than our company
7)Molding.Molding with Carburizing technology,solid and more durable

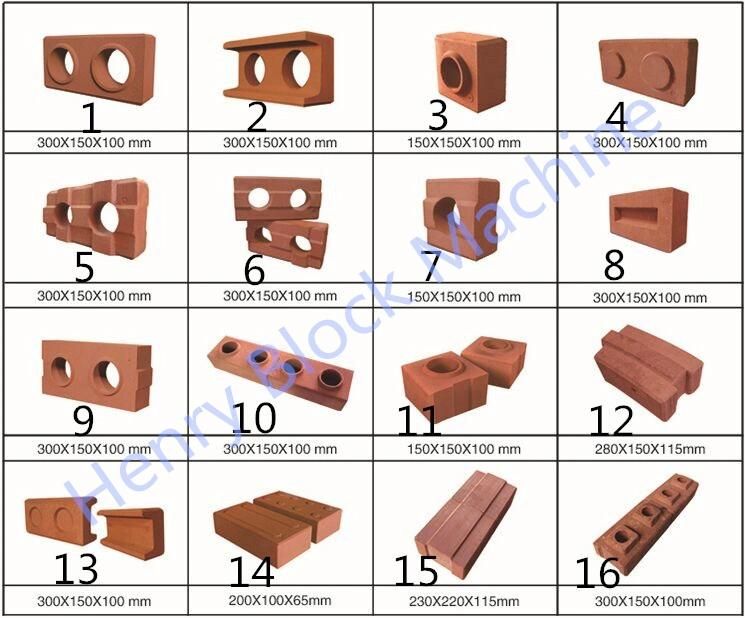

Capacity table

Block size	Pcs/mould	Pcs/hour
250x125x100mm	1	120-144
125x125x100mm	2	240-288
300x150x100mm	1	120-144
150x150x100mm	2	240-288
300x150x100mm	1	120-144
300x150x100mm	1	120-144

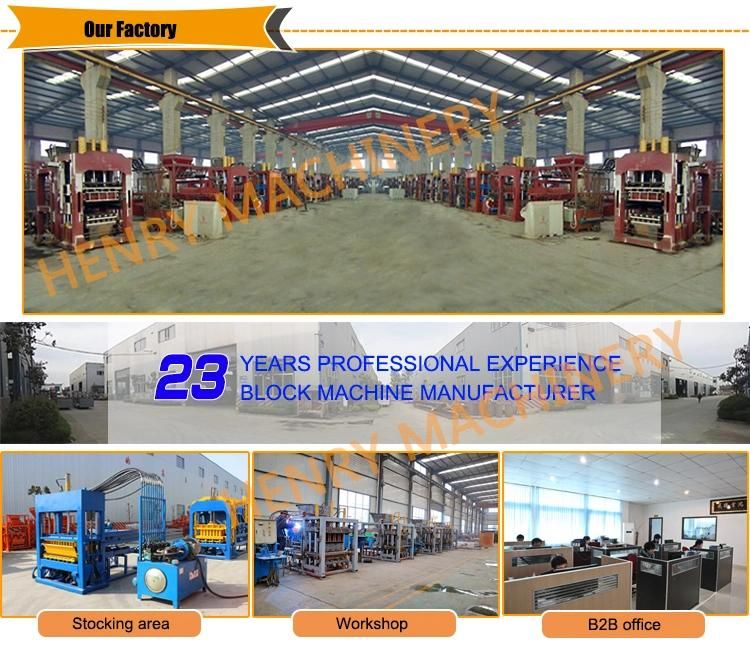

                      Company profile


        Henry Industrial Co., Ltd has been committed to the design, manufacture, sale of
construction machinery, has the domestic advanced equipments, super professional
skills, and 20 year production experience.
    The company has been put the new technology, new products in the first place, has
applied for 23 patents, the patent technology guarantee equipment to be rationality,
stability, reliability, customers have been widely praise and acclaim on it .Company
products are exported to Europe and the United States, Africa, the Middle East and
America more than 100 countries and regions, now has 3 offices in foreign countries,
which provide good customer service after sale for foreign customers.
