Building Material Making Machinery

Three-Head Precision CNC Cutting Saw for Sliding Door CNC Cutting Machine for Aluminum Material for Aluminum Alloy Door Materials

Shandong Zunbo CNC Equipment Co., Ltd.
  • After-sales Service:Lifetime Maintenance
  • Warranty:1 Year, 1 Year
  • Condition:New, New
  • Certification:ISO, GS, CE, RoHS, ISO 9001
  • Automatic Grade:Automatic
  • CNC or Not:CNC

Base Info

  • Model NO.:LJZ3-500X5700
  • Voltage:380V
  • Process Usage:Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
  • Numerical Control:CNC,Mnc
  • Performance Classification:MID-Range CNC Machine Tools
  • After-Sales Service:Lifetime Maintenance Service
  • Application:Window
  • Specification:5800 mm
  • Trademark:Zunbo
  • Origin:China

Description

Basic Info.

Model NO. LJZ3-500X5700 Voltage 380V Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools After-Sales Service Lifetime Maintenance Service Application Window Specification 5800 mm Trademark Zunbo Origin China

Product Description

Product Description:

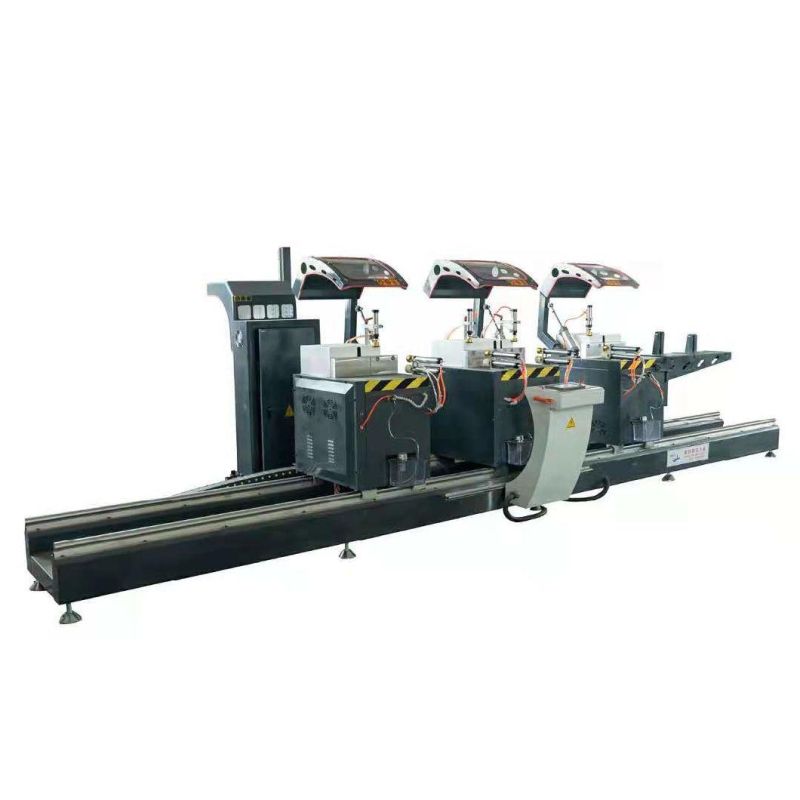

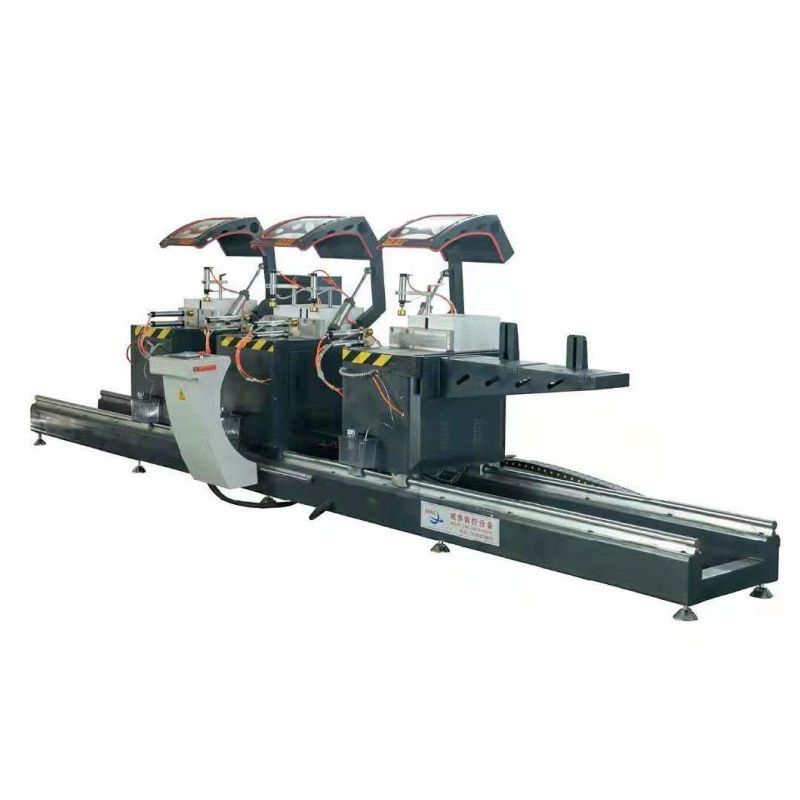

Model: LJZ3-CNC-500X5700
It is mainly used for cutting and blanking of system door and window profiles, and also for cutting and blanking of plastic profiles.
Using carbide saw blades, the line speed is high, and the machining accuracy is high.
The transmission accuracy is high, the positioning is accurate, and the work is stable.
High-precision spindle motor makes the saw blade rotate stably
The gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
Use micro spray cooling device.
When the machine is working, the two saw blades can cut at the same time or separately.
The saw blade is from back to front, and the cutting profile is safer and more reliable, and the sawing height and sawing width are large.


Technical Parameter:

Power source: 380V 50HZ
Input power: 3*2.2kW
Working pressure: 0.5~0.8MPa
Cutting height: 140(500)mm
Cutting width: 120(500) mm
Saw blade specifications: D=500mm d=30mm
Precision: ≤ 0.2mm/m
Tolerance of profile cutting angle: ±3
