• Model NO.：MF300
• Automatic Grade：Automatic
• Working Material：Galvanized Sheet(Gi), Cold Roll Steel(CRC), Hot RO
• Yield Strength：345-550MPa
• Thickness：1.0-2.5mm
• Width：140-305mm
• Flange：50mm
• Lips：10-20mm
• Cutter Material：Cr12MOV, Heat Treatment
• Control System：PLC
• PLC Brand：Panasonic
• Decoiler：Hydraulic Automatic Decoiler
• Applilcation：Light Steel Frame House
• Printing：Double Sides
• Punching：Pre-Punching
• Cutting：Post-Cut
• Support Table：6m Length
• Transport Package：Naked
• Trademark：FrameTec
• Origin：China
• HS Code：8455221000
• Production Capacity：600 Sets,Year

Basic Info.

Model NO. MF300 Automatic Grade Automatic Working Material Galvanized Sheet(Gi), Cold Roll Steel(CRC), Hot RO Yield Strength 345-550MPa Thickness 1.0-2.5mm Width 140-305mm Flange 50mm Lips 10-20mm Cutter Material Cr12MOV, Heat Treatment Control System PLC PLC Brand Panasonic Decoiler Hydraulic Automatic Decoiler Applilcation Light Steel Frame House Printing Double Sides Punching Pre-Punching Cutting Post-Cut Support Table 6m Length Transport Package Naked Trademark FrameTec Origin China HS Code 8455221000 Production Capacity 600 Sets/Year

Product Description

OVERVIEW
The MF300 Light gauge steel framing machine is a highly versatile member of the FrameTec manufacturing system. Designed to offer increased production speed, greater flexibility and increased reliability, the MF300 Light gauge steel framing machine is best suited for residential and light commercial projects. Producing profiles from 135mm to 305mm up to 2.50mm thickness.

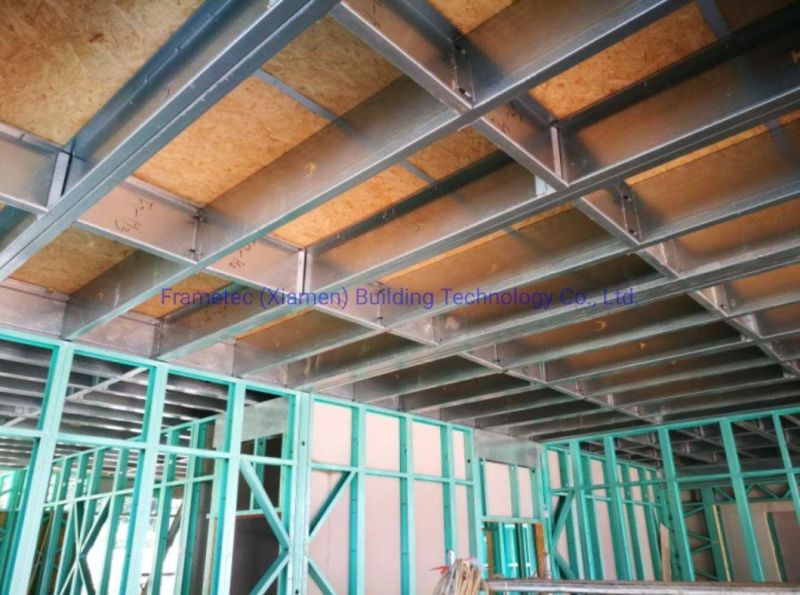

MF300 Light gauge steel framing machine is suited to construct walls, floors and roofs for 1 - 6 level residential, modular and transportable units, and light commercial construction.


Machine Equipment


                                                  1. Specifications

Profile Shape	C, U and Sigma Shape
Profile Size	135-305 mm
Material Thickness	1-2.5 mm, G300-G450 Zinc-Alum Steel Coil
Operation System	21 inches Touchable Screen
Production Control System	Self-devoloped FrameTec LGS machine Controlling Software
Design Software	Vertex BD from Finland
Comprehensive  Machine Speed	Joists: 500 m/hr   Walls: 800 m/hr
Max. Machine Speed	2,150m/hr
Power Supplier	380V, 50Hz, 3Phrases, can be customized
Hydraulic Coolant System	Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling
Punching, Cutting Mould	Fixing tabs, Web hole, Service Hole, Dimple, Web Notch
Hole Punching Accuracy	± 0.5 mm
Decoiler	5000 kgs,auto decoiling

                                                  2. Machine Main Features

Classical LGS machine models for 6+ years, very stable and with high speed production speed	The MF300 produces wall frames, trusses and joists for residential and light commercial building quickly economically
Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists	An auto-gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 1 -2.5mm
High line speed results in the accelerated cold formed steel framing and truss manufacturing output	Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency
High line speed results in the accelerated cold formed steel framing and truss manufacturing output	Self developing control system base on the market feedback that can meet your requirement well & with good after sales support

 Machine Details

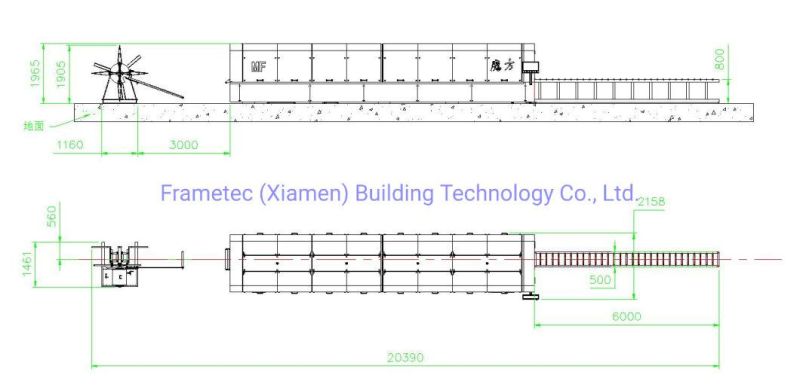

Working Flow:
De-coiler→ Leveling Device→ Punching Device→ Roll Forming System→Cutting Device →Out-let table

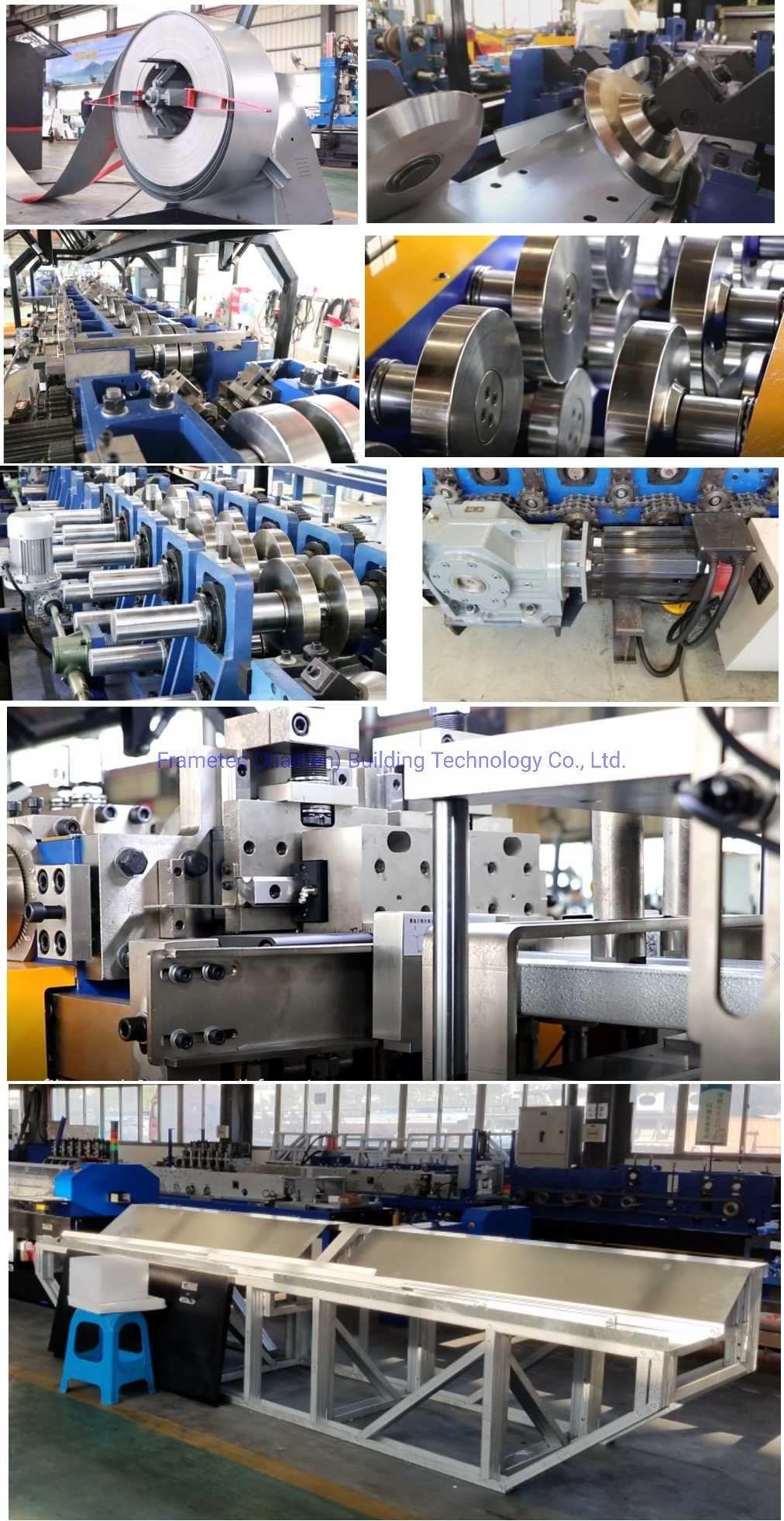

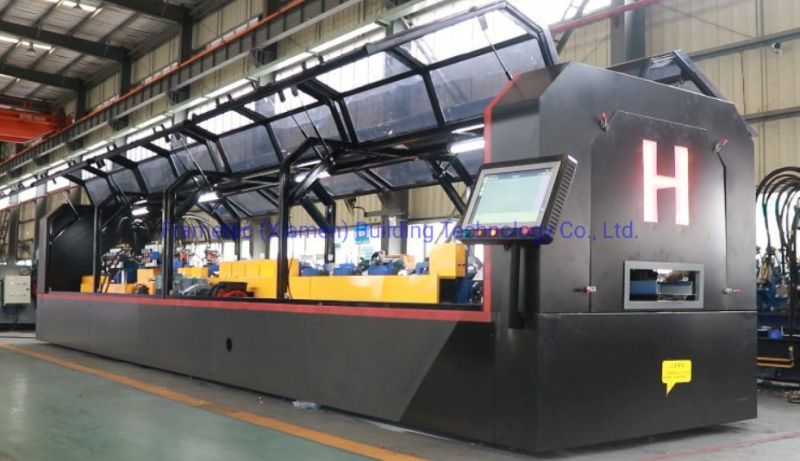

Machine details:

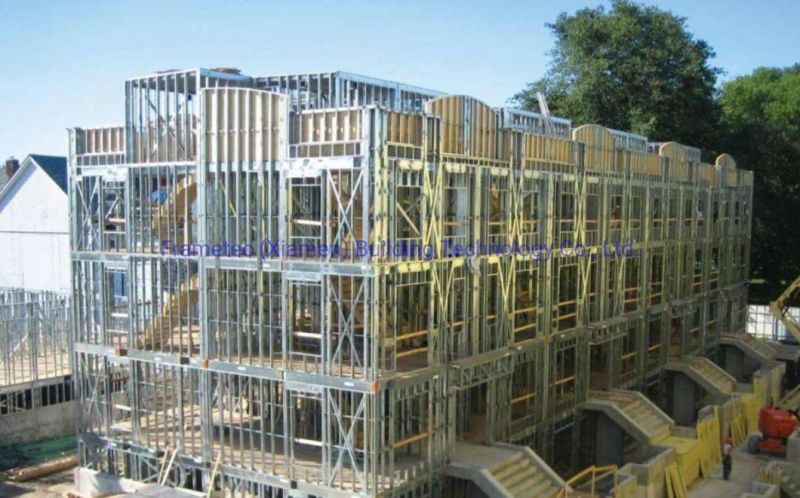

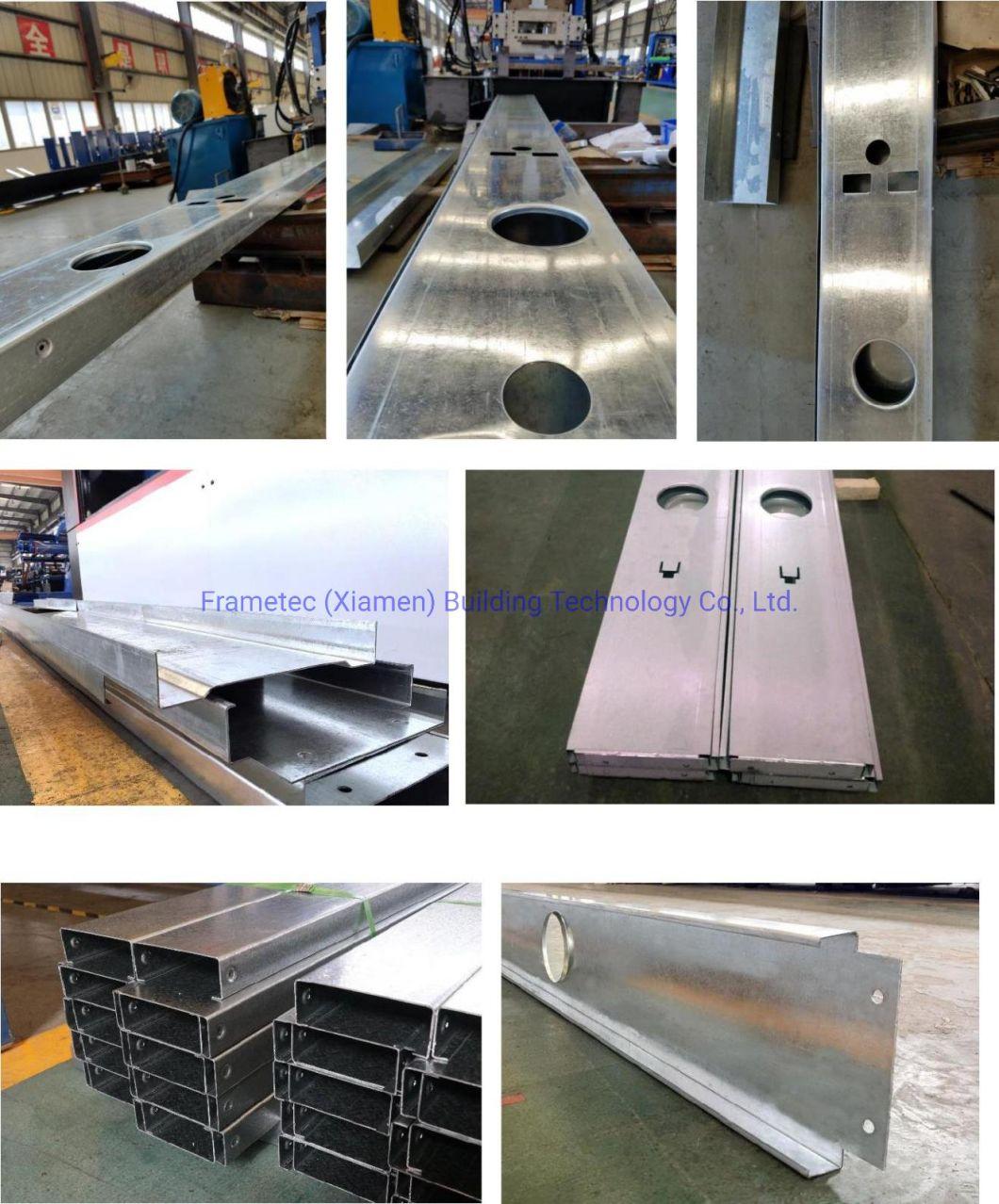

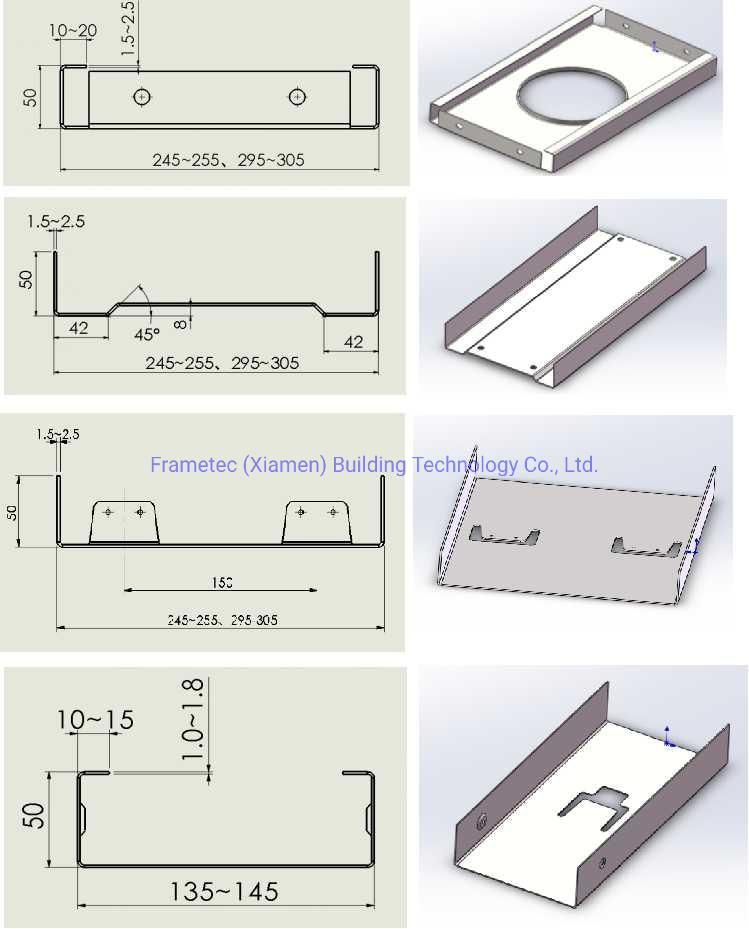

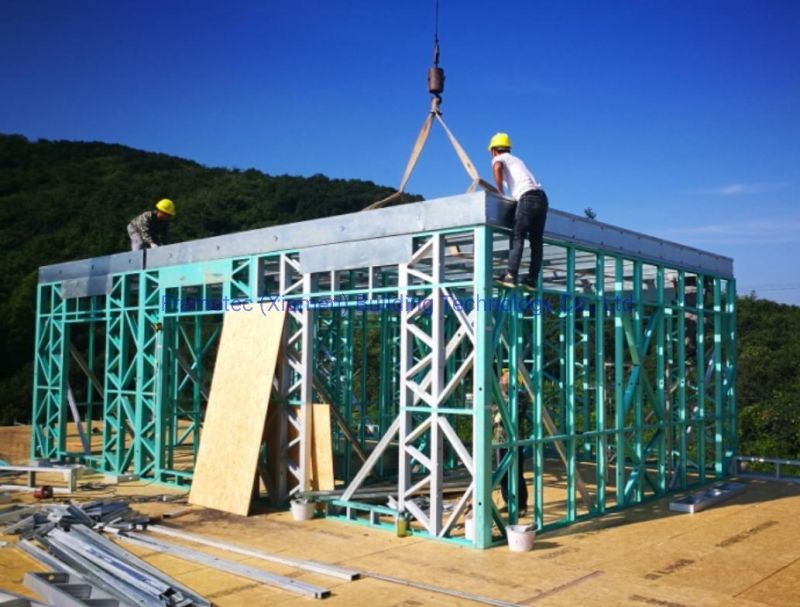

Profile Effect & Application

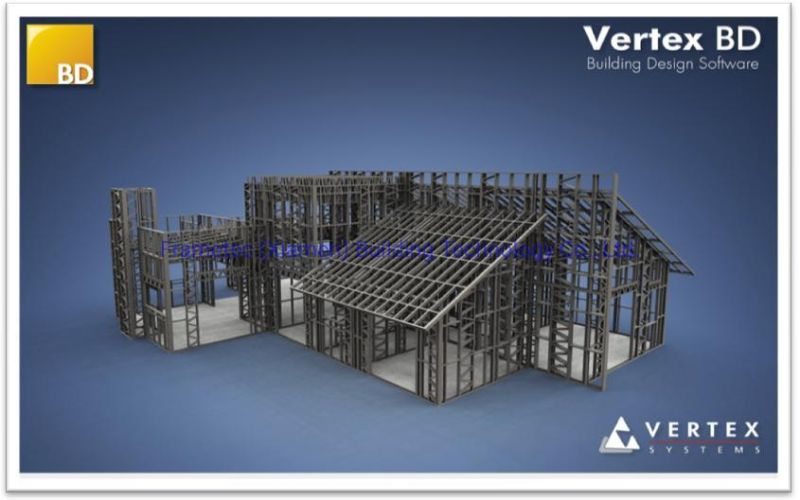

Design Software & Production System
(International leading brand for LGS construction design)

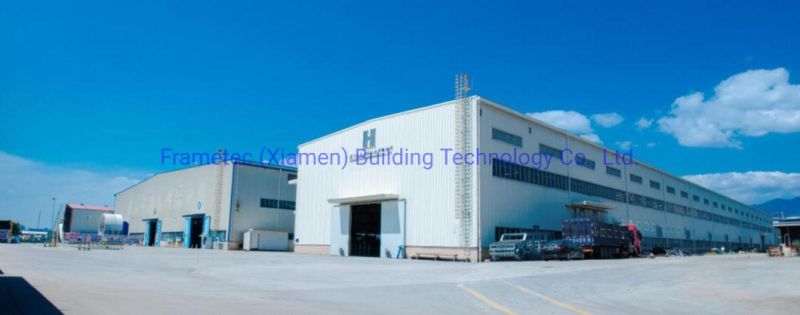

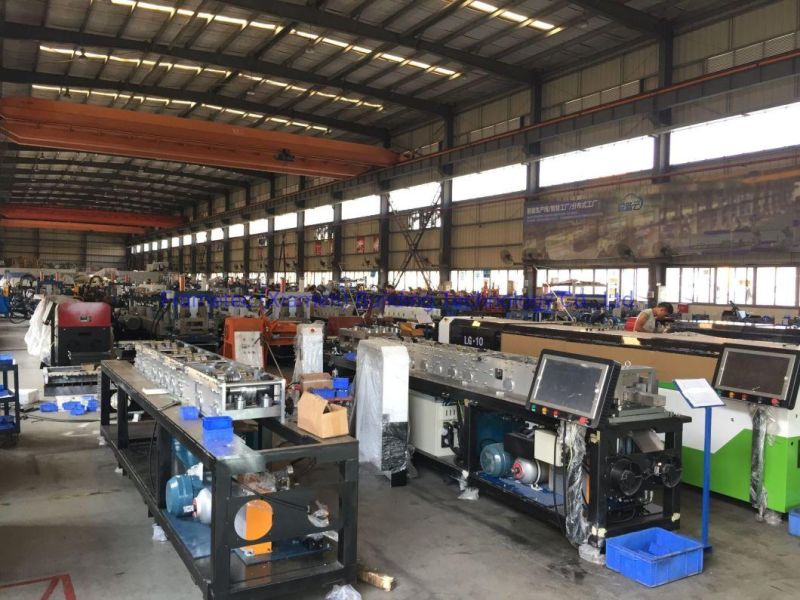

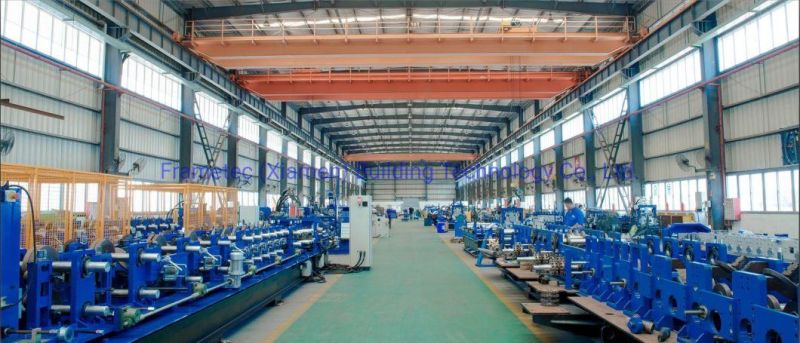

Our Factory


^{Why Choose FrameTec}FrameTec is a specialized manufacture focusing in high quality roll forming equiments for the construction of light steel frame structure & cold formed steel structures.

For many years, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology and easy operation, and promote users to a higher position in the fierce market competition.


All our machines have a built in Windows based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.

FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Panels, Trusses and Floor Joists in:
Residential and Commercial buildings
Steel framed systems for modular & prefabricated buildings
Walls framed for low and high rise buildings
Walling, floors, beams, roofing, kitchen & bathroom pods
Storage, recreational, transportable dwellings
