• Model NO.：KCJ-01
• Feeding Speed：10-105m,Min (Stepless Adjusting)
• Knurling Cutting Diameter：90mm
• Air Pressure：0.5-0.8MPa
• Thermal Break Strip Width：0-40mm
• Max Profile Section (W*H)：240*380mm
• Overall Dimension (L*W*H)：1000*900*1500mm
• Profile Support Dimension (L*W*H)：5000*450*900mm
• Keyword：Knurling Machine Price
• Transport Package：Simple Stretch Film or Professional Export Plywood
• Trademark：TRUETEC
• Origin：Shandong China
• Production Capacity：15 Sets Per Month

Basic Info.

Model NO. KCJ-01 Feeding Speed 10-105m/Min (Stepless Adjusting) Knurling Cutting Diameter 90mm Air Pressure 0.5-0.8MPa Thermal Break Strip Width 0-40mm Max Profile Section (W*H) 240*380mm Overall Dimension (L*W*H) 1000*900*1500mm Profile Support Dimension (L*W*H) 5000*450*900mm Keyword Knurling Machine Price Transport Package Simple Stretch Film or Professional Export Plywood Trademark TRUETEC Origin Shandong China Production Capacity 15 Sets Per Month

Product Description

China thermal break machine manufacturers&suppliers/knurling machine for sale

Equipment Advantages

1, Special equipment manufactured for thermal break aluminum profile.
2, It is used to knurl on the notch of thermal break aluminum profile to improve horizontal shear force of profile.
3, It is the key machine to increase shear strength, knurling slot of extrusion profile through rotating knife at a high speed.
4, Stepless speed regulation is available by using frequency converter.
5, Electric controlled lifting of knurling knife and more stable automatically changing of different profile is available.
6, It can work with laminating frame and clamping device which means the machine poccesses the function of knurling, strip feeding and laminating film sticking.
7, The machine can inster nylon or PVC strip into profile at the same time of knurling.

Technical Data


Model	KCJ-01
Input power	1.1Kw
Power supply	220V/50Hz
Air pressure	0.5~0.8MPa
Feeding speed	10-105m/min (stepless adjusting)
Knurling cutter diameter	90mm
Thermal break strip width	0-40mm
Max. processing profile section (W*H)	240*380mm
Overall dimension (L*W*H)	1000*900*1500mm
Profile support dimension (L*W*H)	5000*450*900mm
Weight	600kg

Machines Details



Main Accessory


Electric Component	Schneider
Buttons	Schneider
Electric relay	Schneider
Motor	Chaoyang
AC Contactor and Circuit Breaker	Schneider

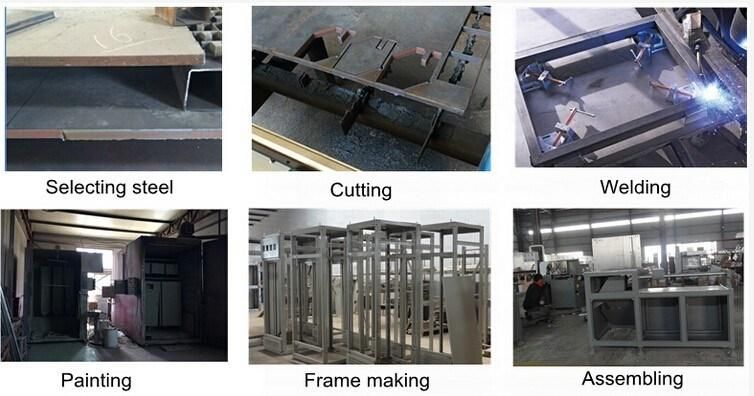

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.



Packaging&Shipping


Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

Our Company

Welcome To Visit

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.



Our Exhibition

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
