Fully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty：12 Months
  • Tile Type：Colored Steel

Base Info

  • Model NO.：NM1102
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric
  • Product Name：Double Deck Roll Forming Machine with CE ISO
  • Raw Material：PPGI Sheet
  • Thickness Range：0.3-0.8mm
  • Machine Power：5.5kw+3kw
  • Machine Weight：About 9 Tons
  • Afer-Sales Service：Engineer Is Availble to Overseas
  • Main Shaft Dia：70mm
  • Working Speed：10m--15m,Min(Exclude Cutting Time)
  • Roll Station：9 Groups and 11 Groups
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：8500mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：Cangzhou, China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months
  • Package size per unit product：850.00cm * 150.00cm * 180.00cm
  • Gross weight per unit product：7000.000kg

Description

Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm Fully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll MachineMain motor power5.5 kwDrive1'' single chainType:Wall boardMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station9 groups for corrugated sheet and 11 groups for IBR sheetRaw material0.3-0.8mmCoil width 1000mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 6 tonSize of machineAbout 6500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power3KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm
4. Equipment list :

No.Product Name       QTY
15T Manual decoiler          2
2Fully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll Machine
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		          1
3Passive Output table          2
Sum           5

5. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

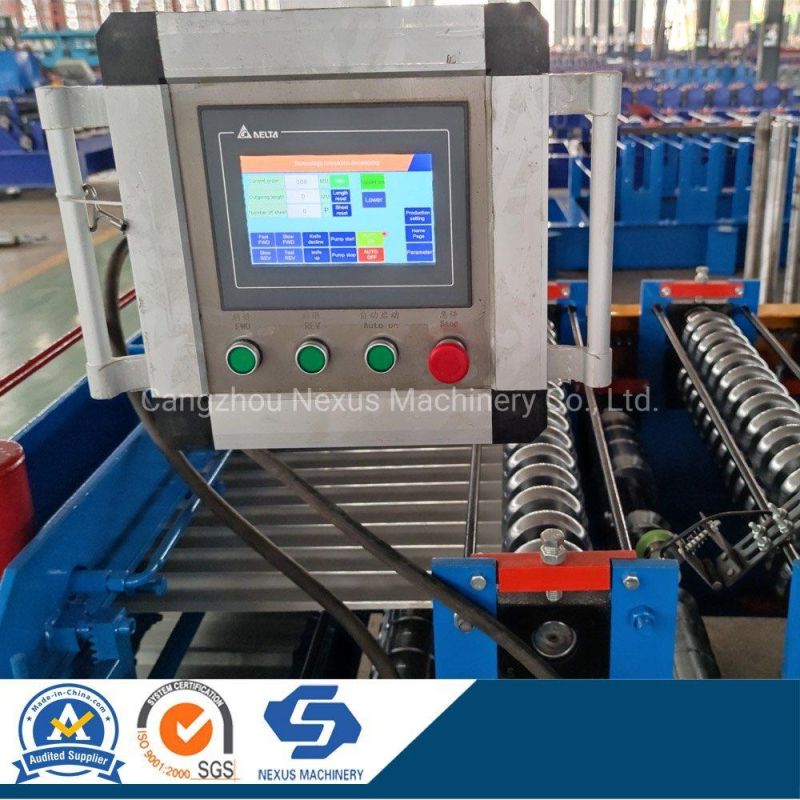

6. Photos of Fully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll Machine for Reference:
Fully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll MachineFully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll MachineFully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll MachineFully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll MachineFully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll Machine
Fully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll Machine

7. Why Choose US?
1. More than 10 years experiences in manufacturing&exporting roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
Fully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll Machine
Fully Automatic Metal Roof Trapezoidal Sheet Roll Forming Machine Aluminium Profile Form Roll Machine
