Automatic Prefabricated House Insulation EPS Sandwich Concrete Wall Panel Making Machine

Zhengzhou Xingruida Machinery Manufacturing Limited Company
  • Product Type:EPS Sandwich Cement Panel Machine
  • Automatic Grade:Automatic
  • Power Source:Electric
  • Screw Design:Single-Screw
  • Certification:CE, ISO
  • Condition:New

Base Info

  • Customized:Customized

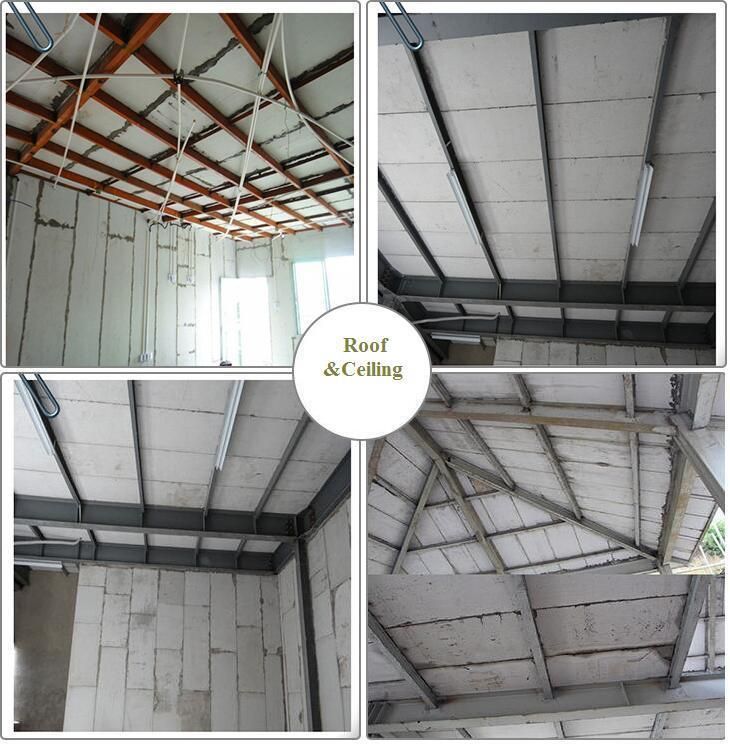

  • Application:Wall ,Roof,Prefabricated Industry
  • Capacity:20,000sq.M to 1000,000sq.M Per Year
  • Transport Package:Bulk and Wooden Pallet
  • Specification:610X2400X75MM, 90MM, 100MM, 120MM, 150MM
  • Trademark:Amulite
  • Origin:China
  • Production Capacity:20000sq. M -1000000sq. M Per Year

Description

Capacity M2/8Hours75mm360M2720M21080M21800M290mm315M2630M2945M21575M2
Automatic Prefabricated House Insulation EPS Sandwich Concrete Wall Panel Making Machine

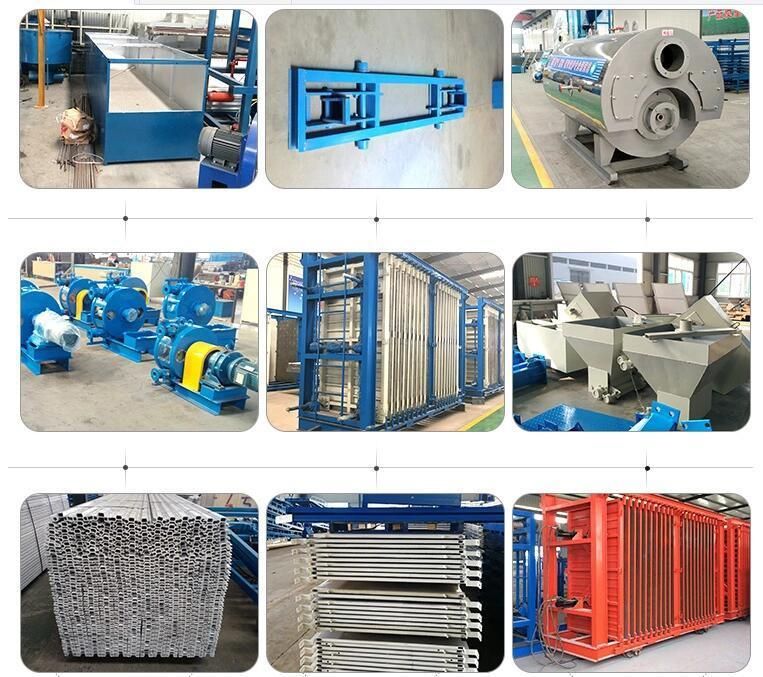

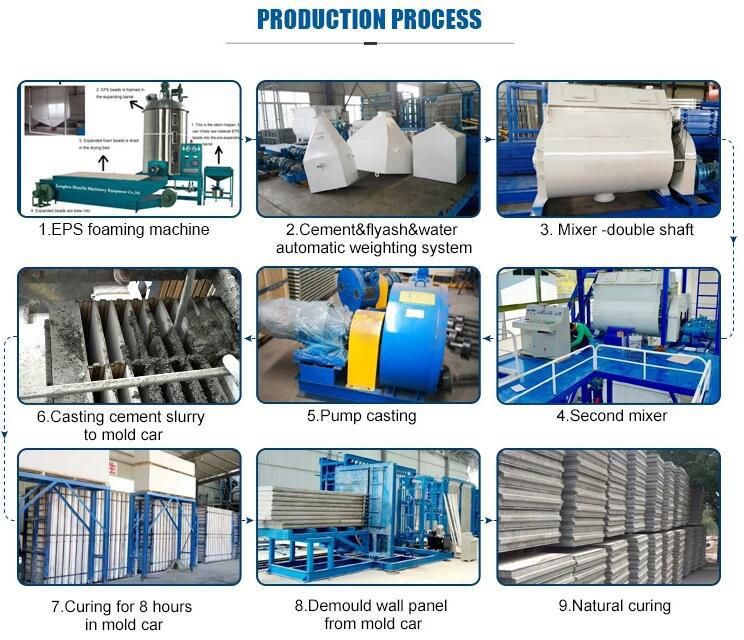

                          Second Part: Machine Show

  1. :Name : Boiler
Boiler Can Gas Generated,Oil Generated,Electricity Generated,Which Provide Steam For Plant;
Automatic Prefabricated House Insulation EPS Sandwich Concrete Wall Panel Making Machine

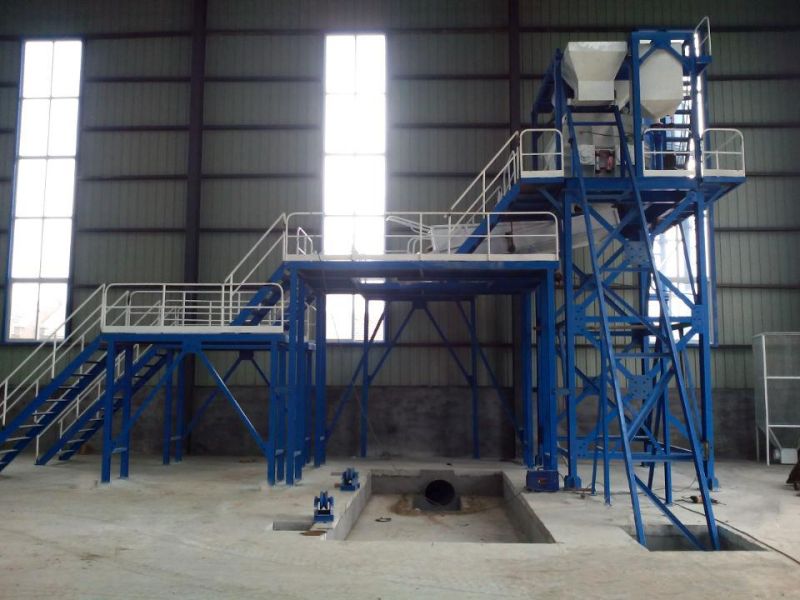

  1. :Name: Mixer Platform

Including:Main Mixer
(Can Choose According to Production Capacity):AM1500(For 10 Sets Of Mould Cars),AM2000(For 10-20 Sets Mould Cars),AM3000(For 20-30 Sets Of Mould Cars );
Automatic Materials Input System:
Screw Conveyor Machine(Input Cement,Fly Ash),Second Material Lifter Machine(Input Sand,Additives And Other Recycled Materials);


Automatic Metering System :

Including : Cement,Fly Ash Metering System,Water Metering System,EPS Powder Metering System ;

Operating Platform:

Metering Platform,Mixer Platform,Electrical Platform,Pouring Platform,Supplementary Platform ;

Automatic Control System:

Which Can Make Mixer System Fully Automatic,One Worker Can Operate From Input Materials ,Metering,Mixing And Pouring Whole System ;

Automatic Prefabricated House Insulation EPS Sandwich Concrete Wall Panel Making Machine

  1. :Name : EPS Forming Equipment System
Including :EPS Forming Machine,Screw Conveyor,Fluidized Bed,Second Material Tank And Accessories,Mixer Head And Accessories;
Automatic Prefabricated House Insulation EPS Sandwich Concrete Wall Panel Making Machine

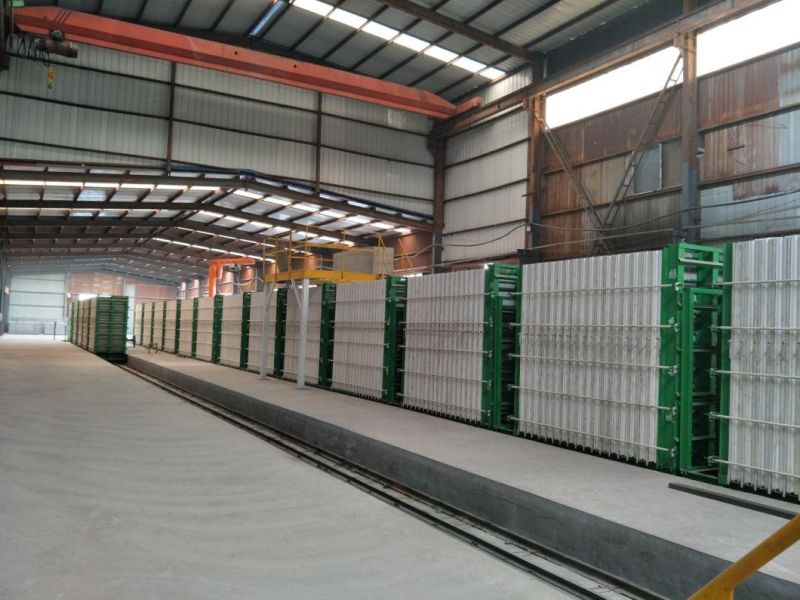

  1. :Name: Vertical Wall Panel Mould Car
Vertical panel mould car can produce 10 pcs one times. So the production capacity is very higher.


  1. :Name: Fully Automatically Demould Car
It is fully automatically demolding the wall panel. It can demould 5 sheets one time and need about 20 mins for one mould car, which improve the capacity and save labor cost.


  1. :Automatic Transfer Cars System
Including :
Traction System,Which Make Mould Cars To Move Freely Between Front And Back ; Ferry Cars System,Which Make Mould Cars Can Transfer Between Different Rails;


  1. :Name: PLC Control Cabinet

For the control systerm, we use PLC simens system with higher quality.
