Automatic Electric Roof Tile Mould/ Roof Tile Roll Forming Machine
Cangzhou Nexus Machinery Co., Ltd.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Product Name：Roof Tile Mould Roof Tile Roll Forming Machine
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.7mm
- Machine Power：5.5kw+3kw
- Driven Type：by Chain
- Forming Speed：10-15m,Min
- Operation Type：Touch Screen
- Machine Weight：About 5 Tons
- PLC Brand：Panasonic, Siemens or Mitsubishi
- Warranty：12 Months
- Freight Service：Accpetable
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：6500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：Cangzhou, China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description

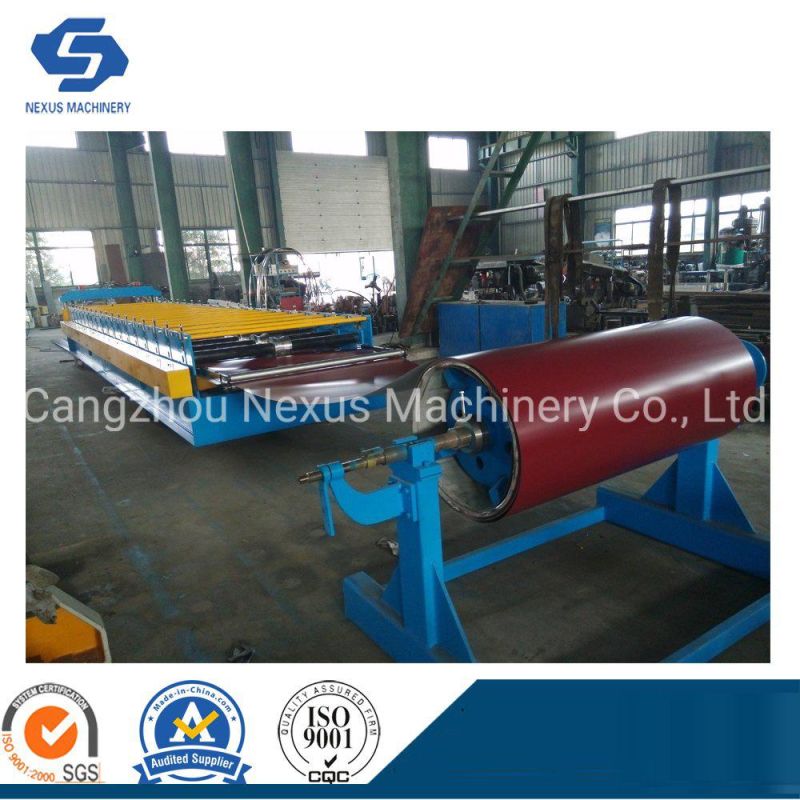

Manual decoilerCapacity 5ton Feeding width MAX 1300mm Expanding range 460-520mm

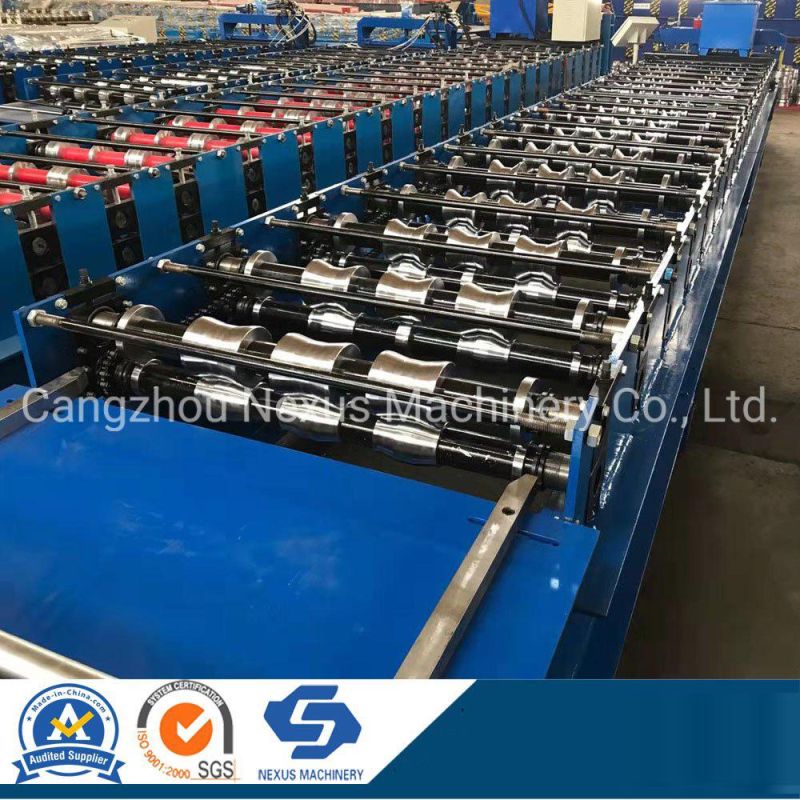

Automatic Electric Roof Tile Mould/ Roof Tile Roll Forming Machine
4. Character of main structure:
7. More Products for Choose:
FAQ:
Automatic Electric Roof Tile Mould/ Roof Tile Roll Forming Machine
| Main motor power | 5.5kw |
| Drive | 1'' single chain |
| Type: | Wall board |
| Main shaft dia | ¢70mm |
| material | 45# forge steel and quenched |
| Roller material | 45# high grade forge steel ,chrome coated 0.05mm |
| Roll station | 16 groups |
| Raw material | 0.3-0.7mm |
| Coil width | 1000mm |
| Working speed | 10m--15m/min(Exclude cutting time) |
| Length Tolerance | ±1.5mm |
| Weight of machine | About 5 ton |
| Size of machine | About 7500×1800×1500mm L x W x H |
| Color of machine | Yellow and Blue |
| Coder | Omron, made in Japan |
| Control | PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) |
| Computer operating panel | touching screen |
| Other electrical element | Schneider |

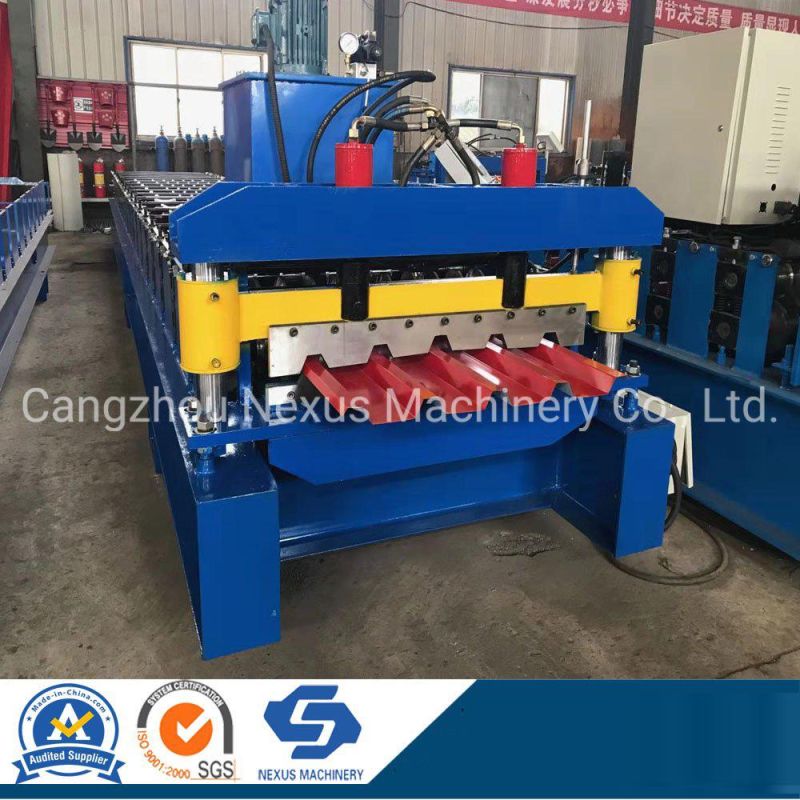

| Cutting | Hydraulic cutting. Auto cutting when reach the set length |
| Hydraulic power | 3KW |
| Blade material | Cr12mov,quenched 58°-62° |
| Working pressure | 16mpa |
| Cutting tolerance | +/- 1.0mm |
4. Character of main structure:
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing in the factory.
- Low noise with high efficiency.

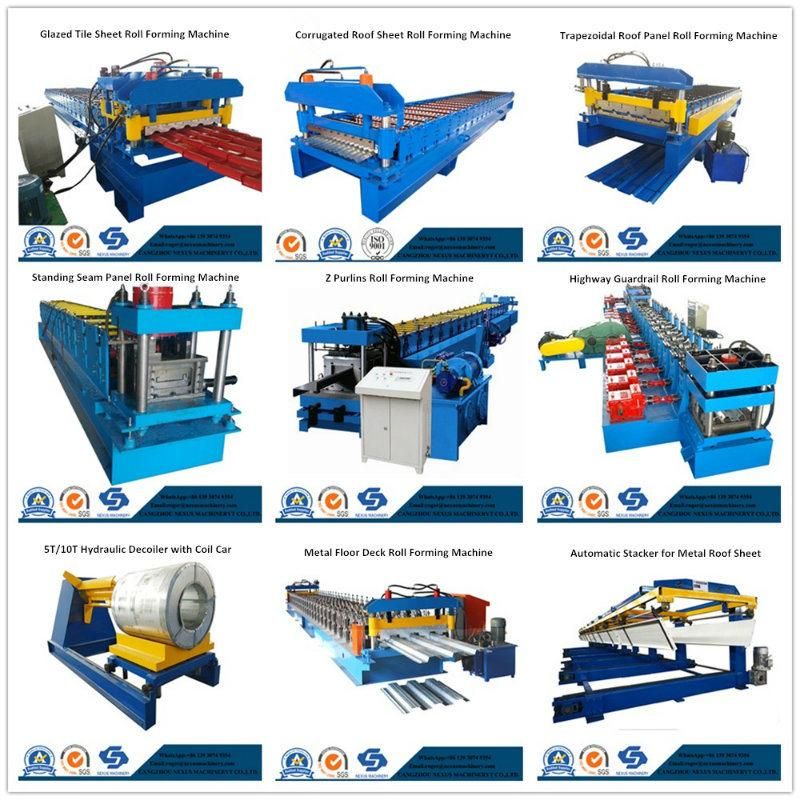

7. More Products for Choose:
FAQ:
- Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. - What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. - Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport. - Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.
