• Model NO.：QT4-15
• Vibration Frequency：4600(R,Min)
• Pallet Size：960X550mm
• Molding Cycle：15-25s
• Overall Power：25.7kw
• Transport Package：No Packing
• Specification：7100*1700*2610mm
• Trademark：shiyue
• Origin：Shandong Province China
• HS Code：8474802000
• Production Capacity：5000sets One Year

Basic Info.

Model NO. QT4-15 Vibration Frequency 4600(R/Min) Pallet Size 960X550mm Molding Cycle 15-25s Overall Power 25.7kw Transport Package No Packing Specification 7100*1700*2610mm Trademark shiyue Origin Shandong Province China HS Code 8474802000 Production Capacity 5000sets One Year

Product Description

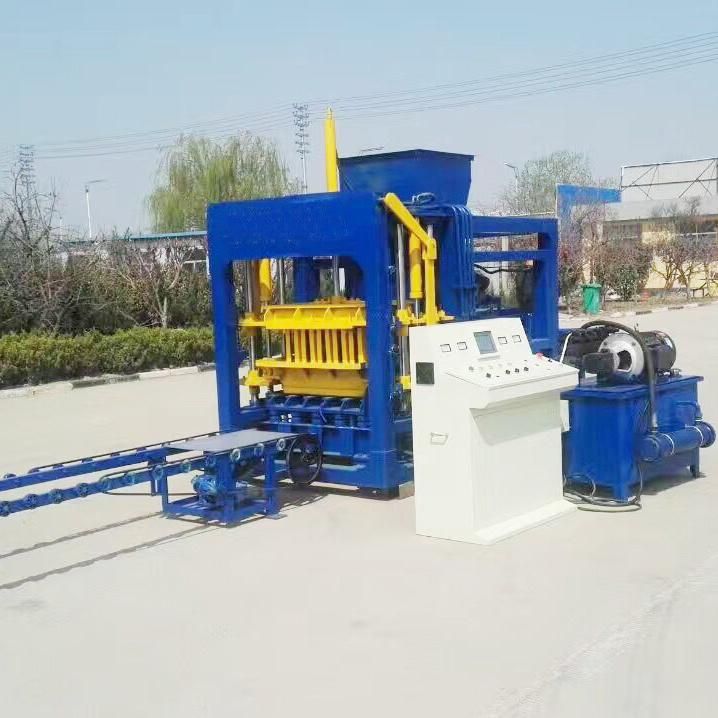

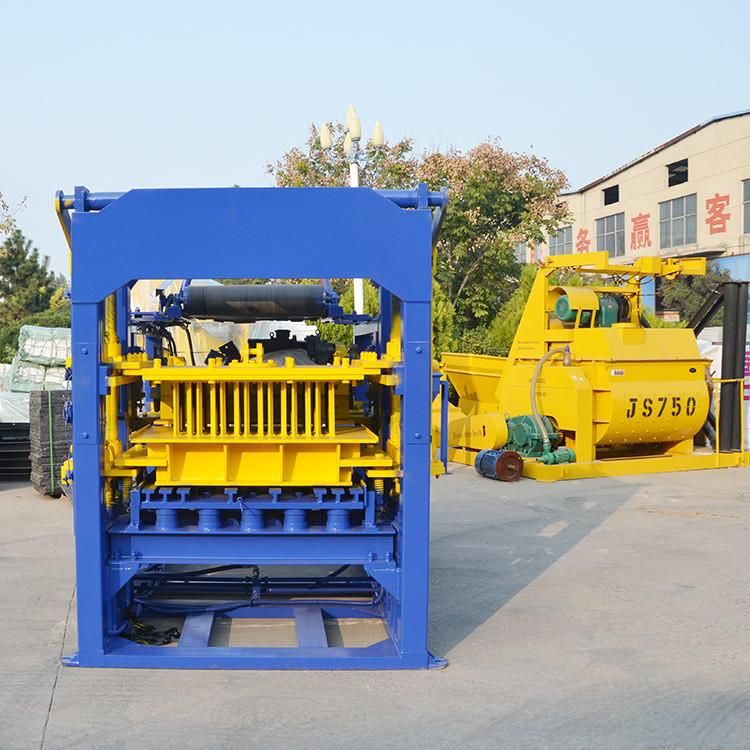

Qt6-15 Hydraulic Concrete Hollow Paver Brick/Block Forming Machine


Product Description
1.The machine adopts hydraulic system and the working procedure is very even and dependable,
2. It is a practical machine that simple in structure, artistic in figure.
3.Especially suitable to the production of the standard bricks
4. The reasonable material proportion have the capacity of making highdensity standard bricks,
Technical Parameters

Overall Dimension	7100*1700*2610mm
Rated Pressure	16MPa
Main Vibration Form	Platform Vibration
Vibration Frequency	2800~4500 ( r/min)
Pallet Size	960*550mm
Molding cycle	15-25 (s)
Overall Power	25.7KW
Vibration Force	45KN
Total Mass	6T
Demolding method	Hydraulic
General water consumption	12T/Day
Factory Area	500m2
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.
Raw Material	Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material , etc.

Productivity

Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/10hours
400X200X200	4	720-960	7200-9600
200X100X60	16	2300-2800	23000-28000
240X115X50	30	7200-9000	72000-90000

Our customer visiting and order
