Qt5-15 Hydraulic Paving Brick Making Machine Block Maker Machine

Qingdao HF Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock
  • Cycle Time：15-20s
  • Pallet Size：1100*550mm

Base Info

  • Model NO.：QT5-15 block machine
  • Host Machine Weight：5500kg
  • Vibration Form：Platform Vibration
  • Color：Optional
  • Warranty：1 Year
  • Voltage：220-240V
  • Transport Package：Standard Export Packing
  • Specification：2150*1950*2810mm
  • Trademark：HF
  • Origin：Shandong, China
  • HS Code：847480909
  • Production Capacity：60sets,Month

Description


Main Technical Specifications
 ModelQT5-15
 Rated Pressure16Mpa
 Dimension2150*1950*2810mm
 Cycle Time15-20s
 Vibration formPlatform vibration
 Weight5500kg
 Power26.5KW
 Raw Materialscrushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastesPallet size900x680mm

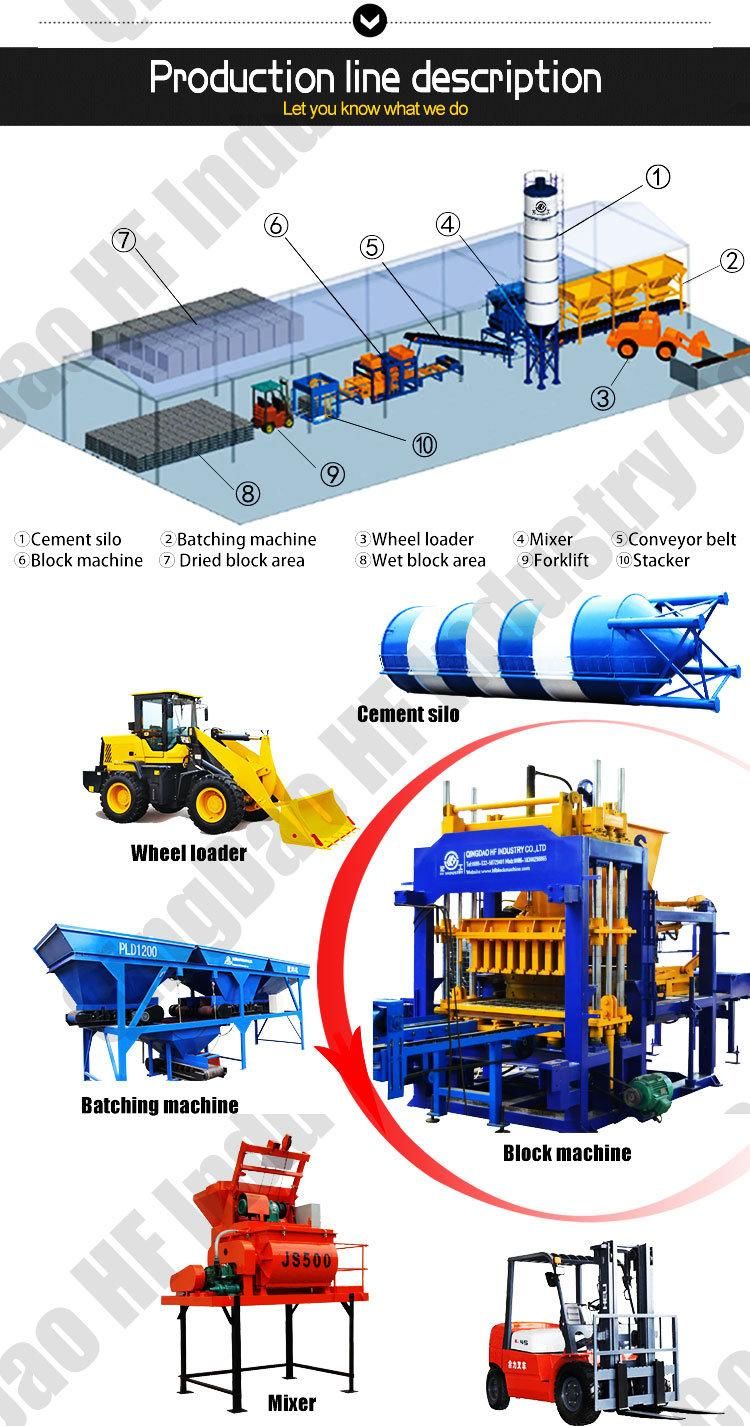

                                                                                              QT5-15 Block Machine Production Line
Qt5-15 Hydraulic Paving Brick Making Machine Block Maker Machine
Qt5-15 Hydraulic Paving Brick Making Machine Block Maker Machine

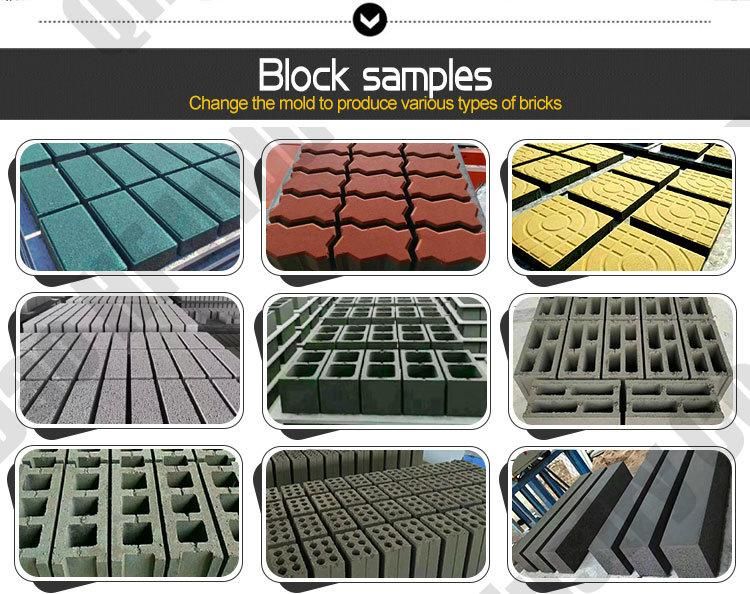

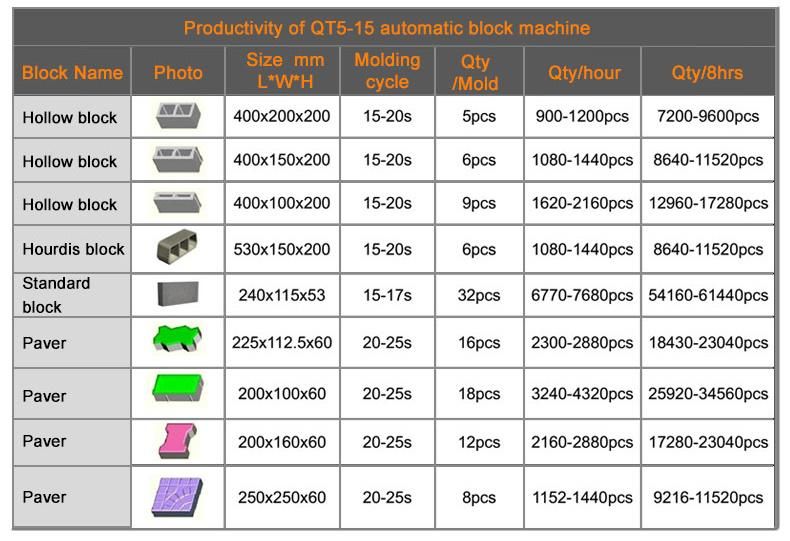

                                                                                                                                                Block Capacity and Samples

Qt5-15 Hydraulic Paving Brick Making Machine Block Maker Machine
Qt5-15 Hydraulic Paving Brick Making Machine Block Maker Machine
