• Model NO.：C10
• Color：as You Like
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• After-Service：Door to Door
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：6800*1500*1500
• Trademark：KXD
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. C10 Color as You Like Trade or Factory Factory Guarantee 1 Year Life Time 10 Years Service Provide Engineer to Install The Machines Brand Name of PLC as Customer Request Drawing Designed as Customer Request Power 38V, 50Hz, 3 Phrase or as Your Like Decoiler Type Manul, Electric, Hydraulic Control System PLC After-Service Door to Door Transport Package Main Machine Nude Packing with Plastic Film Specification 6800*1500*1500 Trademark KXD Origin China HS Code 8455221000 Production Capacity 30 Sets Per Month

Product Description

   C10 russia popular metal wall sheet  roll forming machine

  china manufacturer


1. the advantage of C10 metal wall sheet  roll forming machine

it has reasinable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the costomer with limit area or site operation.

2. Main Parameter and specification of the  c10 metal wall sheet forming machinery

We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.

Configurations: 5t manual uncoiler, forming machine, cutter, hydraulic system, controller, output table
    1.Control: full-auto PLC inverter encoder

    2.Station: 11stages

    3.Main power: 4KW

    4.Pump power: 3KW

    5.Roller dia: Φ80mm

    6.Line speed: 14m/min

    7.Coil width: 1250mm

    8.Cover width: 1160mm

    9.Coil thickness: 0.35-0.8mm

    10.Blade STD: Cr12 hardening treatment

    11.Roller STD: 45#steel hardening with Chrome coating

    12.Overall size: 6000mm×1550mm×1450mm

    13.Weight: about 3.5 tons

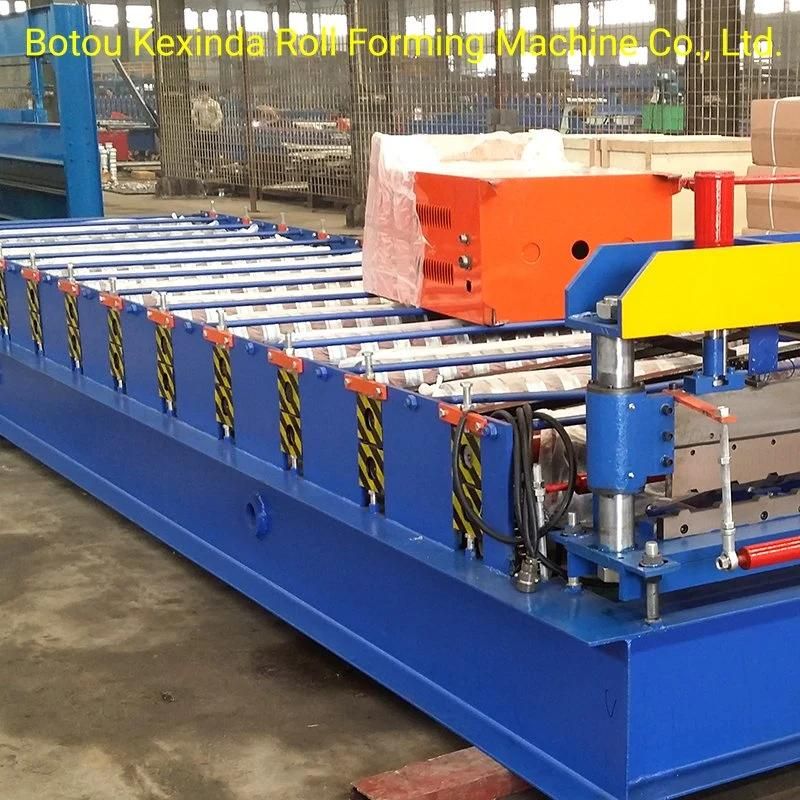

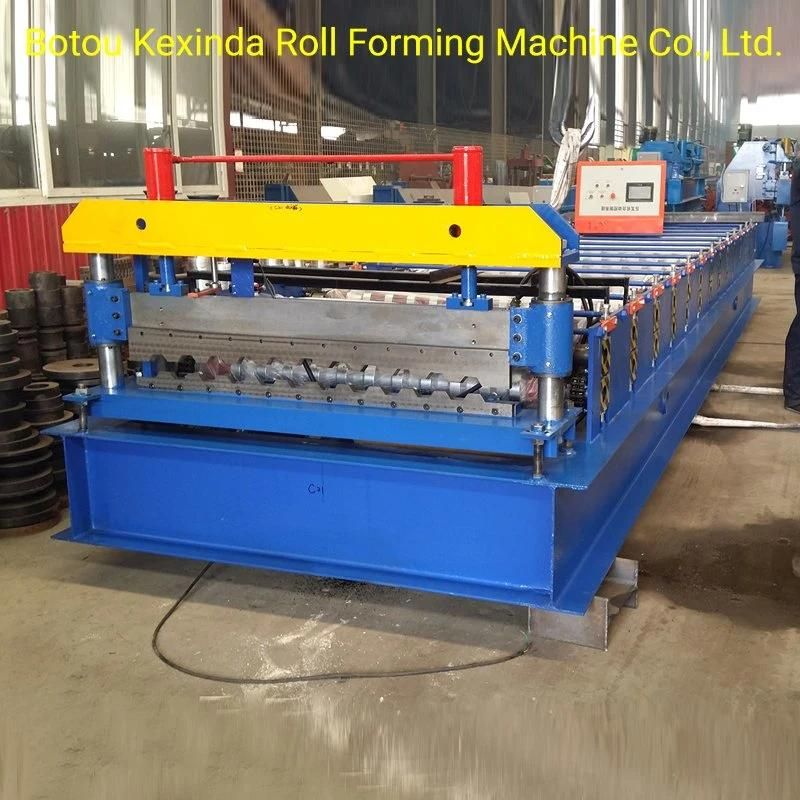

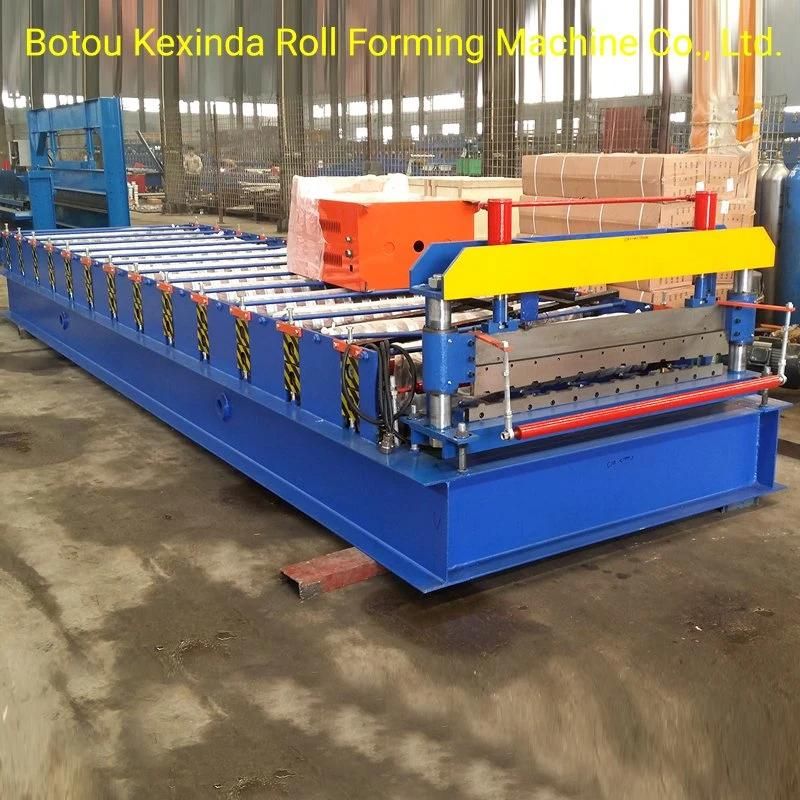

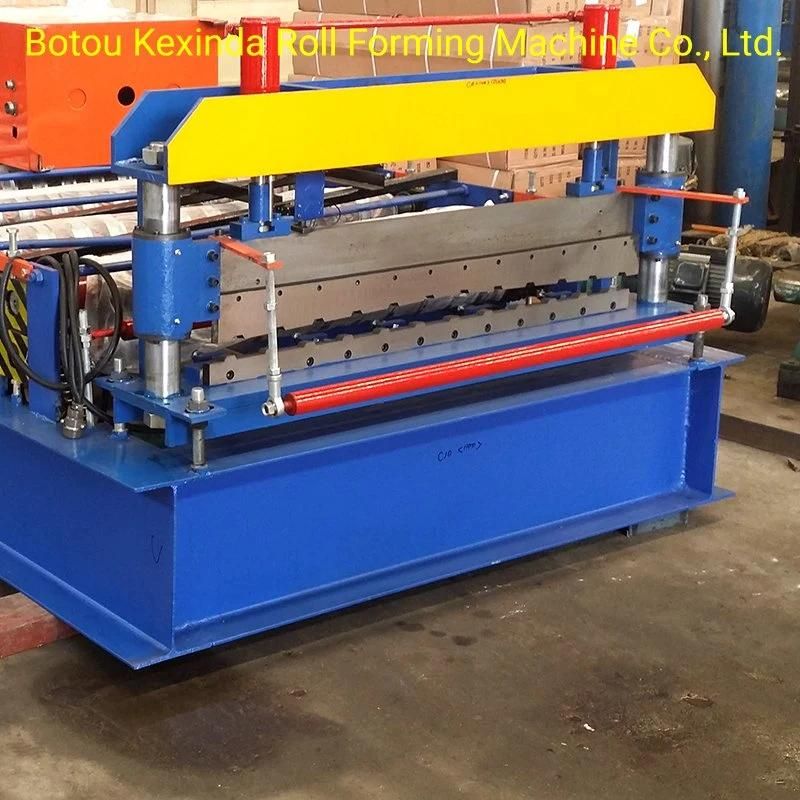

3.the picture of the c10 metal sheet machinery







4.Packaging & Shipping
Main machine is nude, the computer control box is packed with wooden fram



5.FAQ



1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.



3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
