• Model NO.：request
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Transport Package：Nude
• Specification：3.2m
• Trademark：dixin
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：20 Set Per Month

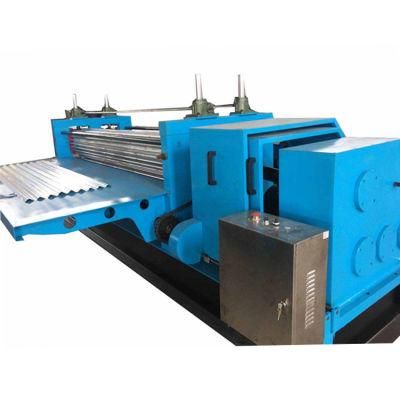

Popular design Barrel Type Galvanized thin sheet Corrugated MachineMain motor power11kwDrivesingle chainTypeBarrel corrugatingPitch76mm(+/-2.0mm)Depth18mm(+/-1.5mm)Plate length axis320 pairsSheet forming roll380 pair (welded)Roll station2 groupsRaw material of sheets0.12-0.4mm thick galvanized steelGuide feeding typeWelded steel structure with stopper for setting width.Feeding length of sheetMaximum 3700mmFeeding width of sheet1000mmWorking speed15-20 pieces per minutesWeight of machineabout 6.5 tonSize of machineAbout 5800*2300*1700mm L x W x HColor of machineYellow and blueVoltage380V 50HZ,3phase or according to customer's request

3.Character of main structure:

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4. It is very easy to install the equipment and suitable for producing in the factory.
5. Low noise with high efficiency.

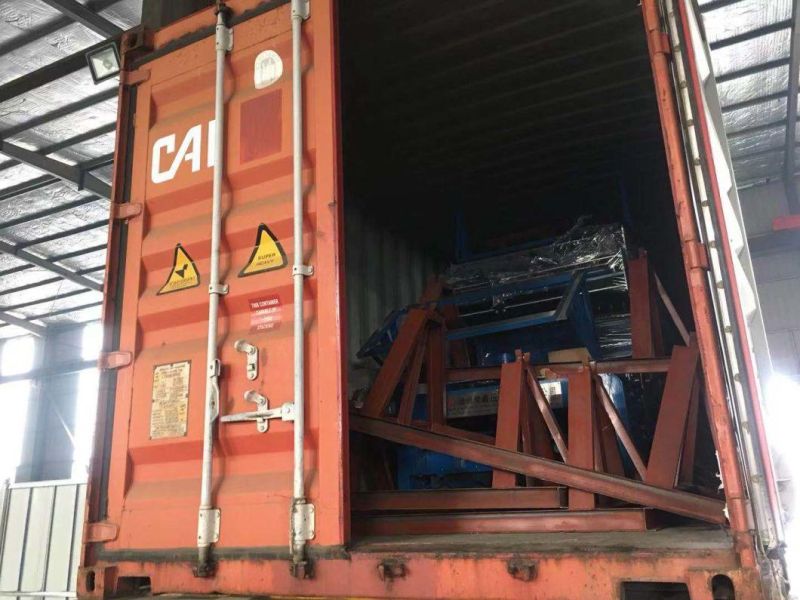

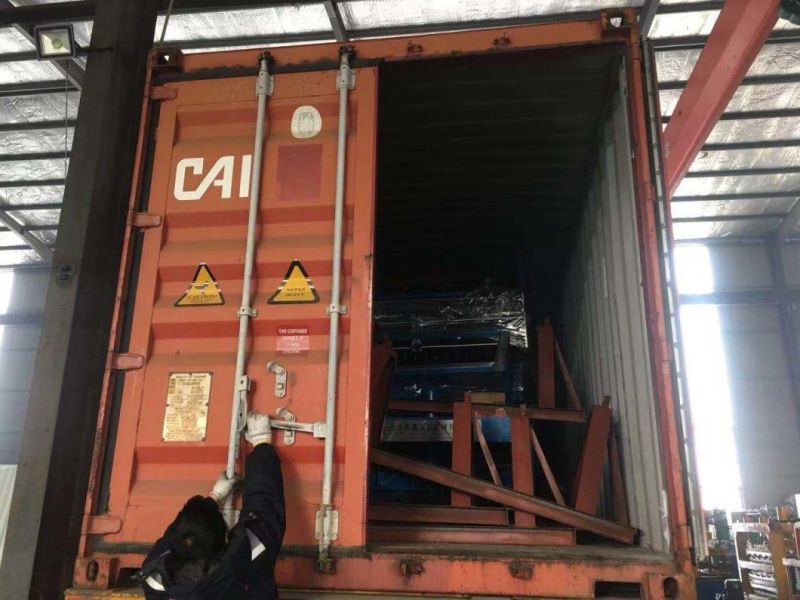

4.Packing and shipping details

1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

2.Port:TIANJIN XINGANG PortLead .

3.Time: Shipped in 35 days after payment.

Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.

 We are well recognized manufacturer and supplier of Cold Roll Forming Machine which are supplied to various industries across the nation. Our products are technically advance and designed with the use of latest standard features and functions. These products are highly durable and easy to use. We guarantee superior quality which are duly tested and provided in stipulated time frame

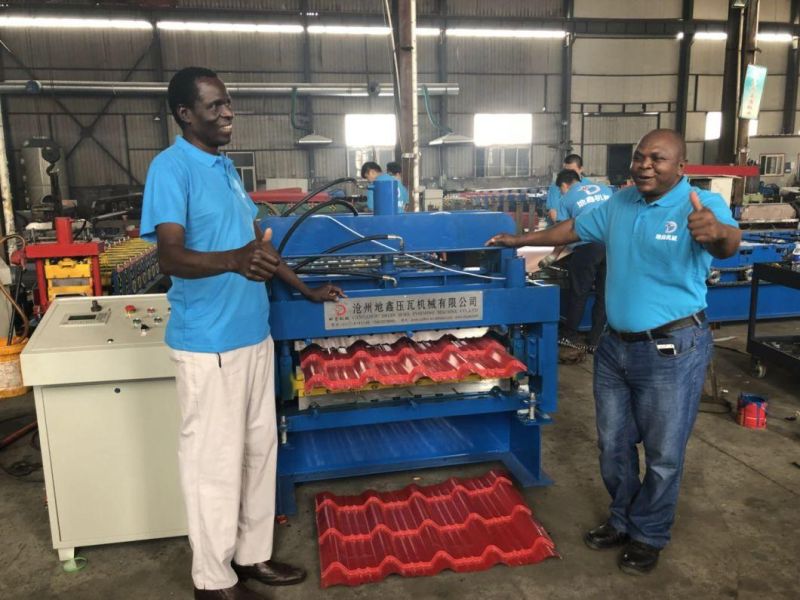

Customer visit
Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile ,CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame,guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.



If you need any more information, be free to contact us.We will reply within 12 hours!

If there is anything we could do for you, pls feel free to contact us
