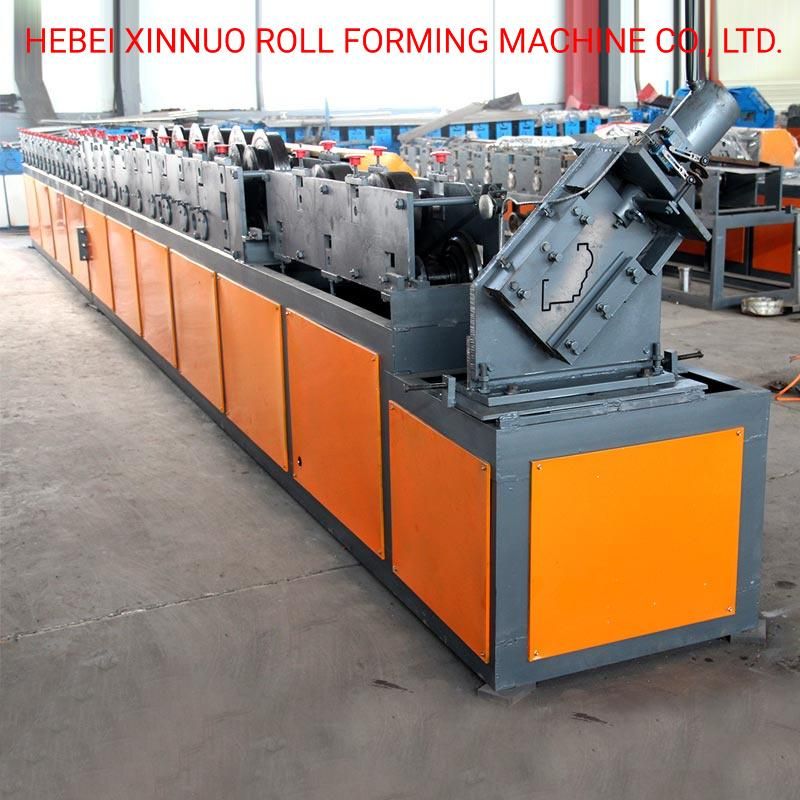

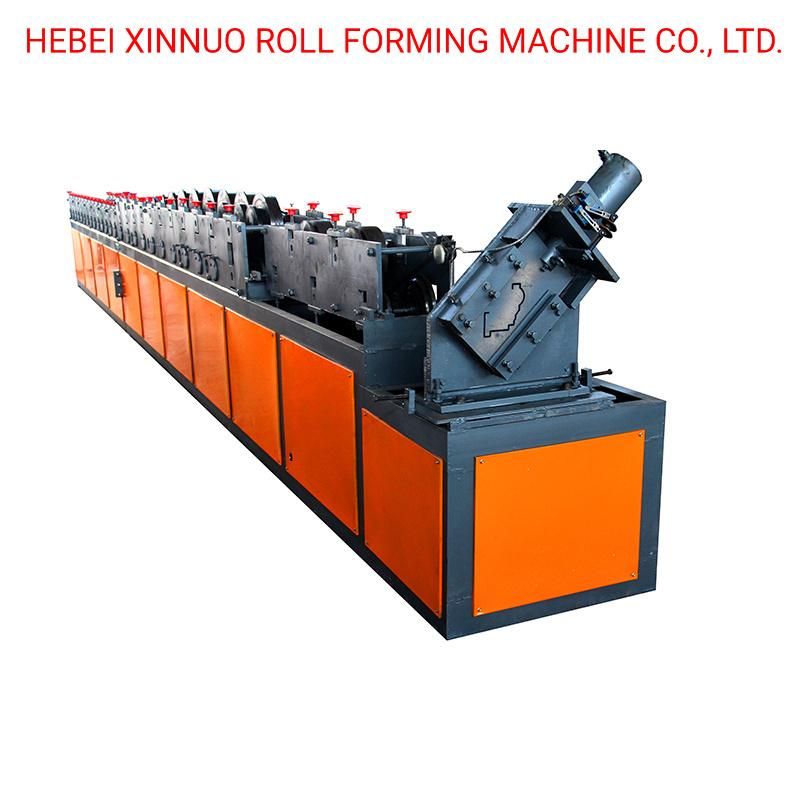

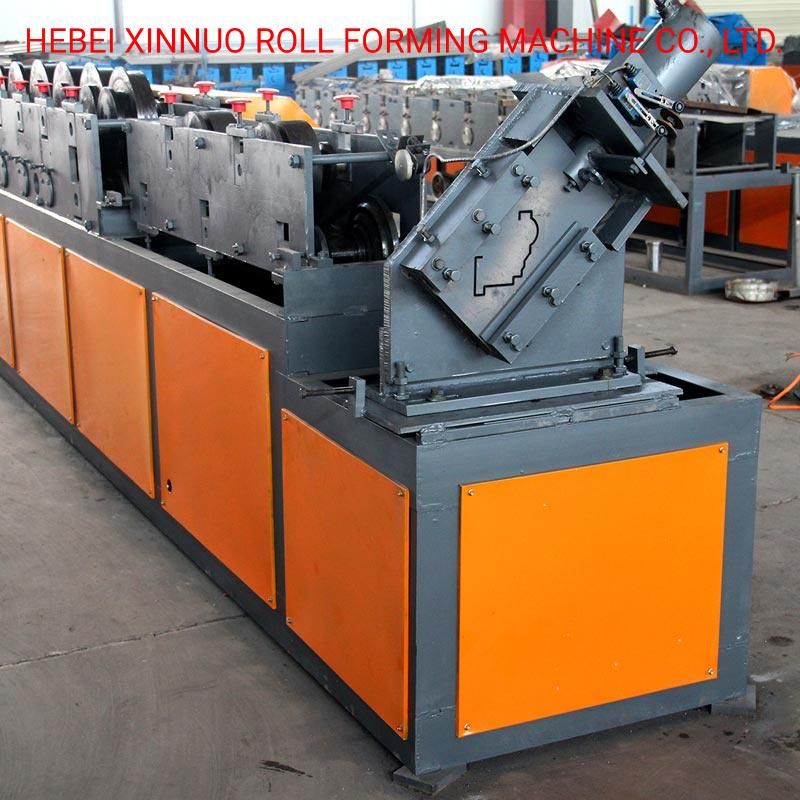

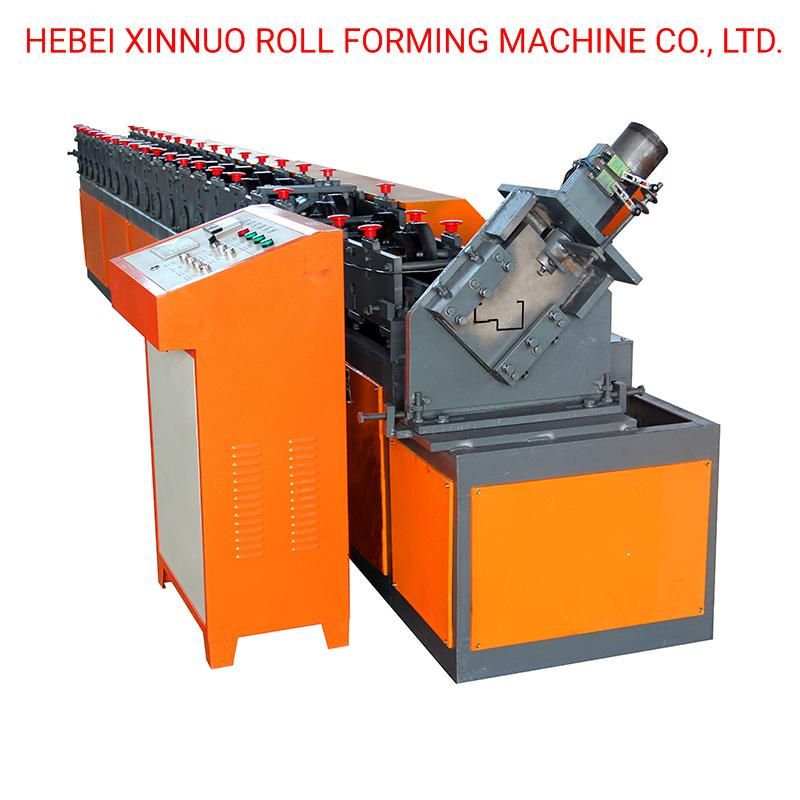

Automatic Galvanized Steel Plate Roller Shutter Door Frame Cold Roll Forming Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Door
  • Transmission Method：Electric

Base Info

  • Model NO.：door frame machine
  • Diameter of The Roller：Φ70 mm
  • Rolling Material：Carbon Steel 45#
  • Main Motor Power：7.5kw
  • Transport Package：Naked
  • Specification：KEXINDA
  • Trademark：KEXIDNA
  • Origin：China
  • Production Capacity：2000 Sets,Year

Description

Main parameter of door frame roll forming machine1Suitable to processSteel, galvanized sheet and etc2Width of the plateAs customer need3Thickness of the plateAs customer requirement4De-coiler Manual one, can load 5 tons raw material5Rollers for forming 16 rows6Diameter of the rollerΦ70 mm7Rolling materialCarbon Steel 45#8Main motor power7.5kw9Productivity8-15m/min10Cutting methodHydraulic mould cutting 11Material of the cutting bladeCr1212Hydraulic cutting power 3kw13Processing precisionWithin 1.00mm14Control systemDelta PLC control15Side panel of machine14mm16Main structure of the machine300 H steel17Weight About 3.6T18Dimensions7.5*1.2*1.4m19Voltage380V 50Hz 3phases(changeable as needs)20Certificate CE/ISO/TUV
