• Model NO.：Cy1-25
• Moulding Cycle：20-30s
• Power：4kw
• Products：Soil Interlocking Bricks
• Operator：2-3
• Transport Package：Plywood Box with Iron Angle Frame
• Specification：Electric brick machine
• Trademark：Chuangyun
• Origin：China
• HS Code：8474802000
• Production Capacity：30sets , Month

Basic Info.

Model NO. Cy1-25 Moulding Cycle 20-30s Power 4kw Products Soil Interlocking Bricks Operator 2-3 Transport Package Plywood Box with Iron Angle Frame Specification Electric brick machine Trademark Chuangyun Origin China HS Code 8474802000 Production Capacity 30sets / Month

Product Description

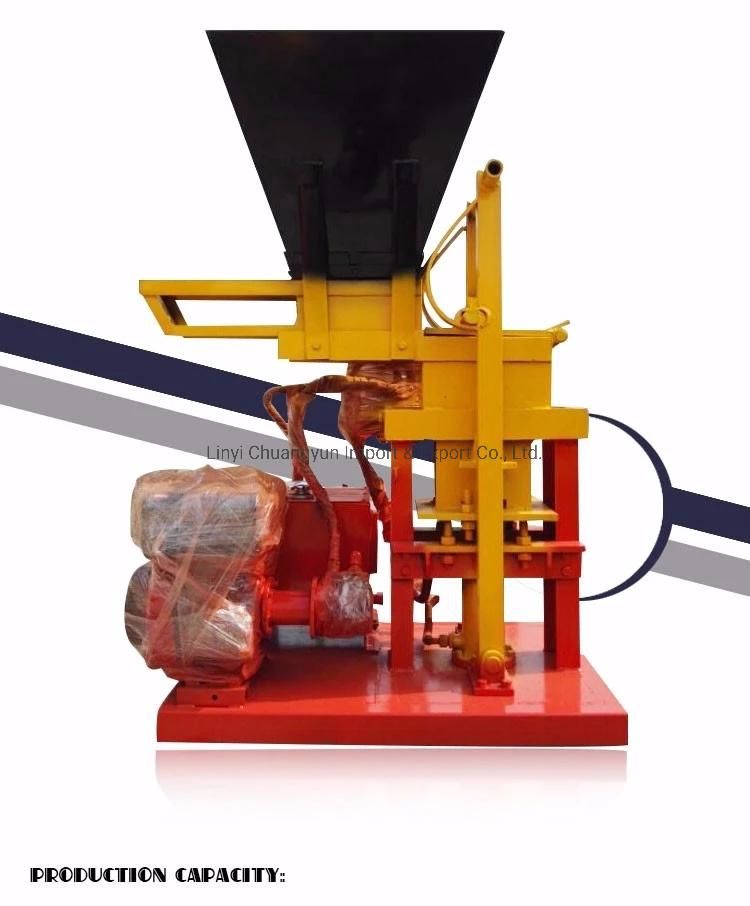

CY2-25 Eco Brava Clay Interlocking Brick Making Machine








Features:

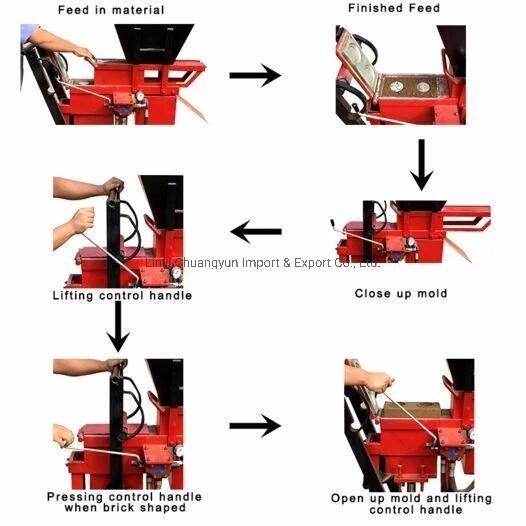

1. ECO BRAVA clay block machine is our newest clay and cement brick making machine. It is manual operation machine, but only need 1 people.

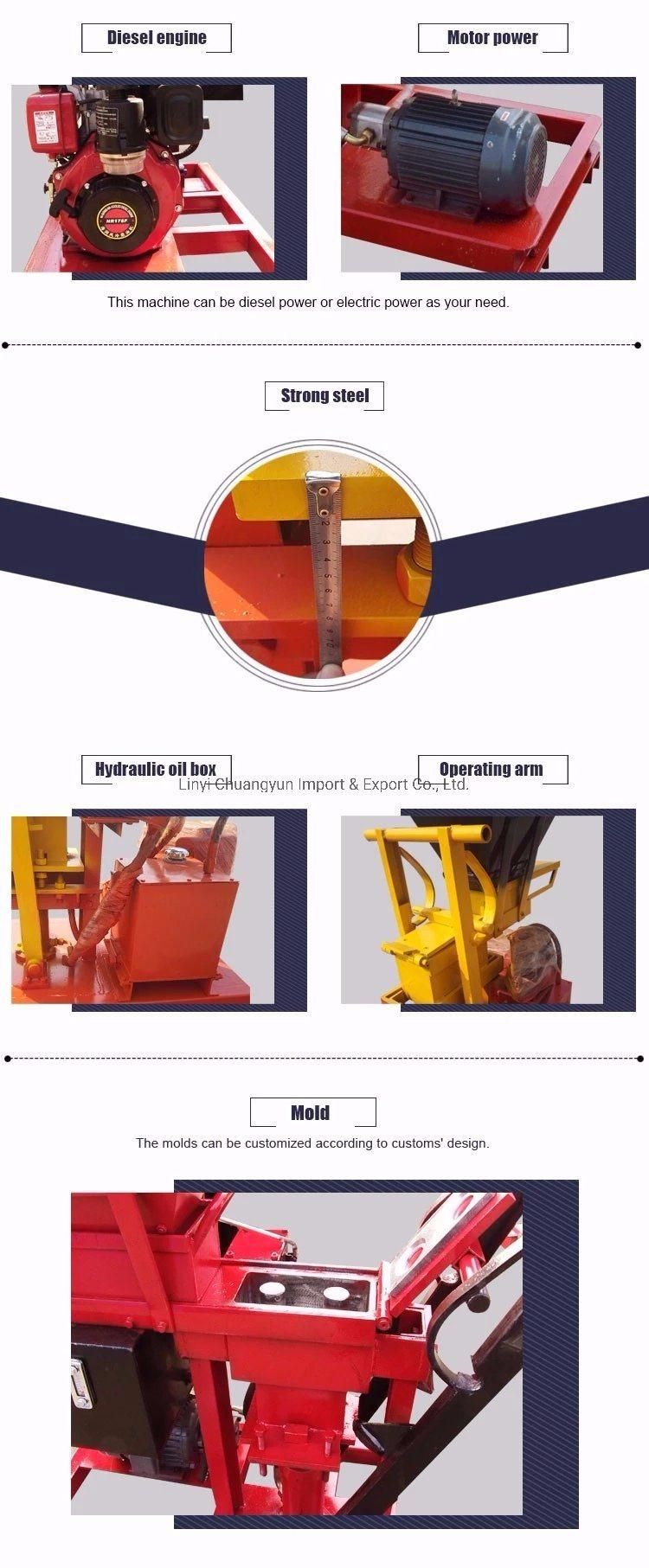

2. You can choose diesel engine or electric motor. This machine enable to produce varied models of blocks, bricks and floors in only one equipment, without the need of buying another machine.
3. Manufactured with precision in a Machining Center, its interior receives a thermal treatment and is rectified. Compound by modeler wombs interchangeable enabling flexible of different forms and models for the pressed blocks, bricks and floors.





Technical specifications:

Machine power	Electric or diesel engine
Molding cycle	20s
Capacity	1400pcs/8hours

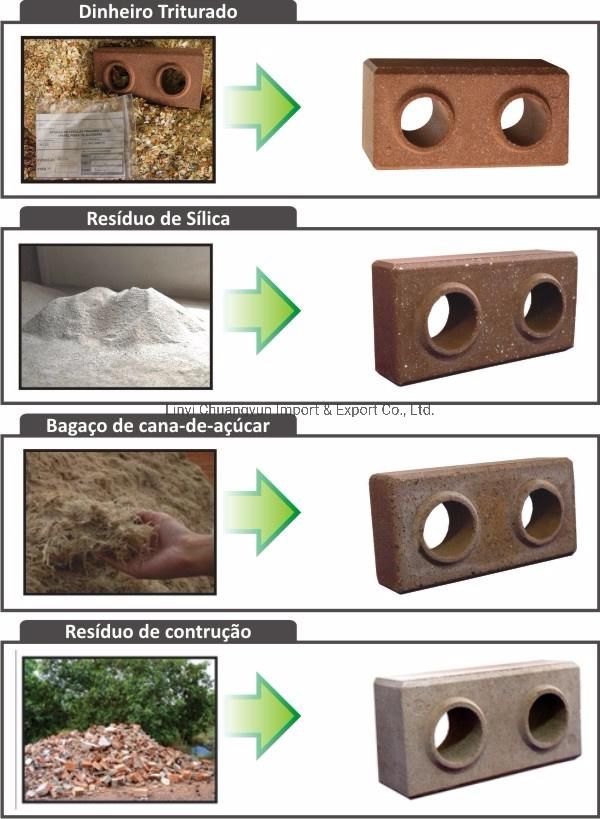

Raw material	clay,soil,earth,mud,concrete, sand,cement, fly ash,etc.
Machine weight	500KGS
Overall size	1200*800*1750mm
Worker	1 people
Hydraulic pressure	16 Mpa

Production capacity

No.	Block size	Pcs/mould	Pcs/hour	Daily capacity
1	300*150*100mm       or 250*125*75mm	1	180-200	1400-1500



 Applied fields: It is widely used in buildings, road paving, squares, gardens, landscaping, city constructions etc.
