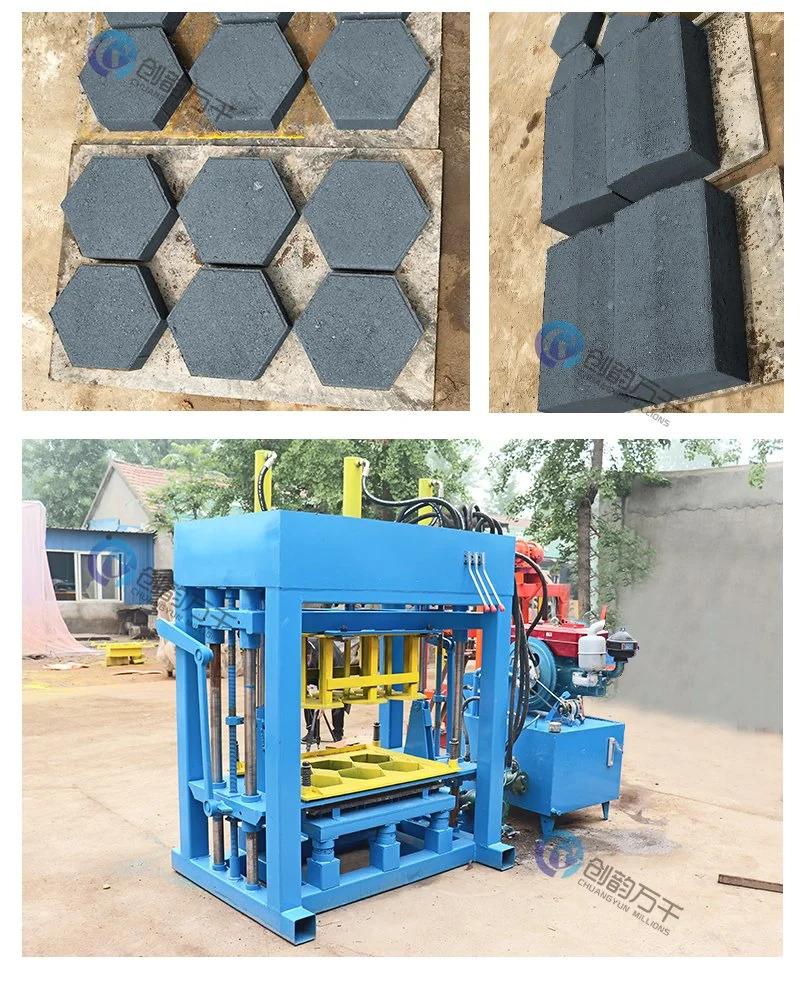

Qt 4-30 Brick Machine Making Hollow Cement Brick Machine Concrete Block Moulding Machine
Linyi Chuangyun Import & Export Co., Ltd.- Warranty：1 Year
- Certification：CE, ISO, SGS,Co,Coc,Pvoc,Soncap
- Customized：Customized
- Automatic Grade：Manual
- Type：Hydroforming
- Model：Qt4-30 Block Making Machine
Base Info
- Model NO.：QT4-30
- Machine Type：Paving Block Making Machine
- Workers：2-3 Operators
- Diesel Engine Brand：Changchai
- Machine Power：15HP , 11.5kw
- Hydraulic Pressre：16MPa
- Working Area：400-1000m2
- Machine Operation：Easy and No Need Special Training
- Machine Capacity：2000-5000 Blocks , Day
- Why Choose：Easy Operation & Easy Maintenance
- Power Source：Diesel Engine , Electric Motor

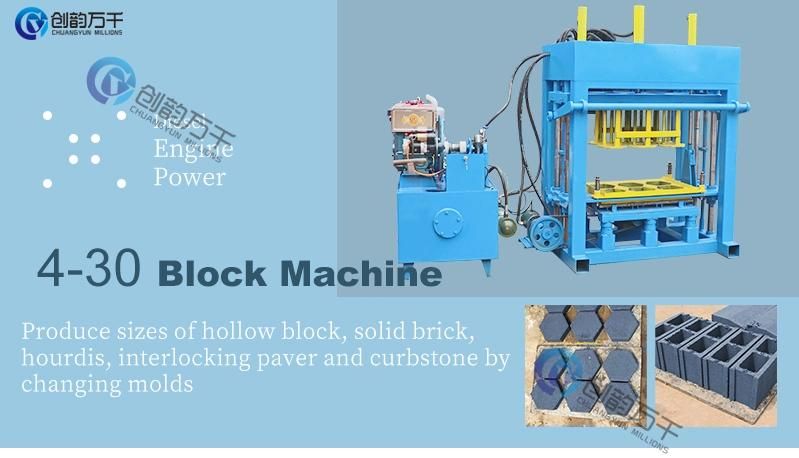

- Block Type：Solid Blocks, Pavers, Hourdis, Curbstones
- Feature：Hydraulic Diesel Block Machine
- Characterisitc：Cheapest Paving Block Machine
- Transport Package：Plywood Box with Iron Angle
- Specification：235 steel for machine frame
- Trademark：CYUN
- Origin：China
- HS Code：8474802000
- Production Capacity：5000 Sets ,Year
Description
Total: QT4-30 block making line total power is 20HP
3. Main technical parameter
QT4-30 diesel hydraulic paving block machine technical parameter
3. Worker Numbers : 4-5 Workers
Two Workers to load material into mixer
One Worker to operate block machine and add pallet to block machine
One or Two Workers to carry fresh blocks to curing sites.
4. Factory Area for QT4-30 cement brick making line: 600-1000M2
Shelter for Machines: 30M2 (6*5mm)
5. Pallet Number: 600pcs pallet for QT4-30 diesel hydraulic hollow brick machine.
Bamboo pallet, fiber (GMT) pallet and PVC pallet are available. According to Experiences and Feedback from our customers, we recommend you the Fiber Pallet:
Need any information and updated price, please send inquiry. We looking forward to growing with you!

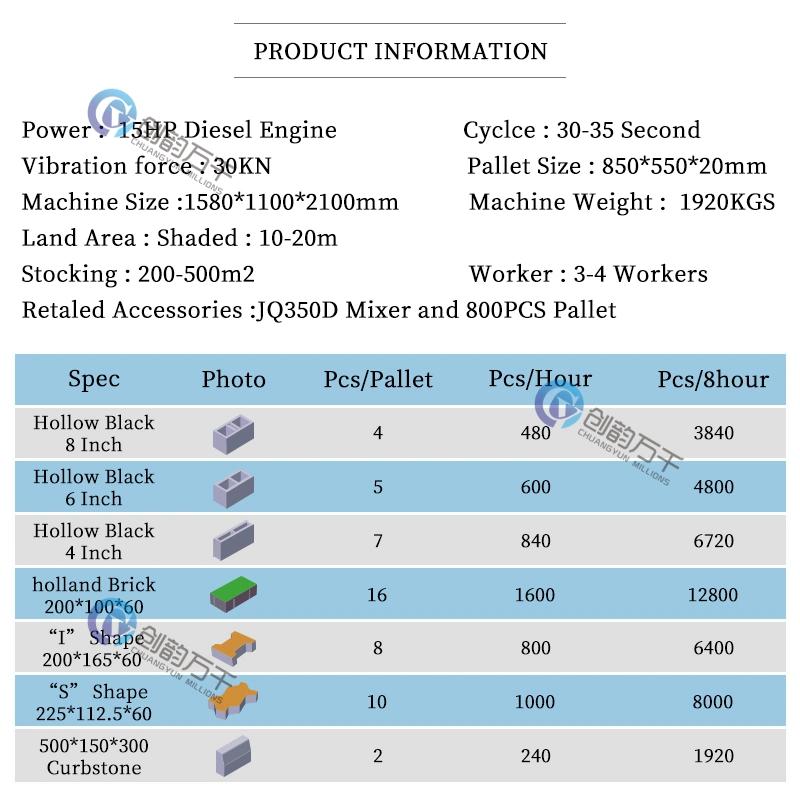

3. Main technical parameter
QT4-30 diesel hydraulic paving block machine technical parameter
| Dimension of host machine | 1850x1330x2150 (LxWxH) |
| total machine power | 13.34 kW(18.0 HP) 2200 r/min |
| cycle per mould | 30s |
| Dimension of diesel engine hydraulic station | 1400x900x1320mm (LxWxH) |
| Diesel engine specification | Changchai ZS1105 |
| Weight | 1300KGS |
| Pallet size | 850x550x20mm |
| Block type | block, paver, curbstone and so on |
| Oil consumption | 2L/H |

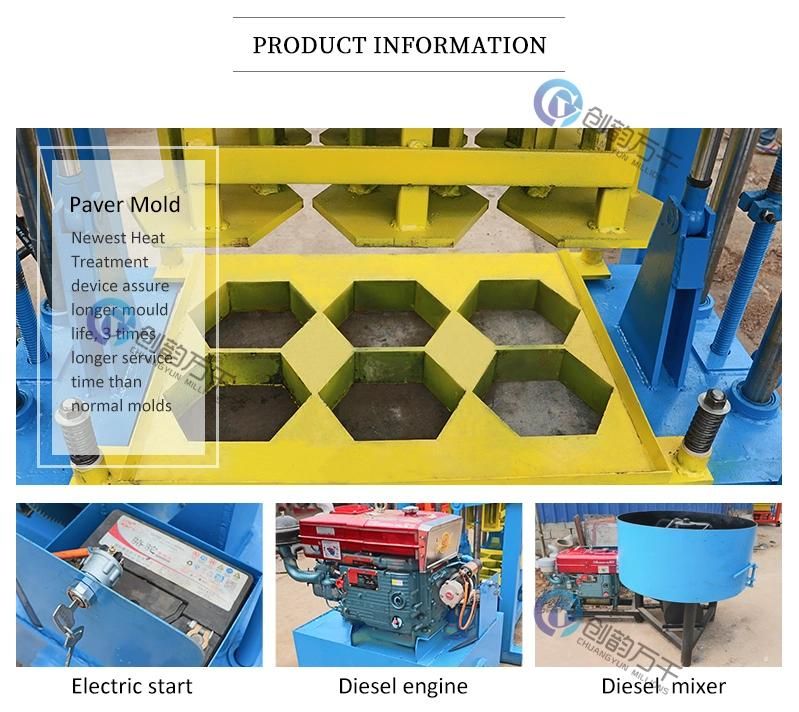

| Diesel engine starting mode | Electric start |
| Rated pressure | 15Mpa |
| Vibration force | 30KN |
3. Worker Numbers : 4-5 Workers
Two Workers to load material into mixer
One Worker to operate block machine and add pallet to block machine
One or Two Workers to carry fresh blocks to curing sites.
4. Factory Area for QT4-30 cement brick making line: 600-1000M2
Shelter for Machines: 30M2 (6*5mm)
5. Pallet Number: 600pcs pallet for QT4-30 diesel hydraulic hollow brick machine.
Bamboo pallet, fiber (GMT) pallet and PVC pallet are available. According to Experiences and Feedback from our customers, we recommend you the Fiber Pallet:
Need any information and updated price, please send inquiry. We looking forward to growing with you!
