• Model NO.：ZY60
• Trademark：Zhangyun
• Origin：Zhangjiagang City
• HS Code：8515219000
• Production Capacity：15 Sets,Month

Firmer Diameter of Coil ,mm

480~610

Outer Diameter of Coil ,mm

Max 1600

Width of strip ,mm

60~190

Weight of Coil , max ,ton

2.0

Structure

Double-mackerel

Drum Expansion

Manual

Swivel

Manual



Shear Welder

Shearing Width ,mm

60~190

Thickness of Strip ,mm

0.5~2.0

Welding Speed ,m/min

0.59~0.9

Moving of Torch



Clanking of Strip During Welding

Pneumatic

Welding of Strip

Ar Shield Welder

Adjust of Up and Down

Manual



Pinch Roll Assembly

Feeding Speed ,max ,m/min

210

Up and Down of Pinch Roll

Pneumatic

Material of Pinch Roll

Cr12

Height Guide Roll Assay

1

Entry Guide Roll Assay

1

Motor, kW

7.5



Accumulator

Diameter

4.5m

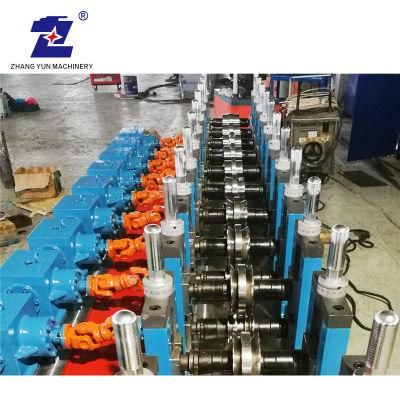

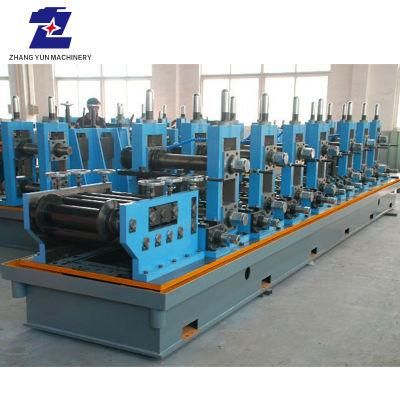

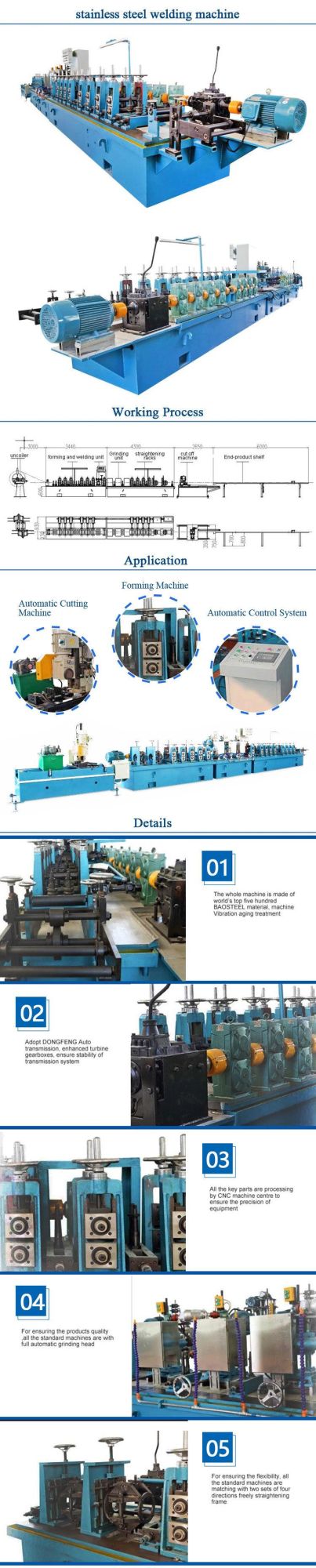

Forming and Sizing Mill

Material

Low carbon steel & low alloy steel
σb≤500Mpa σs≤300Mpa

Diameter of Pipe ,mm

20~60

Thickness of Strip ,mm

0.5~2.0(for round pipe)
0.5~1.5(for square and rectangular pipe)

Width of Strip ,mm

60~190

Main Motor Power ,kW

110KW×1set

H.F.Power, kW

150KW

Forming Mode

Roll forming

Stand

Portal style

Forming Speed, m/min

Max80

Entry Guide

1

No. Of forming stands

- horizontal 8
- vertical 8

No. Of sizing stands

- horizontal 6
- Vertical 6

Seam Guide Roll Stand

1

Squeeze Roll Stand

1

Bead Scraper

2

Cooling Zone

1

Driving Roll Shaft Diameter, mm

40Cr, Φ50

Side Roll Shaft Diameter, mm

40Cr, Φ30

Turks Head

4-roll style. 2

Reduction Gear Box

Bevel Gear Box

Driving System

BS Euro herm



Flying Saw

Outer Diameter of Pipe, max, mm

20-60

Wall Thickness, max, mm

0.5-2.0

Cut-to-length, m

4.0~12.0

Cutting Motor Power, kW

AC 5.5

Traveling Motor Power, kW

DC 15

Cutting Accuracy, mm

0~6

Control

Computer

 FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
