Glasino CNC Aluminum Profile Bending Machine/Arch Window Making Machine
Shandong Glasino Machinery Co., Ltd.- After-sales Service:Provide Manual, Videos, etc.
- Warranty:1 Year
- Condition:New
- Certification:CE
- Automatic Grade:Automatic
- CNC or Not:CNC
Base Info
- Model NO.:LWYJ-60
- Voltage:380V
- Product Name:Aluminum Profile Metal CNC Arch Bending Machine
- Transport Package:Seaworthy
- Trademark:Glasino
- Origin:China
- Production Capacity:50 Sets,Month
Description
Basic Info.
Model NO. LWYJ-60 Voltage 380V Product Name Aluminum Profile Metal CNC Arch Bending Machine Transport Package Seaworthy Trademark Glasino Origin China Production Capacity 50 Sets/MonthProduct Description

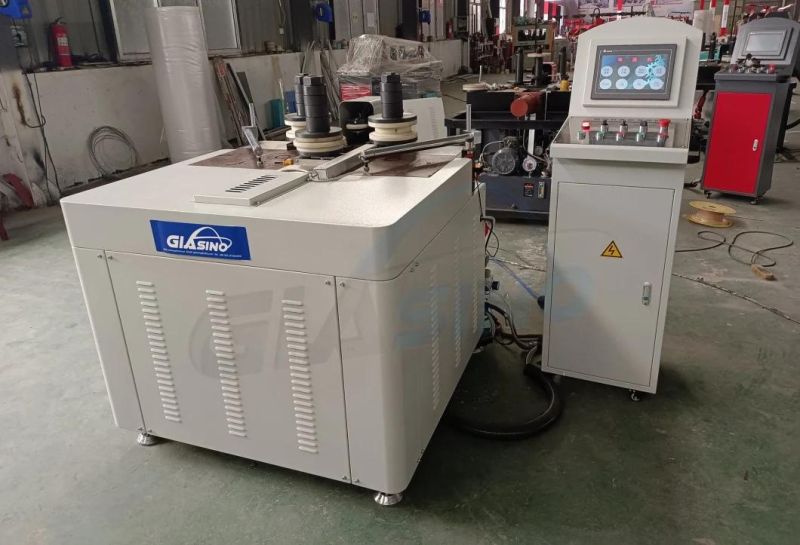

Glasino CNC Aluminum Profile Bending Machine/Arch Window Making Machine
Equipment Features for Glasino CNC Aluminum Profile Bending Machine/Arch Window Making Machine
Glasino automatic CNC Aluminum bending machine is suitable for bending arc machining of various metal profiles or special profiles (aluminum door and window profiles, thermal-break profiles).
Machine introduction:

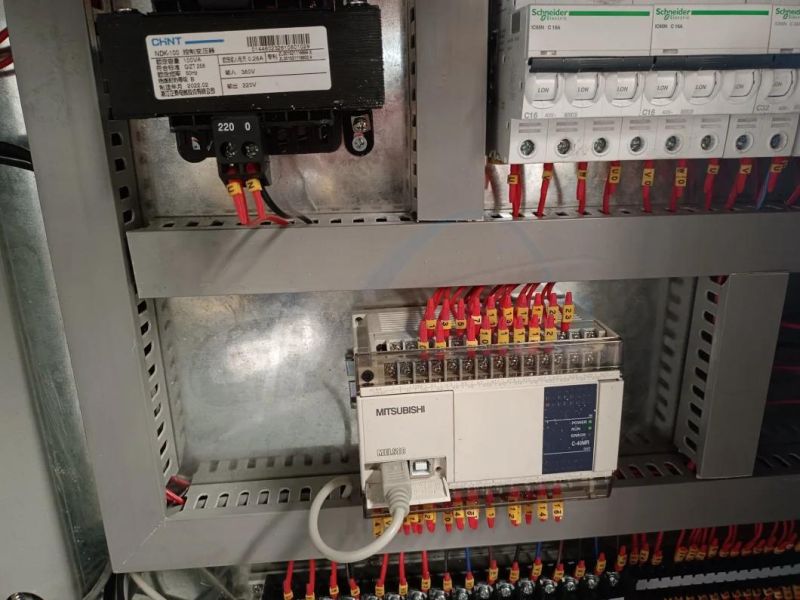

1. The machine adopts automatic CNC system(Mitsubishi, Siemens) and special arc bending software, which is easy and convenient to operate. Positional accuracy: +/-0.02mm.

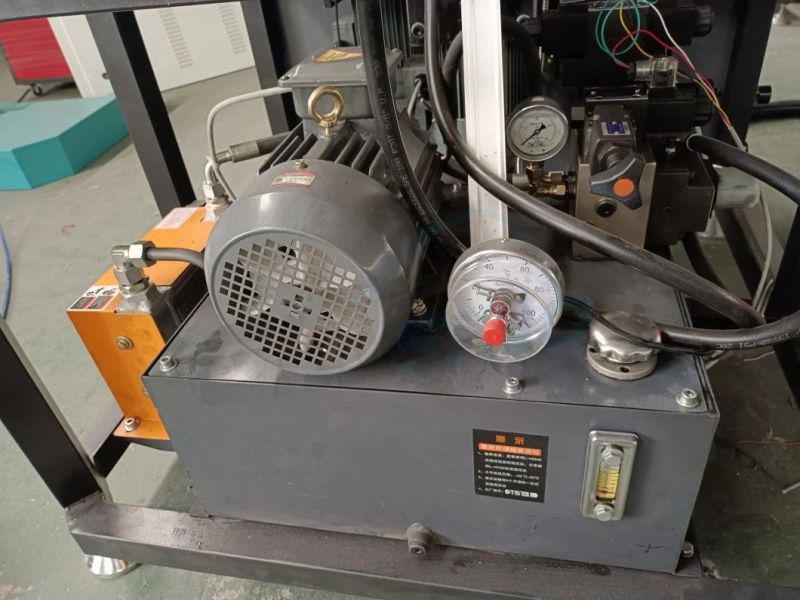

2. The max hydraulic pressure can be reached 20T that brings the easily bending of all kinds of aluminum profile and window sash (rectangular steel tube)
3. All products not only can be formed in once with high efficiency and zero wear rate, but also can be formed in many times.
4. Space of driving wheel is set according to user needs. It can be adjusted in different position, in other words, the position of two wheels can be adjusted to different space.
5. It not only can be bended into one radius arc (ordinary type C arc), but also two radius arcs (type U arc), and three radius arc (bread arc and ellipse).

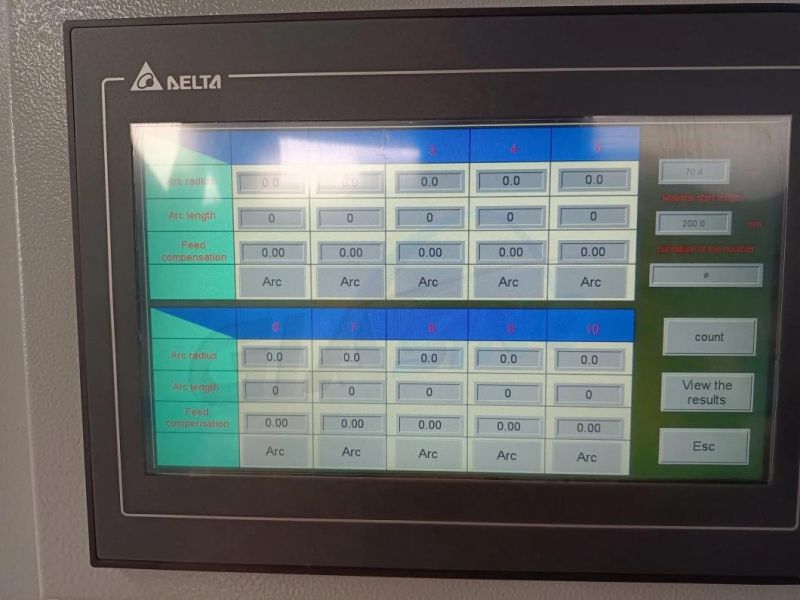

6. The machine can store a certain amount of procedure (depend on memory space), input information as detail as possible for easy recognition during next use.
7. It can bend all kinds of aluminum profile (ordinary aluminum profile, thermal break aluminum, aluminum-plastic-aluminum, aluminum plastic), rectangular steel tube, etc.
8. Various feeding speed can be adjusted during every procedure, which improves the workpiece quality and meets the requirement of productivity.
9. Mould is simple and useful; it can bend aluminum with radius 200 mm without wrinkles.

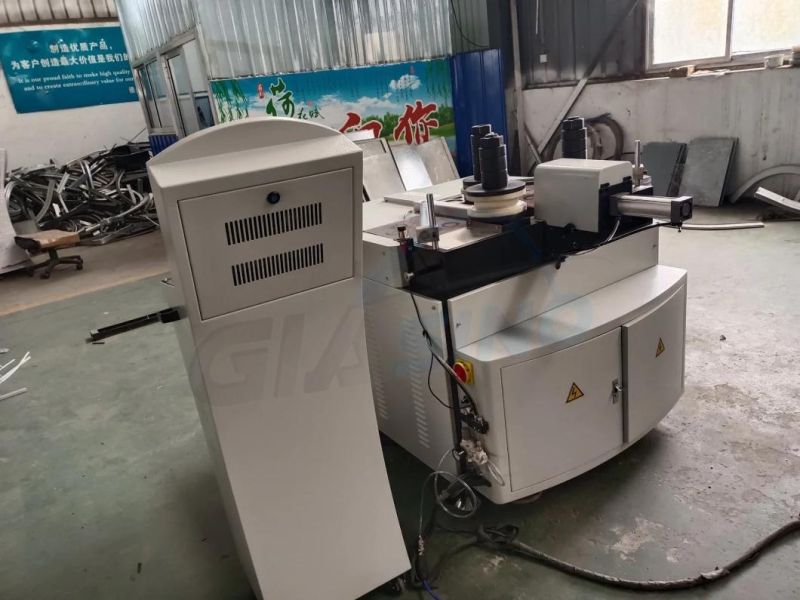

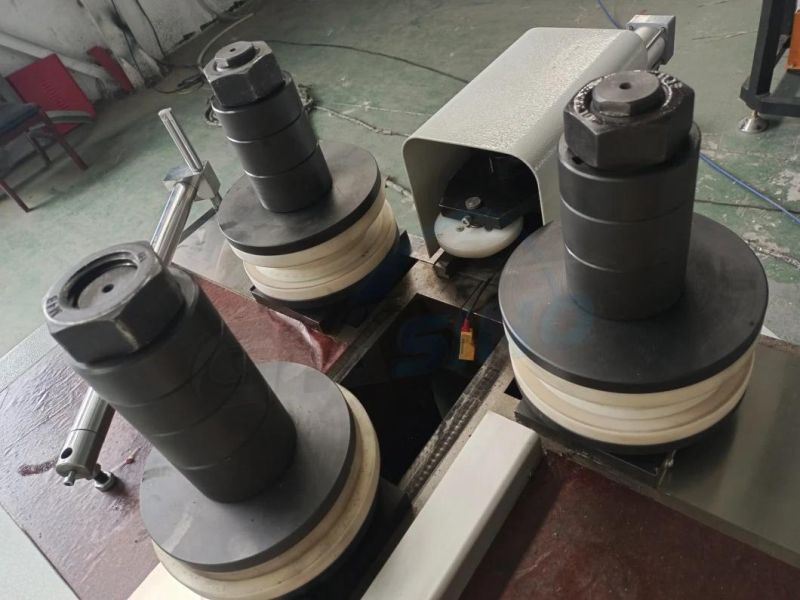

Details:

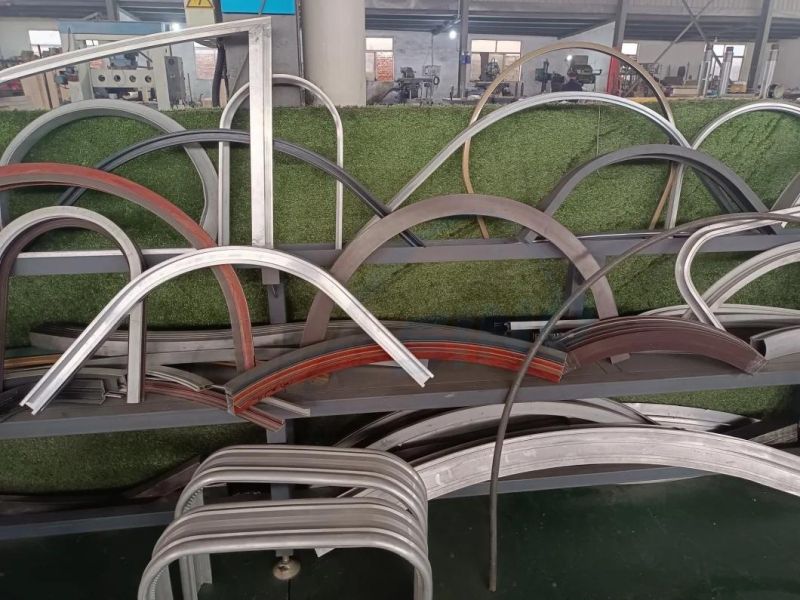

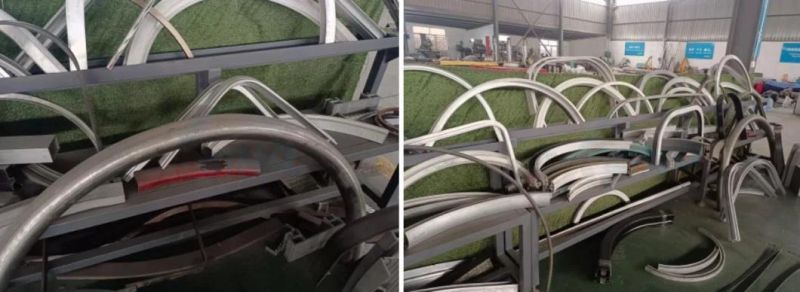

Working samples
Technical Parameter
Power | 380V 50Hz |
Motor power | 5kw |
Air pressure | 0.4-0.8 M pa |
Arc bending radius | R 80mm |
Fixed wheel center distance | 350-650mm |
Roller die max radius | φ250mm |
Hydrulic pressure | 20T |
Roller speed | 1-14r/min |
Roller dimension | R 60mm |
Up roller positioning | 0.05mm |
Up roller route | 280mm |
Overall Dimension | 1200×1100×1100mm |
Weight | 850Kg |
Exhibition
FAQ
1.Are you a factory or a trading company?
We are factory
2. How long is the equipment warranty?
One year.
3. How to provide after-sales service?
Provide on-site installation, commissioning, and training. Free accessories within one year. Provide remote
service and video guidance.
4. How long is the delivery time?
20-25days after receiving the deposit.
