• Model NO.：QT5-15
• Power：26.5kw
• Pallet Size：1100X550mm
• Vibration Force：100kn
• Color：Blue or Customized
• Name：Qt5-15 Automatic Hydraulic Block Making Machine
• Transport Package：Container
• Specification：5120x1950x2810mm
• Trademark：HF
• Origin：Shandong, China
• HS Code：8474802000
• Production Capacity：10000PCS,Day

Basic Info.

Model NO. QT5-15 Power 26.5kw Pallet Size 1100X550mm Vibration Force 100kn Color Blue or Customized Name Qt5-15 Automatic Hydraulic Block Making Machine Transport Package Container Specification 5120x1950x2810mm Trademark HF Origin Shandong, China HS Code 8474802000 Production Capacity 10000PCS/Day

Product Description

Qt5-15 Automatic Hollow Block Making Machine Line Interlocking Block Machine
Siemens brand PLC control system / Siemens Motor / Omron Switch / International Standard Steel / Manganese steel mold


Product Introduction
1) QT5-15  Automatic Hollow Block Making Machine Line Interlocking Block Machine Solid Brick Machine to make money according to the standard of intenational.
2) The vibration system contains platform vibration and mould vibration, so the products is very close-grained and produced quickly.
3) Machine frame: Maganese steel with China national standard.
4) PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function.
5) The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.


 Technicals

Model	QT5-15
Rated pressure	16Mpa
Dimension	5120*1950*2810mm
Forming Cycle	15-20s
Vibration form	Platform vibration
Weight	5500kg
Power	26.5kw
Vibration force	100KN
Working area	1500 sq.m
Pallet size	1100x550mm

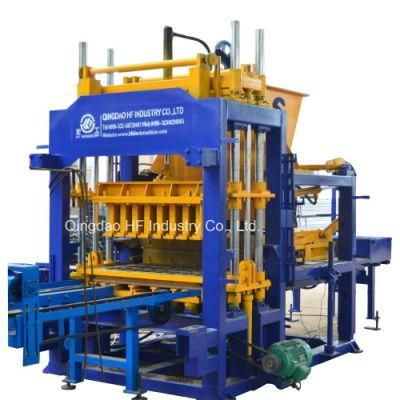

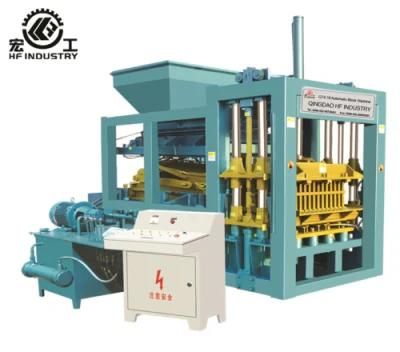

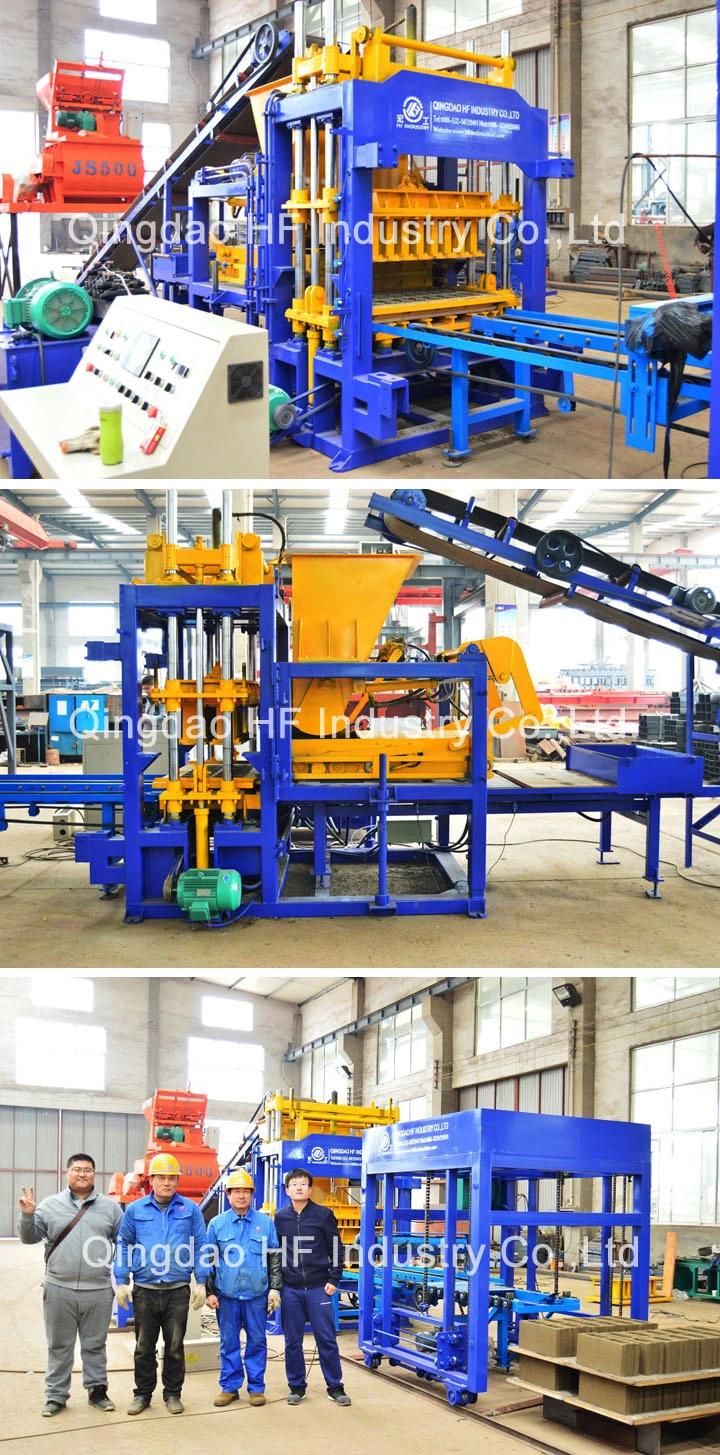

Machine pictures

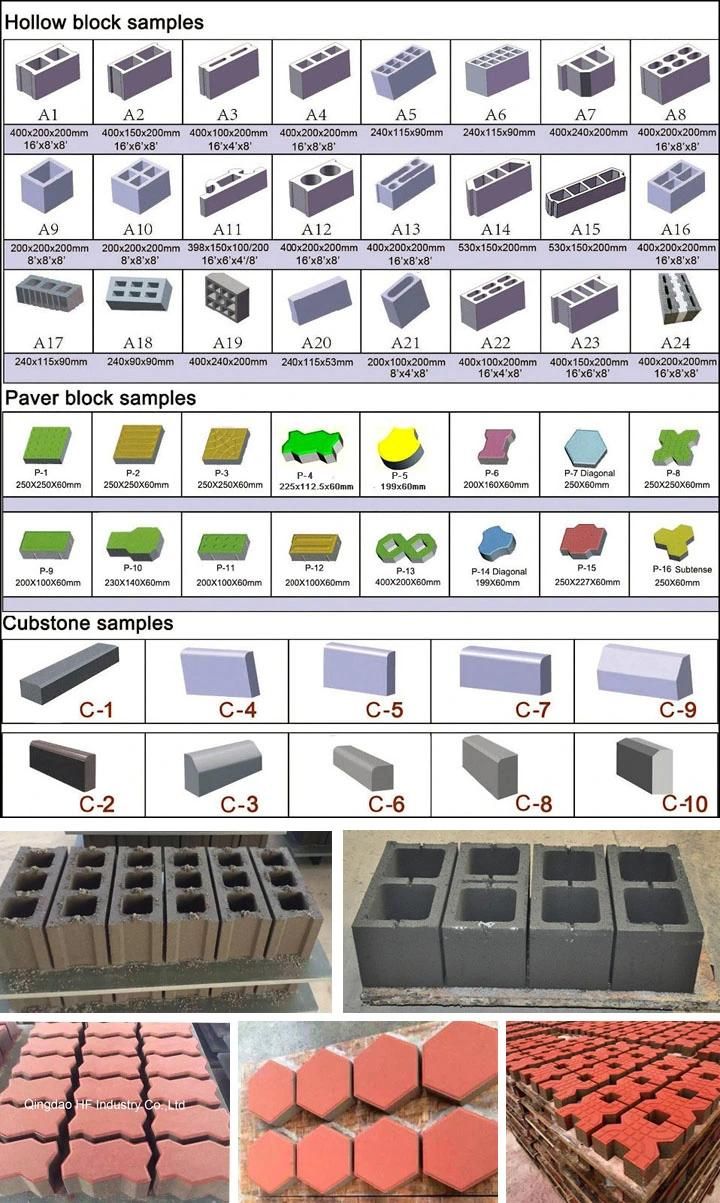

Block samples

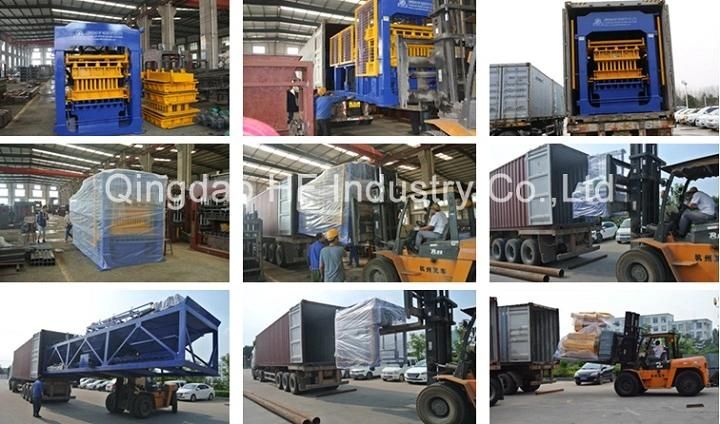

Loading

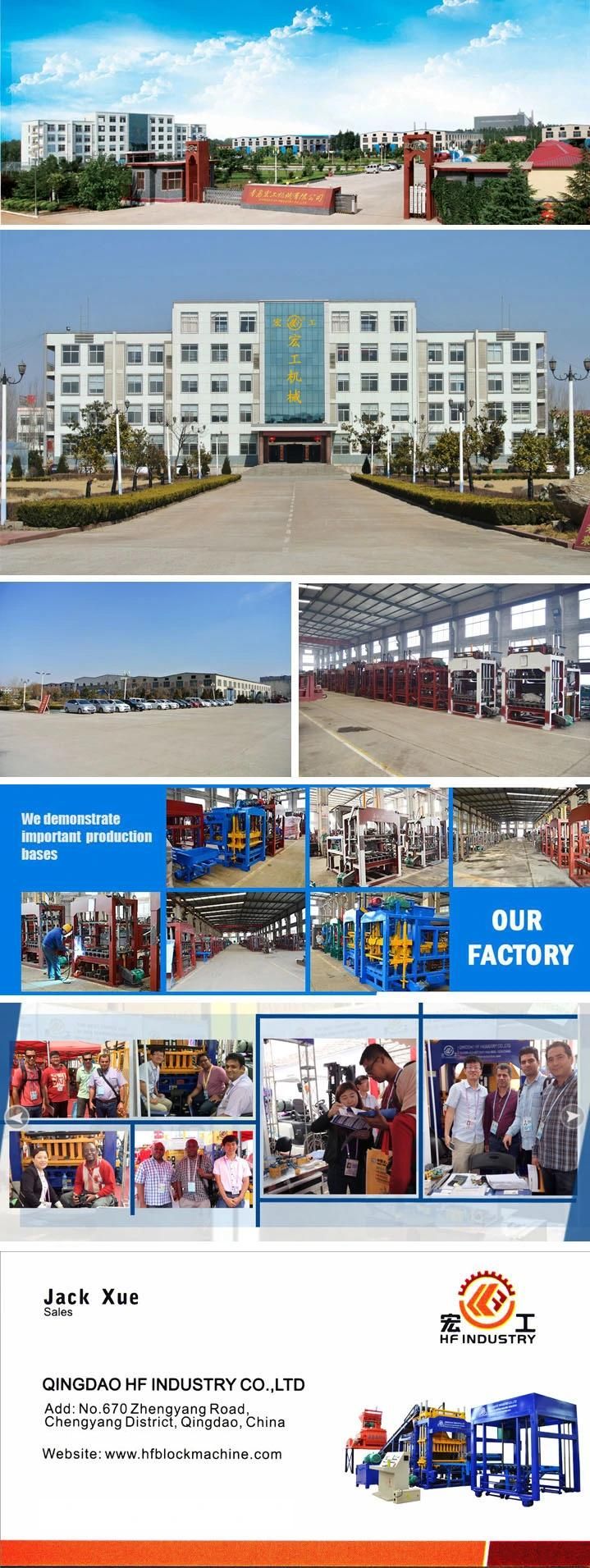

Our factory
QINGDAO HF INDUSTRY CO.,LTD is the professional supplier and exporter for block making machine and brick machine. For the past 26 years, our company has been manufacturing a wide selection of concrete block making machines. We offer automatic and semi-automatic block production lines for making hollow/solid /paver/curbstone blocks. In addition to these, we are also a leader supplier of block pallets for concrete brick production.
Quality is the core of our company. Advanced inspection equipment and stringent quality control tests make us pass ISO9001:2008 certification.

We implement "Three-Guarantee" installation and debugging for free, focusing on quality and after-sales services. Our company also supplies training services to clients.Our products have been exported to Africa, South America, Middle East,South Asia,East Europe,Russia and so on.
