500mm Blade Automatic CNC Aluminium Double Head Cutting Machine

Shandong Truetec Machinery Co., Ltd.
  • After-sales Service:All Using Life
  • Warranty:18month
  • Condition:New
  • Certification:CE
  • Automatic Grade:Automatic
  • CNC or Not:CNC

Base Info

  • Model NO.:CLJZ2S-500*4200
  • Voltage:380V
  • Input Power:5.9kw
  • Rotary Speed:2800r,Min
  • Air Consumption:60L,Min
  • Cutting Length:300-4200mm
  • Cutting Width:135mm
  • Cutting Height:200mm
  • Cutting Angle:45 and 90 Degree
  • Machine Dimension:5900*1750*1950mm
  • Weight:1850kg
  • Machine Name:500mm Blade Automatic CNC Aluminium Double Head Cu
  • Transport Package:Wooden
  • Specification:Saw blade diameter 500mm
  • Trademark:Truepro
  • Origin:China
  • HS Code:846150
  • Production Capacity:500sets,Year


Basic Info.

Model NO. CLJZ2S-500*4200 Voltage 380V Input Power 5.9kw Rotary Speed 2800r/Min Air Consumption 60L/Min Cutting Length 300-4200mm Cutting Width 135mm Cutting Height 200mm Cutting Angle 45 and 90 Degree Machine Dimension 5900*1750*1950mm Weight 1850kg Machine Name 500mm Blade Automatic CNC Aluminium Double Head Cu Transport Package Wooden Specification Saw blade diameter 500mm Trademark Truepro Origin China HS Code 846150 Production Capacity 500sets/Year

Product Description

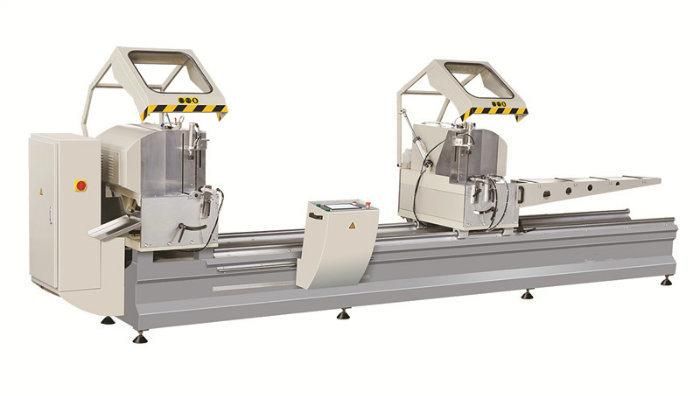

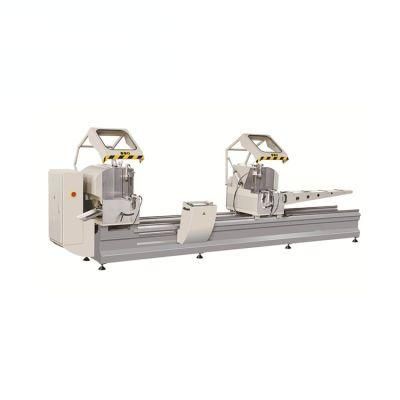

500mm blade automatic cnc aluminium double head cutting machine
500mm Blade Automatic CNC Aluminium Double Head Cutting Machine

chine feature:

1. For cutting Aluminum profile.
2. The feeding system adopts imported linear guide pair, with high accuracy and stability.
3. Auto 45°and 90°cutting change
4. Imported linear guiding pair ensured steady processing accuracy.
5. Saw blade rotates smoothly due to high accuracy spindle.
6. Hydraulic feeding systems ensure precise and stable feeding.
7. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.
8. Carbide saw blade is of accurate processing and high efficiency.

9. Two heads can work together or single, when together work, one time can cut off the required length and angle.
Power supply3N~50Hz 380/220V or As Customer Specification
Cutting motor power5.9KW
Cutting motor rotary speed2800r/min
Operation air pressure0.5~0.8MPa
Air consumption60L/min
Blade specificationø500×ø30×4.4×Z120
Cutting speedstepless speed regulation0~3m/min
Max. cutting length4200 mm
Min. cutting length400 mm
Cutting widthmax 135mm
Cutting height900 :  max  300mm      450:  max  200mm
Cutting angle90°,45°
Repeat locating length tolerance±0.2mm
Cutting profile surface plane≤0.10mm
Cutting angle tolerance±5′
Cutting profile surface roughnessRa12.5µm
Contour dimension5700 mm×1650mm×1500mm

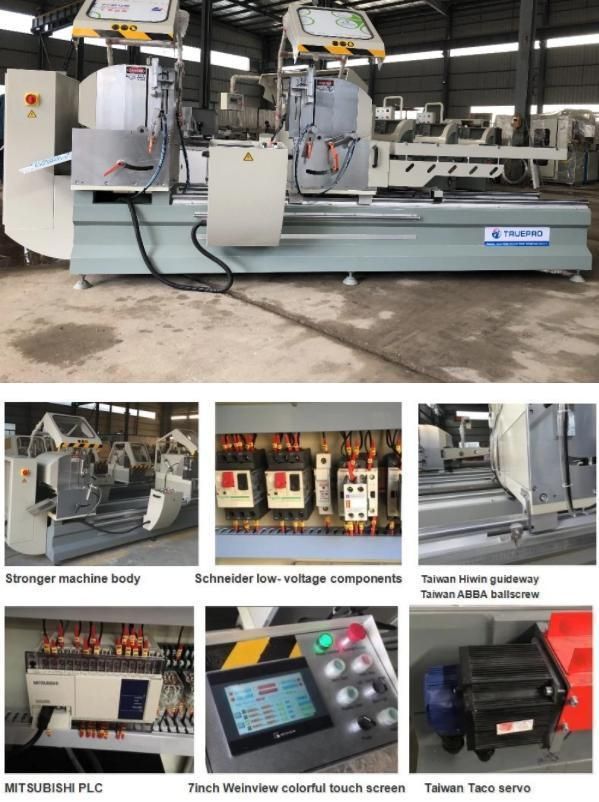

Machine details:
500mm Blade Automatic CNC Aluminium Double Head Cutting Machine
500mm Blade Automatic CNC Aluminium Double Head Cutting Machine

500mm Blade Automatic CNC Aluminium Double Head Cutting Machine
Our Service

Pre-sale service

Free contact for the most suitable machine
Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.


L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.
Alibaba trade assurance , which will protect your money in safe and ensure our quality.

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
