• Model NO.：BCS-50-L
• Control Type：CNC
• Power Supply：Electric
• Automatic Grade：Automatic
• Shaft Type：Single
• Layout：Horizontal
• Automation：Automatic
• Condition：New
• Type：Dry Mortar Machine
• Product：Dry Mortar Production Machine
• Usage：Dry Mortar Packing
• Capacity：240-300bags,Hour
• Packing Range：10-50kg
• Working Principle：Low Pressure Air Floating
• Transport Package：Plywood Box
• Specification：CE
• Trademark：NW
• Origin：Jiangsu
• HS Code：8422303090
• Production Capacity：300PCS,Year
• Package size per unit product：120.00cm * 70.00cm * 185.00cm
• Gross weight per unit product：400.000kg

Basic Info.

Model NO. BCS-50-L Control Type CNC Power Supply Electric Automatic Grade Automatic Shaft Type Single Layout Horizontal Automation Automatic Condition New Type Dry Mortar Machine Product Dry Mortar Production Machine Usage Dry Mortar Packing Capacity 240-300bags/Hour Packing Range 10-50kg Working Principle Low Pressure Air Floating Transport Package Plywood Box Specification CE Trademark NW Origin Jiangsu HS Code 8422303090 Production Capacity 300PCS/Year

Packaging & Delivery

Package size per unit product 120.00cm * 70.00cm * 185.00cm Gross weight per unit product 400.000kg

Product Description

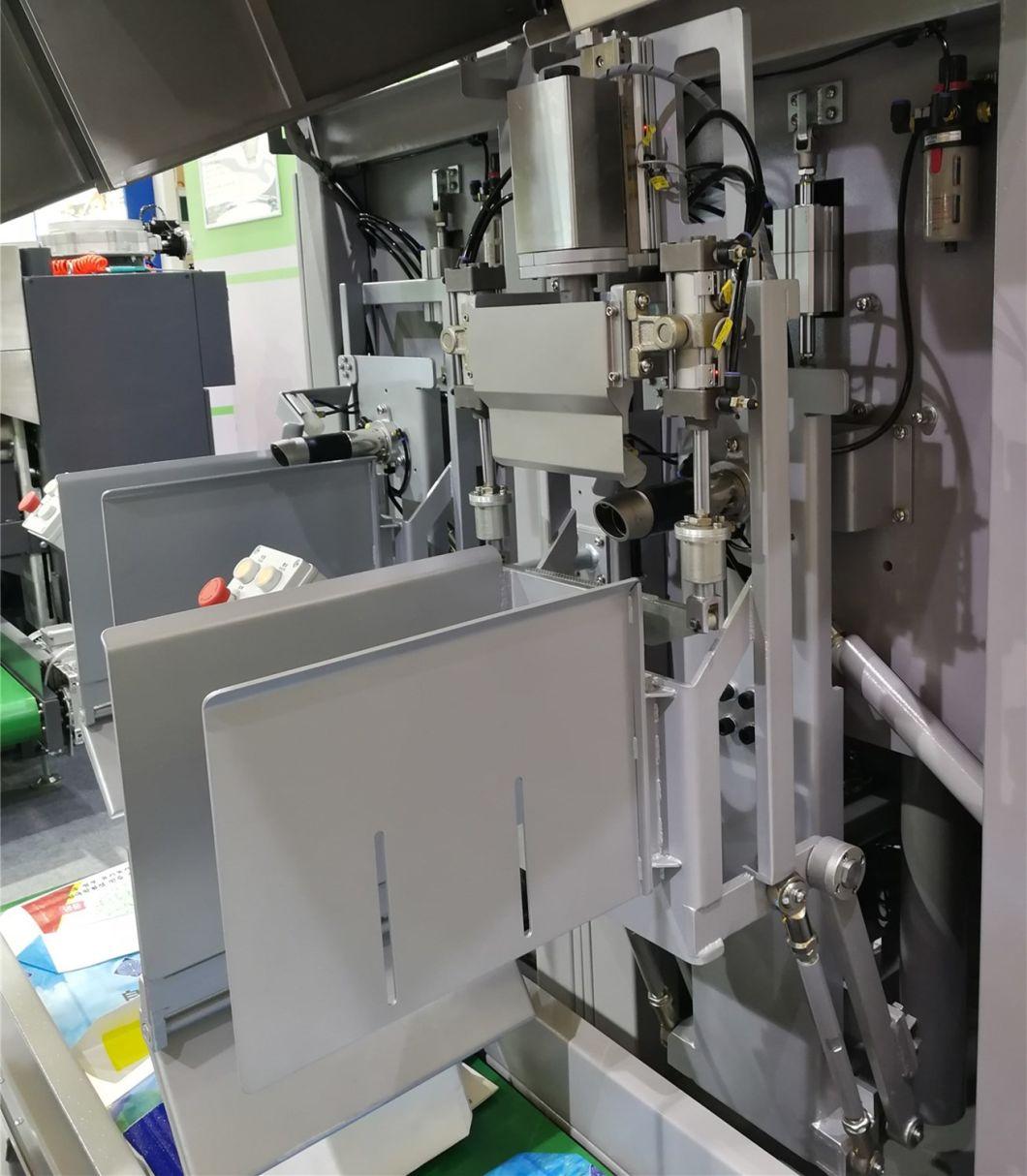

                                  Superfine powder valve bag packing machine

Description
Product introduction:
BCS-50L automatic dosing valve bag packaging equipment is specially developed for automatic quantitative packaging of building materials powder products. We have one invention patent, seven utility model patents and one appearance patent.
Technical highlights:
BCS-50L automatic dosing valve bag packaging equipment uses a new design (invention patent) and eddy current screw push extrusion technology (patent technology) to efficiently transport and extrude powder materials. So that the materials can be filled quickly and stably. With the new central controller (patented technology) and special control software (software copyright), the equipment is accurately controlled to ensure the packaging accuracy. At the spout, we use the airbag instantaneous closed technology (patented technology), low-pressure injection technology (patented technology), high-pressure and high-speed vacuum back sucking technology (patented technology) to fill the materials dust-free and efficiently.  The valve bag is sealed with ultrasonic instantaneous heat-sealing technology (patented technology). Multi-link automatic pushing package technology (patent technology) ensures that the packages of the finished product fall neatly. Multi-machine combination, anti-folding package control system (patent technology) and the manipulator carry through the automatic stacking.
Technical parameters:
Packaging capacity: 4-6 bags / min (3-4 bags / min with ultrasonic sealing)
precision: ±0.5%           Graduation value: 10g
weighing range: 10-50kg
Maximum aggregate particles in packaging materials: ≤ Ø 1mm
Working environment: temperature 0 ºC ~ 40 ºC; Humidity ≤ 90% RH (no condensation)
Working power supply: AC 380V / 50Hz, 4kw, 3-phase 4-core
Voltage fluctuation range: - 15% ~ + 10%, frequency fluctuation range: ± 2%
Working air source: air pressure ≥ 0.6MPa, air consumption is 0.2m³/min
Dust collection air volume: ≥ 1000 m3 / h, Pipeline air speed: ≥ 30 m/min
spout size: Φ 57mm (airbag, low pressure blowing, high pressure and high-speed vacuum back sucking)
Pocket size of valve bag: 100mm (pocket width)

Standard dimensions: LXWXH= 1200mm x700mmx1850mm
