5t*1250mm Hydraulic Decoiler with Coil Car

XIAMEN FUMING ROLL FORMING MACHINERY CO., LTD.
  • Warranty：12 Months
  • Tile Type：Colored Steel
  • Certification：CE
  • Condition：New
  • Customized：Customized
  • Usage：Decoiler

Base Info

  • Model NO.：5T*1250mm
  • Transmission Method：Electric
  • Color：Customized
  • Coil Width：Max.1250mm
  • Load Capacity：Max.5tons
  • Transport Package：Container
  • Specification：5T*1250mm
  • Trademark：FUMING
  • Origin：Xiamen
  • Production Capacity：28pieces,Year

Description

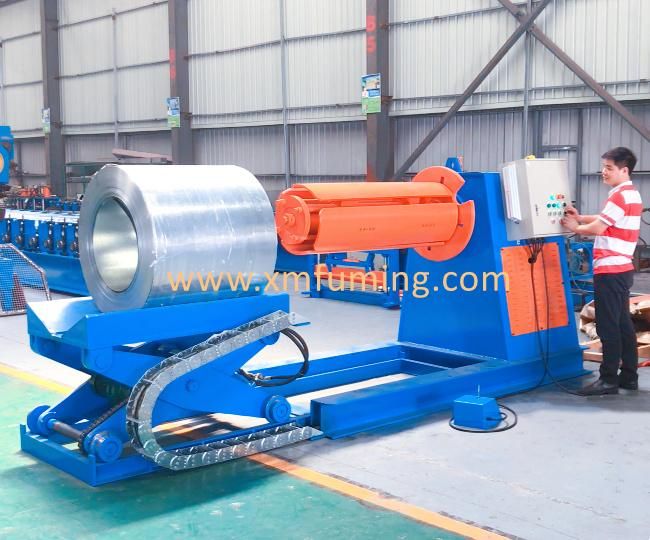

5T*1250mm Hydraulic Decoiler  With Coil CarCoil inner hole expandingHydraulic system, 3KW pump motorSpeed regulatingFrequency inverter, 3KW motorExpanding typeTaper wedge expanding systemLoad capacityMax.5TonsCoil widthMax.1250mmCoil Inner-diameter510±30mmCoil outer-diameterMax.1600mmStop/start rotationAutomatic stopping device with limited switch to assistWith coil car, motor: 1.5KWUp/down stroke of coil car: Max. 300mmBackward and forward stroke of coil car: Max. 2000mm5t*1250mm Hydraulic Decoiler with Coil Car5t*1250mm Hydraulic Decoiler with Coil Car5t*1250mm Hydraulic Decoiler with Coil Car5t*1250mm Hydraulic Decoiler with Coil Car5t*1250mm Hydraulic Decoiler with Coil Car5t*1250mm Hydraulic Decoiler with Coil Car
