Metal Steel C Profile Cable Tray Tile Making Machinery
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Warranty：1 Year
- Certification：CE, ISO9001
- Customized：Customized
- Condition：New
- Control Type：PLC Computer Control
- Automatic Grade：Automatic
Base Info
- Capicity of Decoiler：5000kgs
- Main Motor Type：Three-Phase Asynchronous
- Motor Power：18.5kw
- Thickness of Raw Material：1.0-3.0mm
- Processing Precision ：Withint1.0mm
- Diameter of Main Shaft：80mm
- Roller Stations：18 Stations
- Transport Package：Main Machine with Film by Container Shipping.
- Specification：size: about 8.8*1.45*1.45m
- Trademark：KXD
- Origin：China
- HS Code：8455221000
- Production Capacity：3000 Sets,Year
Description
Main parameters of Metal Steel C Profile Cable Tray Tile Making Machinery1 Suitable to process steel 2 Width of the feeding material according to size of cable tray 3 Roller station 18 rows 4 Thickness of feeding material 0.8-1.5mm 5 Productivity 0-15m/min 6 Rollers' material 45# steel 7 Diameter of shaft 80mm 8 Weight About 10T 9 Size 9500*1500*1400mm 10 Voltage 380V 50HZ 3phases 11 Wall thickness of main machine 20mm steel plate 12 Main forming machine body 300 mm H steel 13 Main motor power 18.5 kw 14 Hydraulic cutting power 5.5 kw

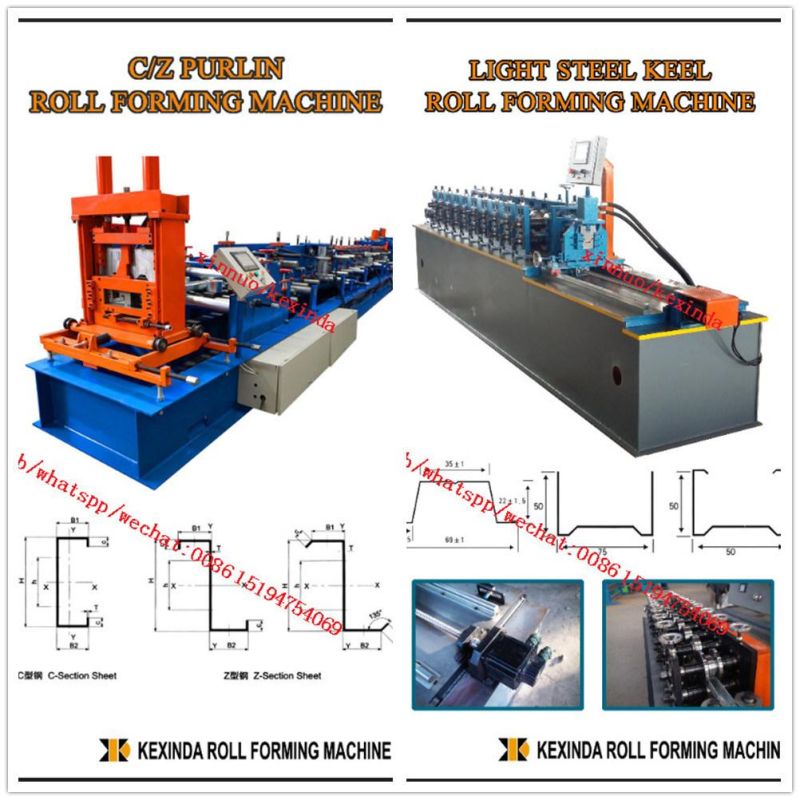

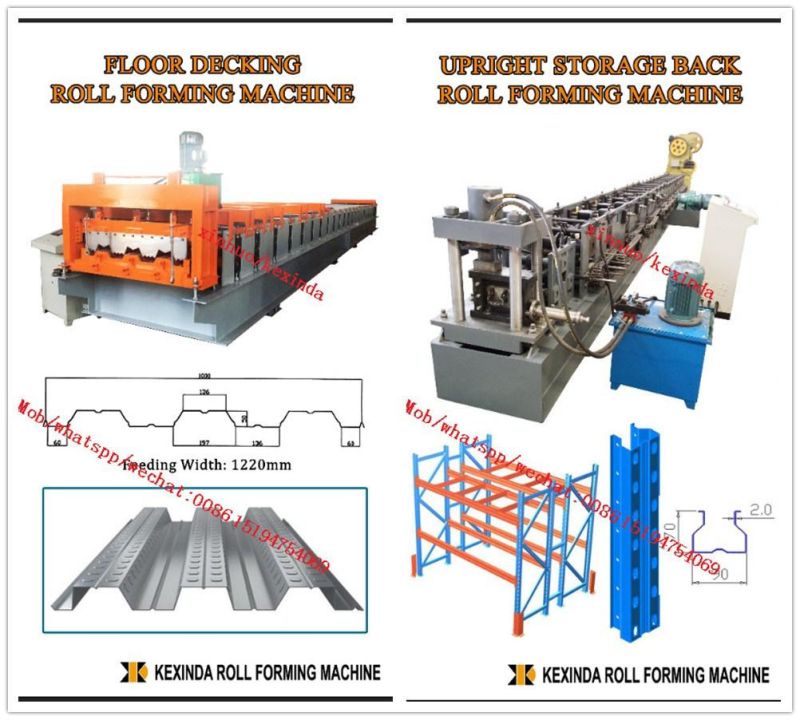

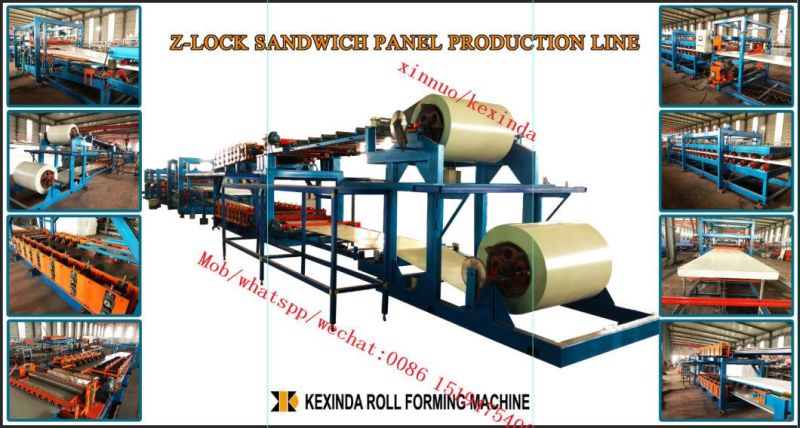

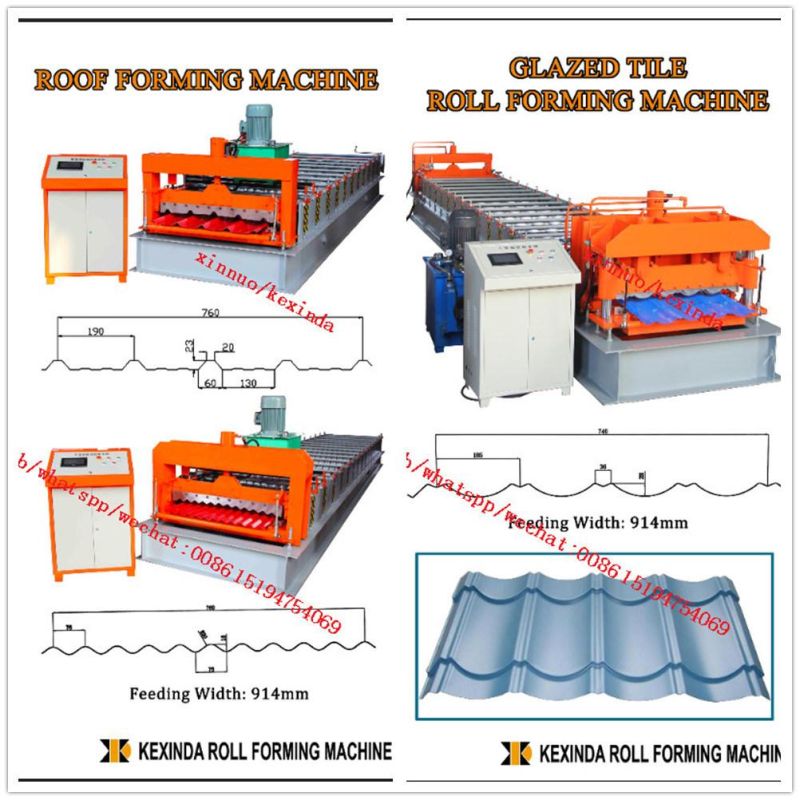

Hot sale machines in our company:
