• Model NO.：Qt 40-1
• Capacity：17.4kw
• Mixer Model：Jq350
• Pallet Size：850*450*30mm
• Mould Period：30s
• Weight of The Machine：2.5t
• Transport Package：Package or According to Customer′s Requirement
• Specification：1350*1460*1800mm
• Trademark：Henry
• Origin：Shandong
• HS Code：8474802000
• Production Capacity：2880-10000 Pieces,Day

Basic Info.

Model NO. Qt 40-1 Capacity 17.4kw Mixer Model Jq350 Pallet Size 850*450*30mm Mould Period 30s Weight of The Machine 2.5t Transport Package Package or According to Customer′s Requirement Specification 1350*1460*1800mm Trademark Henry Origin Shandong HS Code 8474802000 Production Capacity 2880-10000 Pieces/Day

Product Description

Advantage of QT 40-1 Manual Concrete Block Moulding Machine Hollow Brick Machine for Sale



1.QT 40-1 is a  multi-purpose machine,it can produce all sizes of blocks by changing mould.
2.QT 40-1 has rational design,excellent performance,and it is equipped with powerfui vibration motor.
3.QT 40-1 is easy to operation.
4.QT 40-1 uses carburing technology to increase mould service life.
5.QT 40-1 is durable and cost-effective.


Technical Specifications


Dimension of host machine	1350*1460*1800mm
Host machine power	8.8kw
Vibration force	30KN
Mould period	30S
Capacity	17.4kw
Mixer model	JQ 350
The size of the pallet	850*450*30mm
Weight of the machine	About of the machine

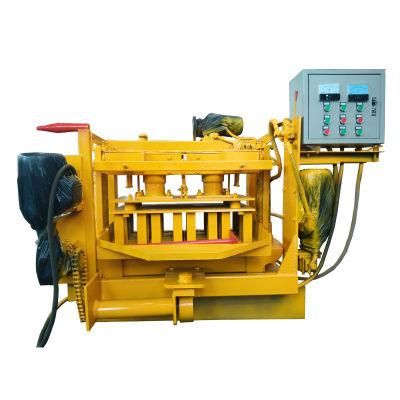

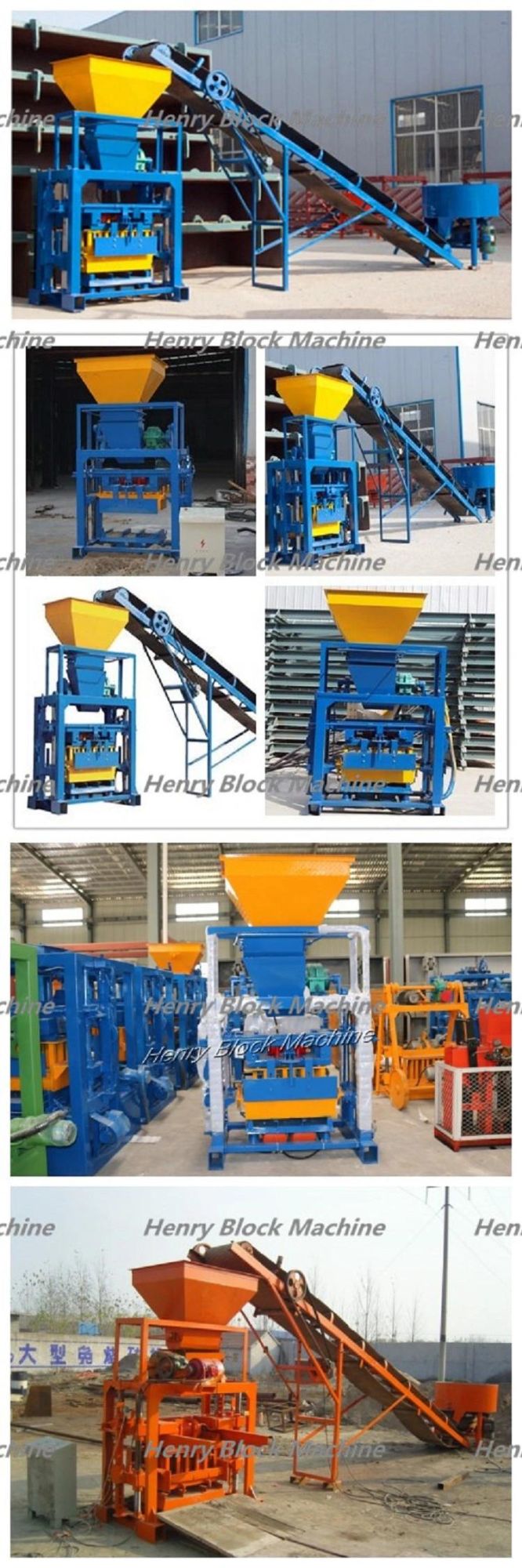

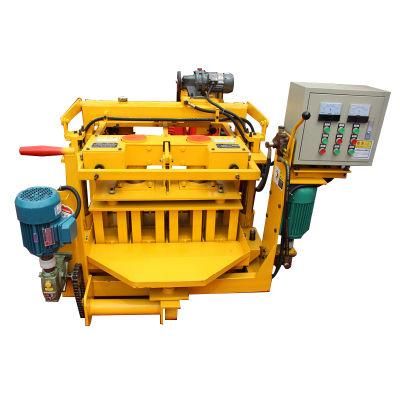

Whole view of QT 40-1 Manual Concrete Block Moulding Machine Hollow Brick Machine for Sale

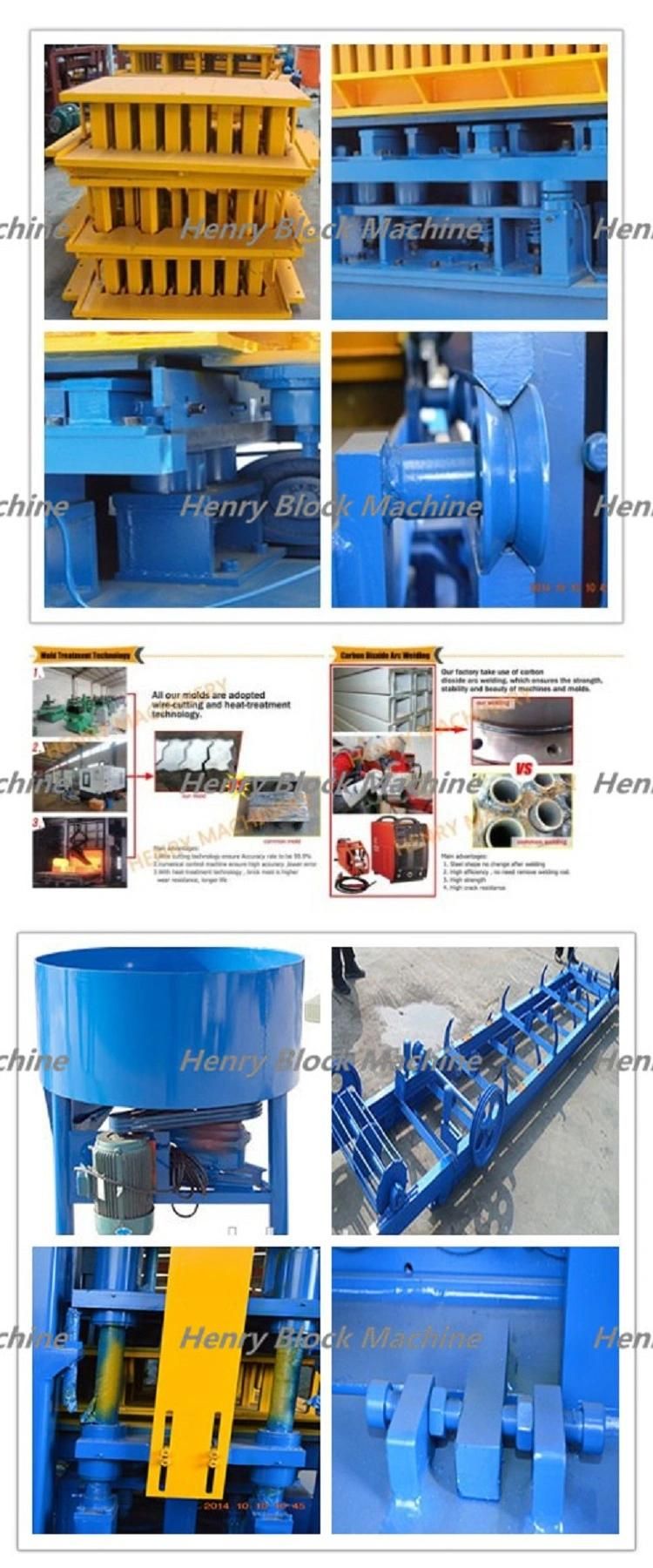

Some details about our manual block machine 40-1

We use Q235 steel in machine architecture, and the average thickness is 10mm, which guarantee the durability of the machine. We use Q245 steel in making moulds, which make sure that the moulds can running 100,000-150,000 times.
For hollow block moulds, heat treatment and carburizing technology is applicated, and wire cutting process used in paving brick moulds, the mean error <1mm.
For large and complex fully automatic machine, we provide overseas after-sales installation services, small semi-automatic machines, our engineers will help installing by remote guidance.




Capacity Table


Size	Pcs per mould	Pcs per hour
400*225*225mm	3	270
400*200*200mm	4	360
400*150*200mm	5	400
400*100*200mm	7	560
500*150*200mm	3	240
240*115*53mm	26	2080
225*112.5*60mm	12	960
200*100*60mm	16	1048

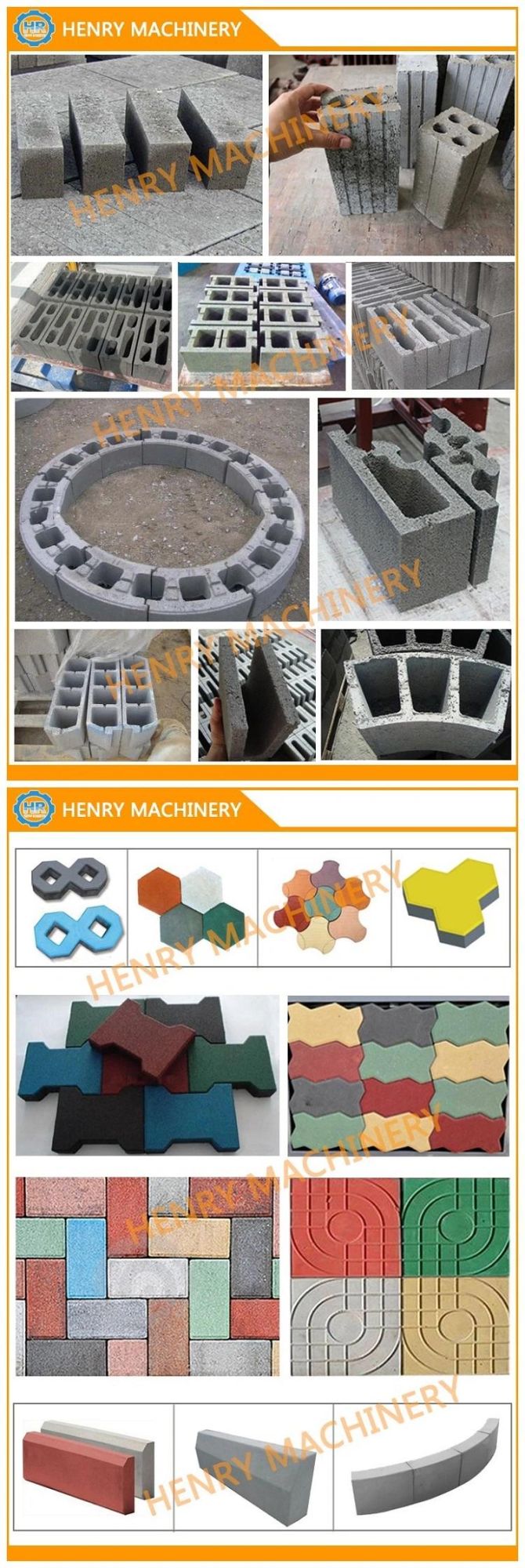

Some designs of blocks and pavers produced by QT 40-1 Manual Concrete Block Moulding Machine Hollow Brick Machine for Sale

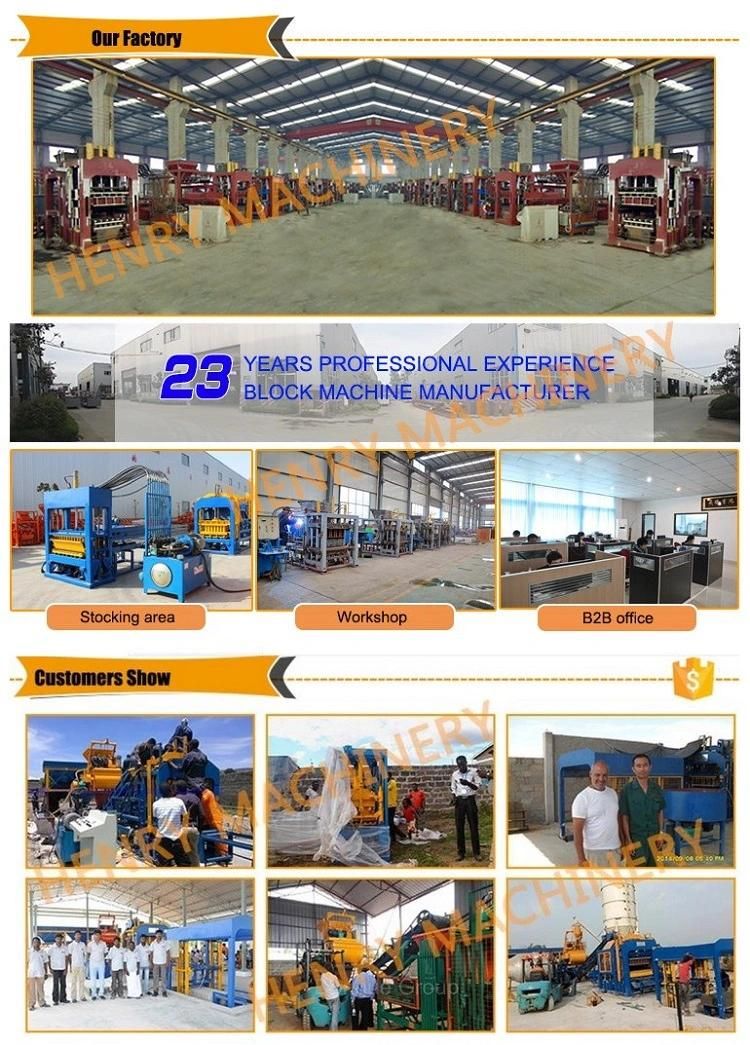

Company profile

Henry Industrial Co.,Ltd is a big  and famous Construction Company in China.We are manufacturer of concrete block making machine and clay interlocking brick machine for 23 years.Our machines have a high quality and  get Certified ISO 9001: 2009 and CE standard by Eurotech Germany.As so far,we have applied for 23 patents,the patent technology guatantee equipment to be rationality,stability,reliability,customers have been widely praise and acclaim on it.Company products exported to Europe and the United States,Africa,the Middle East and more than 100 countries and regions.


Our Service

     we have go big after sale service  team , they are all the experience technician , over 20 workers have the passport , they all have the oversea experience. So we not only have good service in the pre service , we also think highly of the after sale service.

Pre-sale

(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:

(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:

(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer  training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
Guarantee

(1)We can supply one year guarantee period for our brick making machines,if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
(2)Within one year ,if the client meet the unsolvable questions ,we could fly to client place to help.
