CNC Window Door Aluminum Bending Machine Price
JINAN YUEFENG MACHINERY CO., LTD.- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：CNC
- Voltage：380V
- Model：Lyh-CNC-200
Base Info
- Model NO.：Lyh-CNC-200
- Input Voltage：380 50Hz
- Input Power：3.0kw
- Air Pressure：0.4~0.6MPa
- Air Consumption：120L,Min
- Min. Bending Radius：230mm
- Roller Diameter：60mm
- Roller Rotation Speed：1-8r,Min
- Max. Width：200mm
- Hydraulic Pressure：20t 200MPa
- Overall Dimension：1900*1100*1300mm
- Transport Package：Plastic Film or Depends on Customers
- Specification：1900*1100*1300mm
- Trademark：Yuefeng
- Origin：Jinan Shandong, China
- HS Code：8477800000
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. Lyh-CNC-200 Input Voltage 380 50Hz Input Power 3.0kw Air Pressure 0.4~0.6MPa Air Consumption 120L/Min Min. Bending Radius 230mm Roller Diameter 60mm Roller Rotation Speed 1-8r/Min Max. Width 200mm Hydraulic Pressure 20t 200MPa Overall Dimension 1900*1100*1300mm Transport Package Plastic Film or Depends on Customers Specification 1900*1100*1300mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 20 Sets/MonthProduct Description

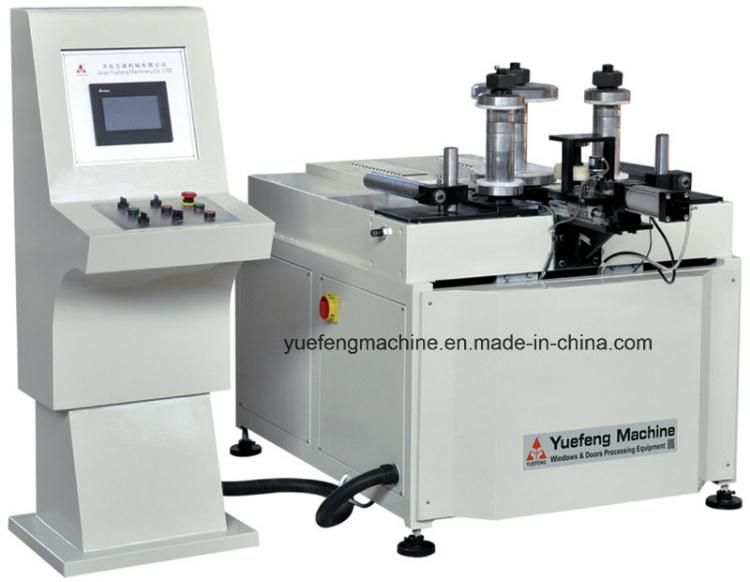

LYH-CNC-200 CNC Rolling Machine
Product Description
> The machine applies to bending several kinds of metal profiles to appears arc shape, such as iron, copper and aluminium.
> Adopts special arc-processing software, can detect the data of rebound, and then eliminate the rebound.
> It can make shapes of ellipse, circle and "C", "U" shapes etc.
> Adopts computer control system, the location precision is less than 0.01mm.P
Technical Parameter:
| Input voltage | 380 50Hz |
| Input power | 3.0Kw |
| Air pressure | 0.4~0.6MPa |
| Air consumption | 120L/min |
| Min. bending radius | 230mm |
| Roller diameter | 60mm |
| Roller rotation speed | 1-8r/min |
| Max. width | 200mm |
| Hydraulic pressure | 20T(200MPa) |
| Overall dimension | 1900×1100×1300mm |
