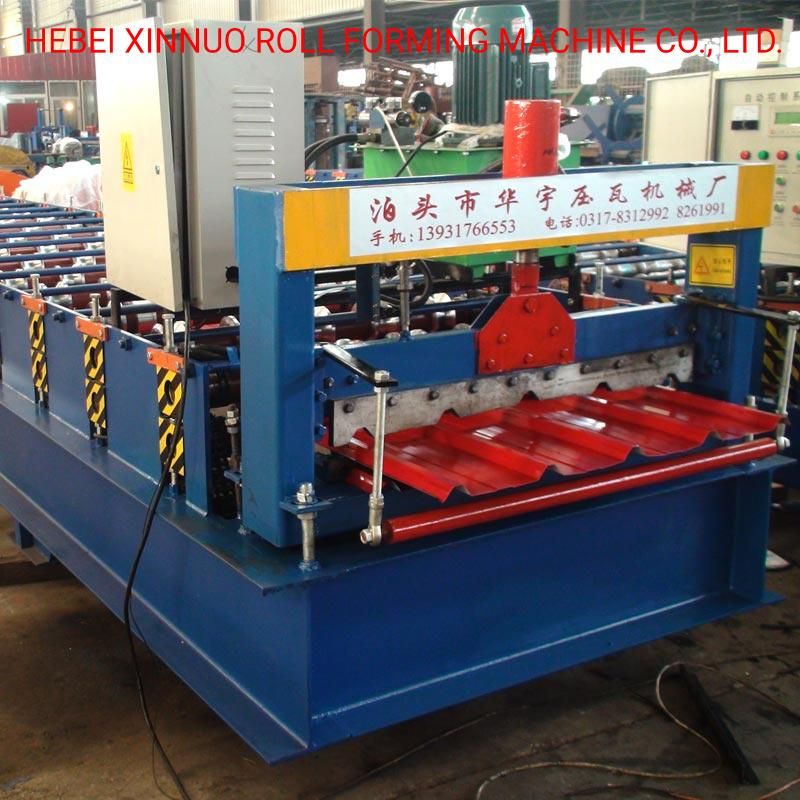

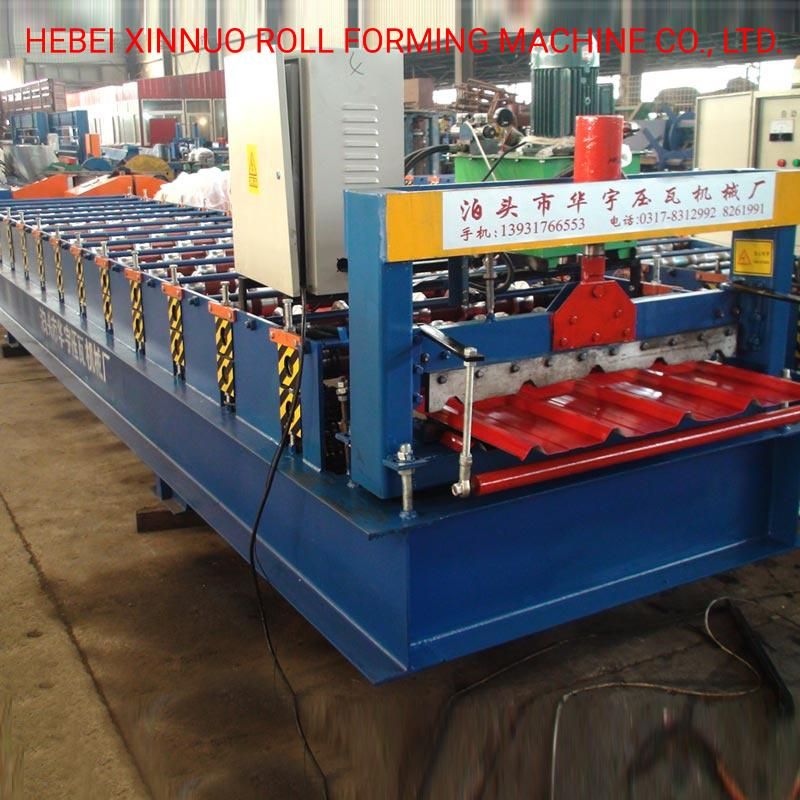

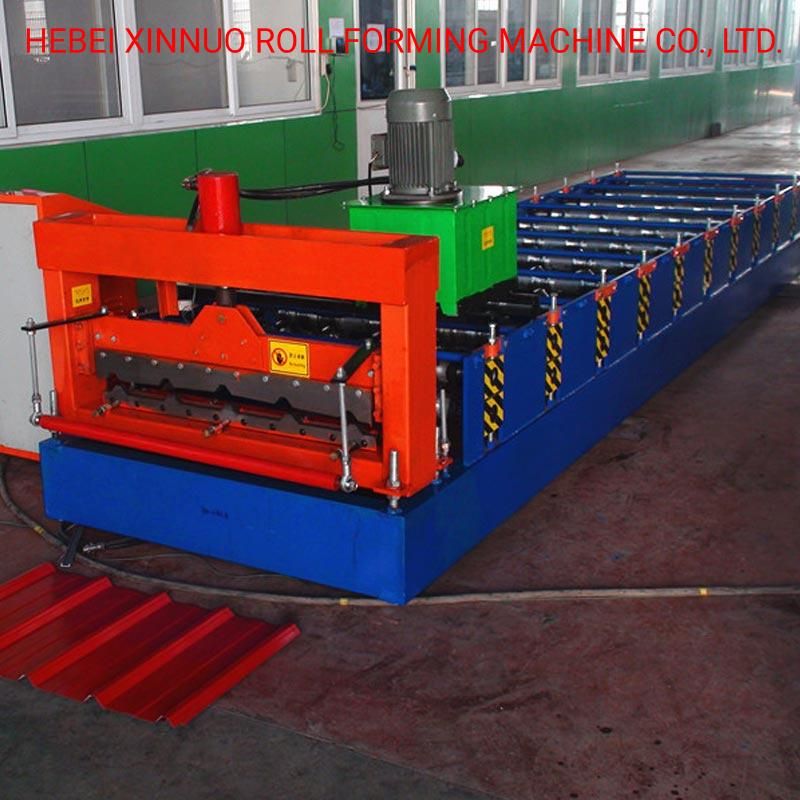

Fully Automatic Interlock Tiles Metal Roofing Making Roll Forming Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof
  • Feeding Material Width：1220mm or Customized

Base Info

  • Model NO.：840
  • Feeding Thickness：0.3-0.8mm
  • Main Motor Power：4kw
  • Cutting Method：Hydraulic Mould Cutting
  • Cutting Material：Cr12
  • Cutting Power：3kw
  • Roller Material：45# Steel
  • Roller Station：14-18 Stations
  • Machine Color：as Customer Need
  • Machine Size：About 8.8*1.65*1.45m
  • Weight：7 Tons
  • Transport Package：Main Machine with Simple Plastic Film.
  • Specification：size: about 8.8*1.65*1.45m
  • Trademark：KXD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：3000 Sets,Year

Description

         Main parameters of 840 roll forming machine1Suitable to processColor steel plate, galvanized sheet,aluminum coils and etc.2 Width of the feeding material1220mm3Roller station16 rows4Thickness of feeding material0.3-0.8mm5Productivity 10-15m/min6Rollers' material45# steel, with hard chrome on surface7Diameter of shaft80mm8Weight About 4.5 T9Size 8.5*1.55*1.5mm10Voltage380V 50Hz 3Phase11Main frame of machine300mm H steel12Main motor power4kw13Hydraulic cutting power4kw14Main frame350mm H steel
