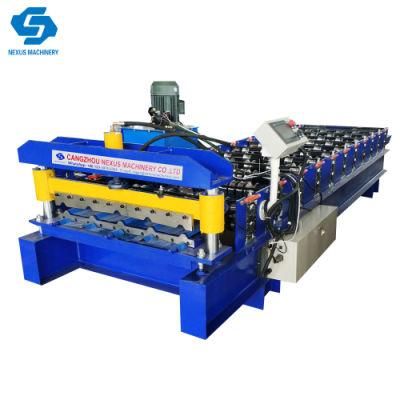

Ibr& Corrugated Roofing Sheet Double Layer Roof Panel Roll Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty：2 Years
  • Tile Type：Colored Steel

Base Info

  • Model NO.：NM1202
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric
  • Product Name：Ibr& Corrugated Roofing Sheet Forming Machine
  • Raw Material：PPGI Sheet
  • Thickness Range：0.3-0.8mm
  • Machine Power：5.5kw+3kw
  • Machine Weight：About 9 Tons
  • Afer-Sales Service：Engineer Is Availble to Overseas
  • Main Shaft Dia：70mm
  • Working Speed：10m--15m,Min(Exclude Cutting Time)
  • Roll Station：13 Groups and 18 Groups
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：8500mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：Cangzhou, China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months
  • Package size per unit product：850.00cm * 150.00cm * 180.00cm
  • Gross weight per unit product：7000.000kg

Description

Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm
Main motor power5.5 kw
Drive1'' single chain
Type:Wall board
Main shaft dia¢70mm
material45# forge steel and quenched
Roller material45# high grade forge steel ,chrome coated 0.05mm
Roll station13 groups and 18 groups
Raw material0.3-0.8mm
Coil width 914mm&925mm
Working speed10m--15m/min(Exclude cutting time)
Length Tolerance±1.5mm
Weight of machineAbout 8 ton
Size of machineAbout 8500×1800×1500mm L x W x H
Color of machineYellow and Blue
CoderOmron, made in Japan
ControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating paneltouching screen
Other electrical elementSchneider
CuttingHydraulic cutting. Auto cutting when reach the set length
Hydraulic power3KW
Blade materialCr12mov,quenched 58°-62°
Working pressure16mpa
Cutting tolerance+/- 1.0mm

4. Equipment list :

No.Product Name       QTY
15T Manual decoiler          1
2IBR& Corrugated Roofing Sheet Double Layer Roof Panel Roll Forming Machine
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		          1
3Passive Output table          2
Sum           4

5. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

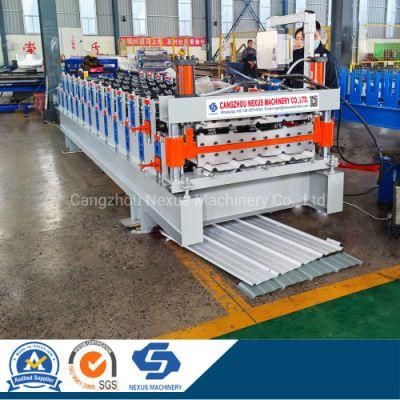

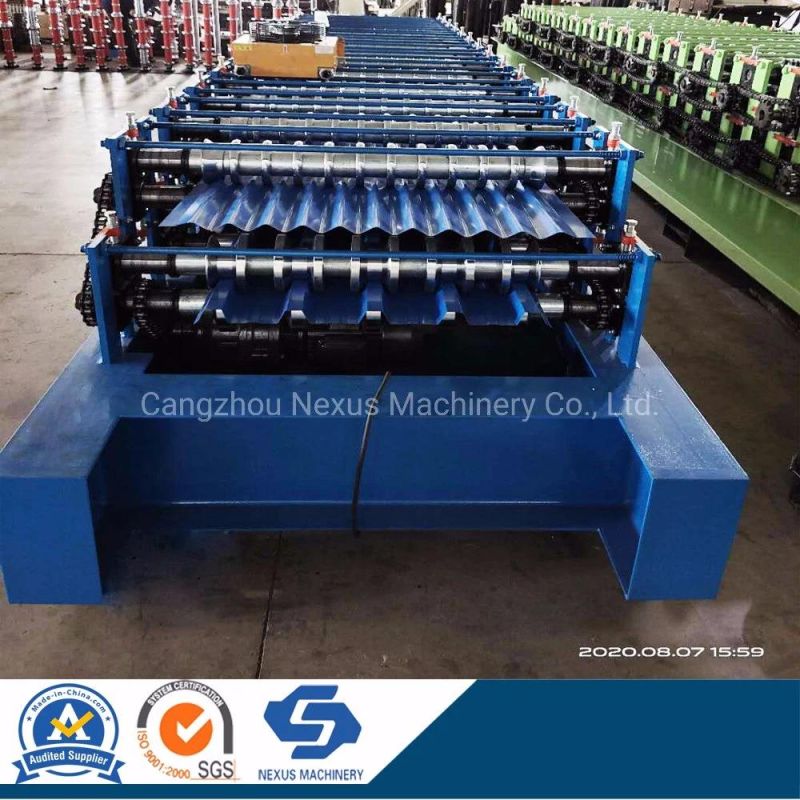

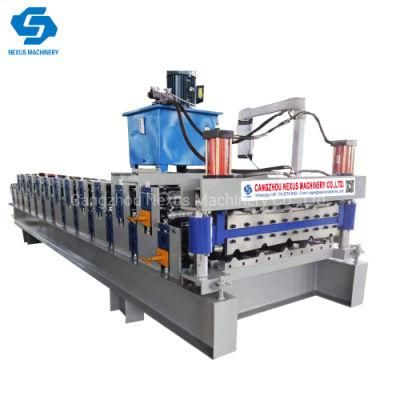

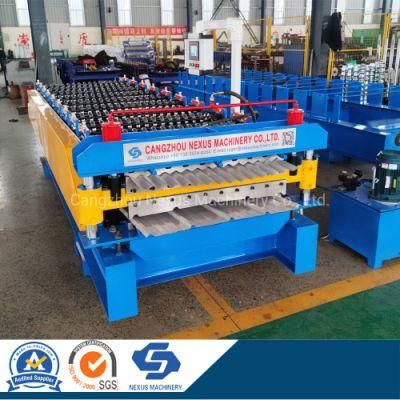

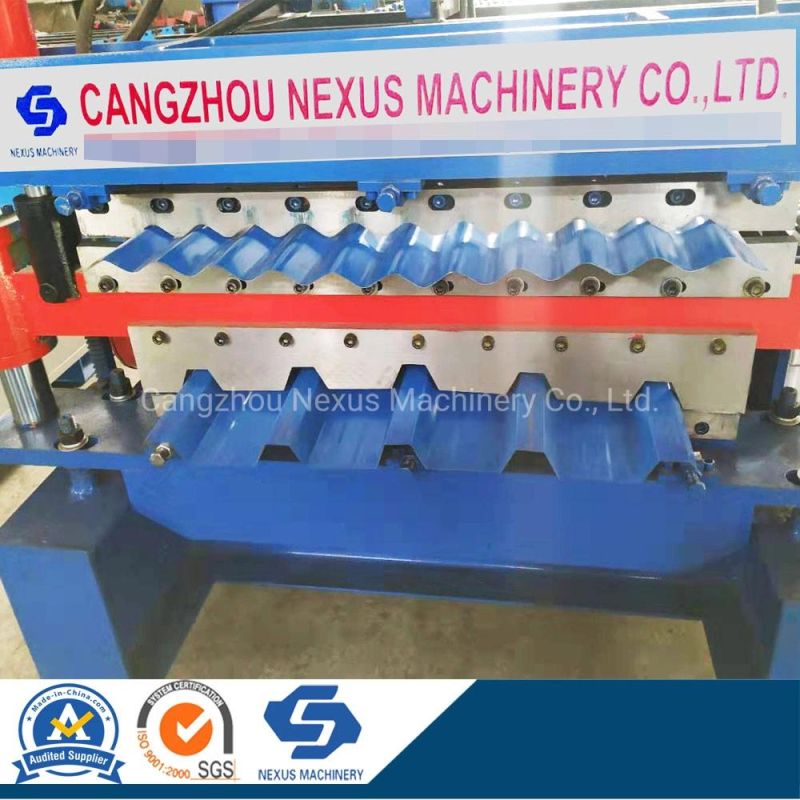

6. Photos of IBR& Corrugated Roofing Sheet Double Layer Roof Panel Roll Forming Machine for Reference:
Ibr& Corrugated Roofing Sheet Double Layer Roof Panel Roll Forming Machine
Ibr& Corrugated Roofing Sheet Double Layer Roof Panel Roll Forming Machine
Ibr& Corrugated Roofing Sheet Double Layer Roof Panel Roll Forming Machine

7. Why Choose US?
1. More than 10 years experiences in manufacturing&exporting roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
