• Model NO.：QT5-15
• Weight：5500kg
• Cycle Time：15s
• Rated Pressure：16MPa
• Factory Area：1500m2
• Color：Optional
• Warranty：1 Year
• Productivity：7200-9600 Pieces,8hour
• Automatic：Yes
• Transport Package：Container
• Specification：5120*1950*2810mm
• Trademark：HF
• Origin：Shandong, China
• HS Code：8474802000
• Production Capacity：400*200*200mm Block 7200-9600 Pieces,8hour

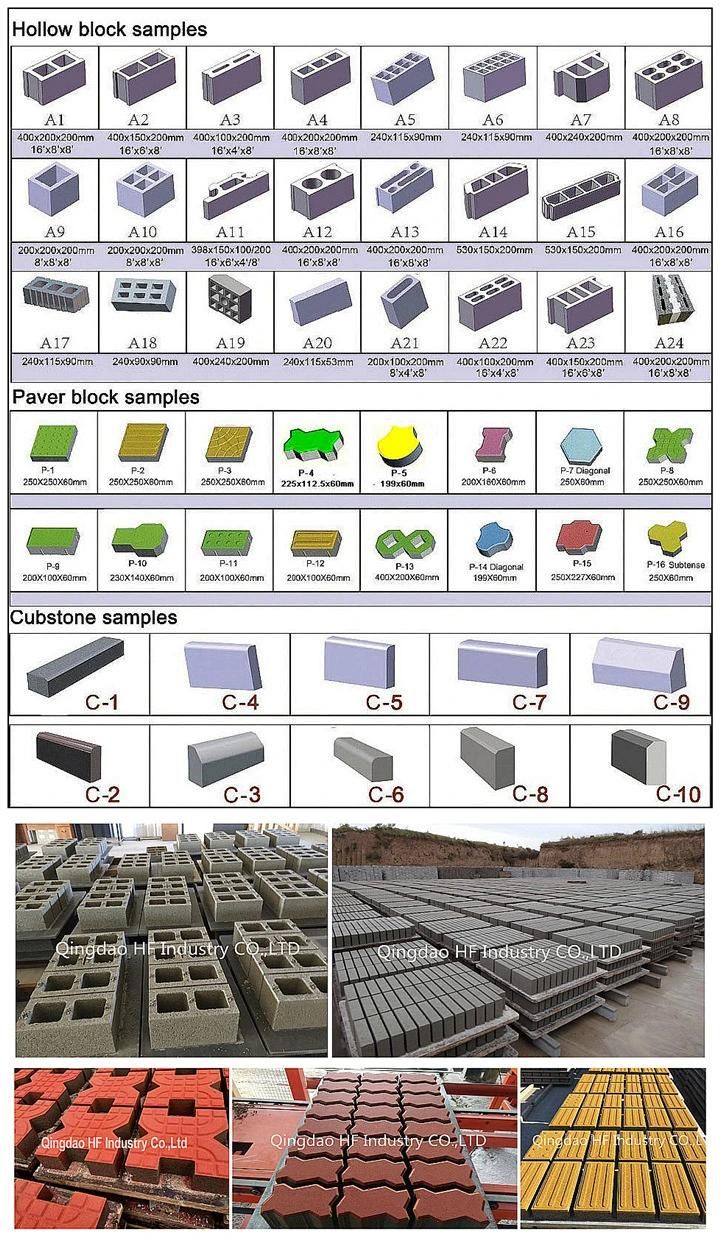

ModelQT5-15 Overall Dimension5120*1950*2810mmCycle Time15sTotal Power26.5KWPallet Size1130*550mmRaw MaterialsCrushed stone, sand, cement, dust and coal fly ash, cinder, slag, ganaue, gravel, perlite and other industrial wastes.Applied ProductsConcrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass block, slope blocks, interlocking blocks, etc.Applied fieldsWidely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.Block Sample

ProductivityBlock NameSizeQty/ mouldCycle timeQty/hourQty/8hourHollow block400*200*200mm5pcs15-20s900-1200pcs7200-9600pcsHollow block400*150*200mm7pcs15-20s1260-1680pcs10000-13440pcsSolid block240*115*53mm32pcs15-17s6770-7680pcs54160-61440pcsPorous block240*115*90mm16pcs15-20s2880-3840pcs23040-30720pcsS Paver225*112.5*60mm16pcs20-25s2300-2880pcs18400-23000pcsOur Company

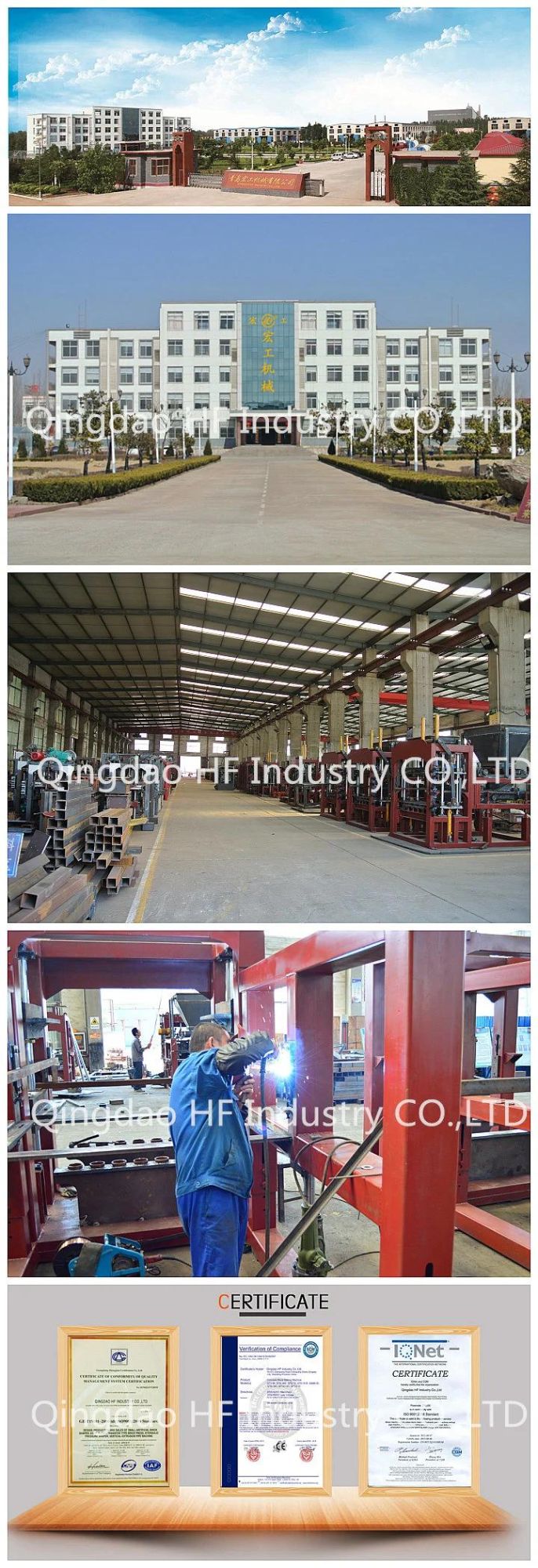

For the past 21 years, our company has been manufacturing a wide selection of concrete block making machines. We offer automatic and semi-automatic block production lines for making hollow/solid /paver/curbstone blocks. In addition to these, we are also a leader supplier of block pallets for concrete brick production.
Quality is the core of our company. Advanced inspection equipment and stringent quality control tests make us pass ISO9001:2008 certification.
We implement "Three-Guarantee" installation and debugging for free, focusing on quality and after-sales services. Our company also supplies training services to clients.
Our products have been exported to Africa, South America, Middle East,South Asia,East Europe,Russia and so on.

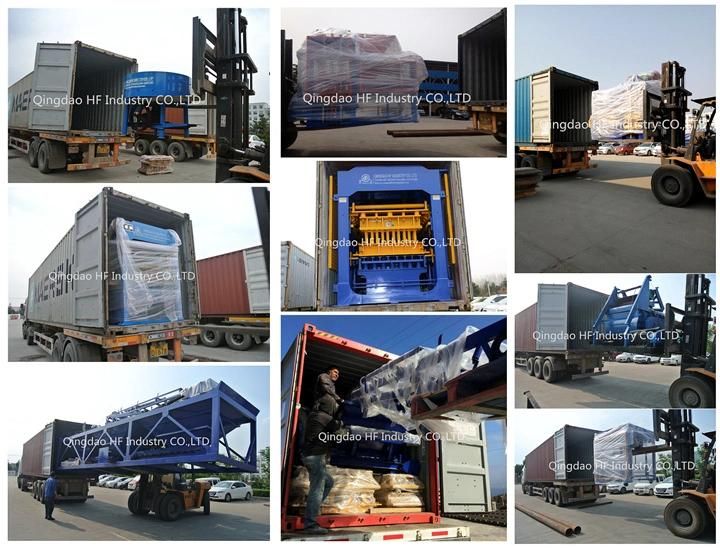

Packing & Delivery
Packing: Container
Delivery Time: Within 40 days

Our Service
1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation.Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within one year's warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
FAQ
1> Is this block machine suitable for us to use?
A: Could you pls tell us the Moulding Number, Pallet size you needs?Then we could advice the most fitting model for you.

2>What is your package in shipment?
A: Usually safety export package(iron box) for LCL, Nude package for full container. Also according to customer's request.

3>How to use the block machine?
A: We will send the operating manual to you after you purchase the machine.

4>How about the after sale service of block machine?
A: 1 year guarantee for the whole machine (without the spare parts)We also sell the parts ,if you need them,just tell us.
Customer Show
