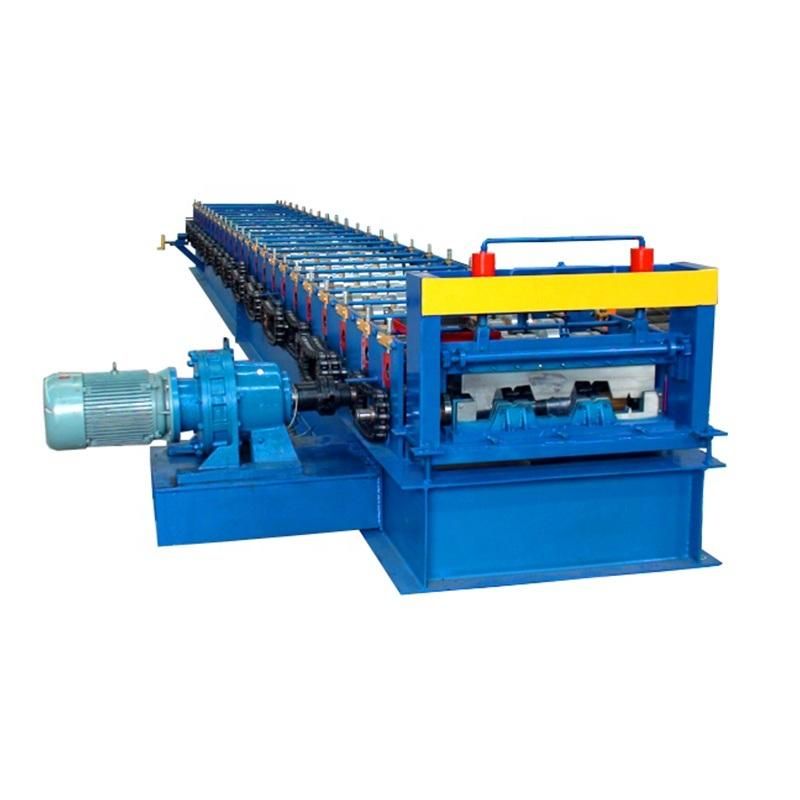

1000 Galvanized Steel Floor Tile Manufacturing Making Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- After-sales Service：We Have a Good Saler.
- Warranty：1 Year
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：floor board making machine
- Usage：Roof, Wall
- Transmission Method：Machinery
- Weight：10000kg
- Feeding Width：1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
- Roller Material：45#Steel
- Production Speed：15 M,Min
- Rolling Thinckness：0.3-0.8mm
- Control Sysem：PLC Automatic Control
- After Warranty Service：Video Technical Support
- Voltage：380V
- Certificate：CE,ISO,TUV
- Transport Package：Main Machine Is Nude in The Container
- Specification：15000*1200*1100mm
- Trademark：HUA YU XIN NUO, XINNUO
- Origin：Buotou Hebei, China
- Production Capacity：30 Set,Sets Per Month
Description

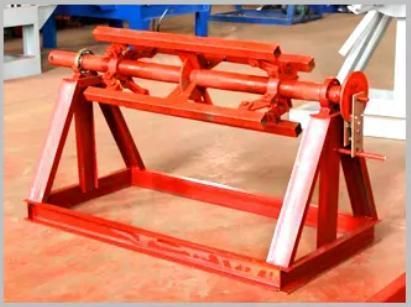

Name of commodity & specificationXN-688 floor tile machine machine with high quality low price 2 Main motor power 18.5kw, 3 phase 3 Hydraulic motor power 15kw 4 Hydraulic Pressure 18-20MPa 5 Voltage 380V /3phase/ 50 HZ (or as your requirement) 6 Control System PLC Delta Inverter 7 Main Frame 450mm H-Beam 8 Backboard Thickness 22mm 9 Chain Size 66mm 10 Feeding Material color steel coils 11 Feeding Thickness 0.3-0.8mm 12 Feeding Width 1220mm 13 Effective width 1000mm 14 Productivity 10-15m/min 15 Roll Station 24 16 Roller Diameter 95mm 17 Roller material 45# steel 18 Cutter material Cr12 , quenched 19 Cr-Plating Size 0.05mm 20 Overall Size 15000×1200×1100mm 21 Total Weight 12T 22 Components Manual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set

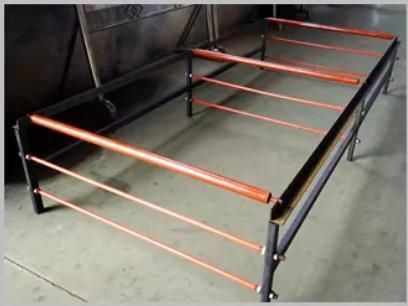

Supporter Table-------------------1 set 23 Workflow Manual decoiling----feeding and guiding----roll forming----cut to length----run out table 24 Package nude in the container 25 Minimum order quantity 1 set 26 Payment terms T/T(30% T/T pay in advance, the remaining 70% pay before ship) 27 Delivery time 30 working days later after receiving the deposit All technical parameters can be changed, according to user's need.
This solution can basically meet normal production, if you want a faster output speed, please see below.

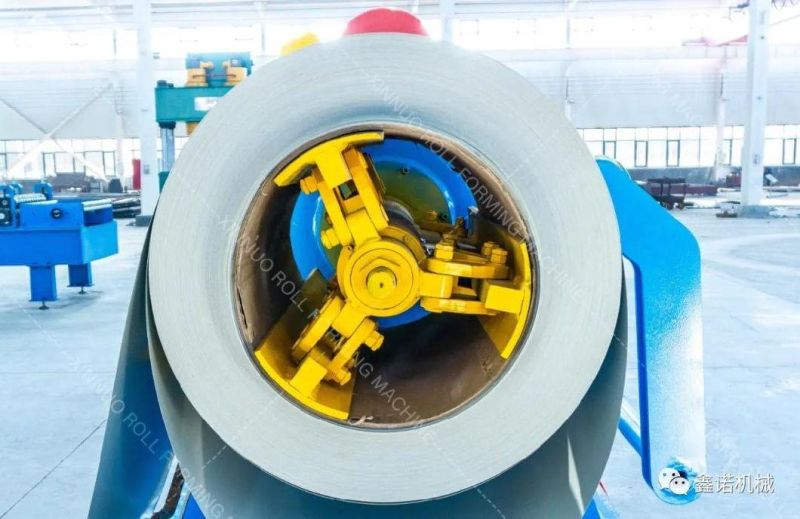

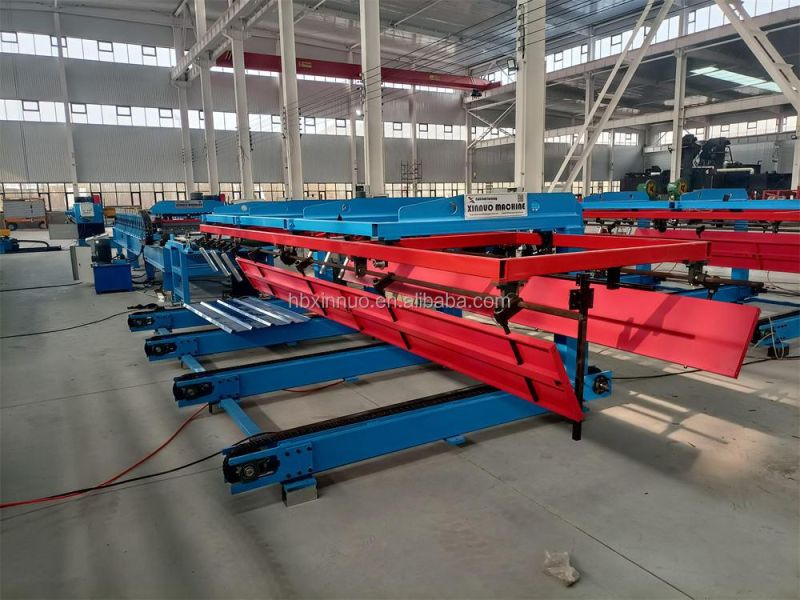

plan B: hydraulic decoiler + hydraulic stack machine
This set of schemes are not only high value, but also the configuration is superior, and the whole process is automated.

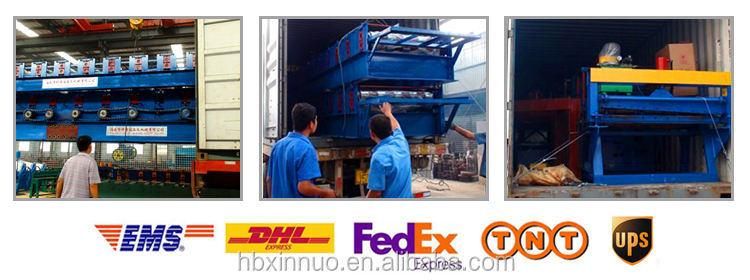

Packing and shipping

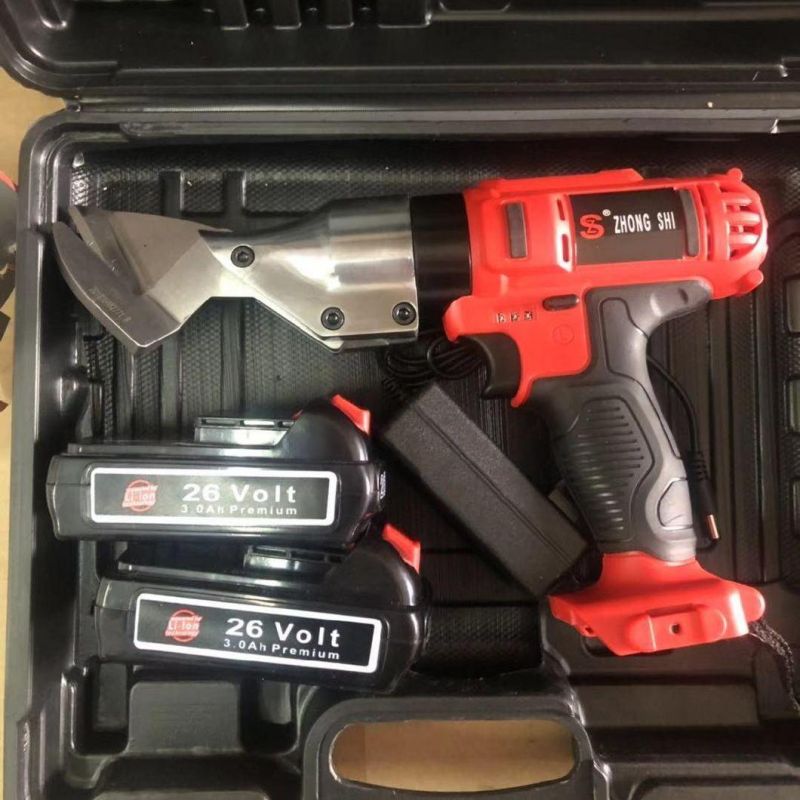

Industry accessories: Color roll and handheld electric scissors
Our company also sells related industry accessories, if you need to get in touch with us.
FAQ
1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can
pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4.What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including:
visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
5.How about the warranty: 12 months limits warranty.
