Trapezoidal Ibr Color Steel Zinc Aluminium Roofing Sheet Making Machine/Ibr Iron Sheet Metal Roof Tile Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric

Base Info

  • Model NO.：NM429
  • Product Name：Trapezoidal Ibr Color Steel Roofing Machine
  • Raw Material：PPGI,Gi,Gl Sheet
  • Thickness Range：0.3-0.8mm
  • Machine Power：5.5kw+4kw
  • Driven Type：by Chain
  • Forming Speed：10-15m,Min
  • Operation Type：Touch Screen
  • Machine Weight：About 5 Tons
  • PLC Brand：Panasonic, Siemens,Mitsubishi,Delta
  • Warranty：12 Months
  • Freight Service：Accpetable
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：6500mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：Cangzhou, China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months

Description

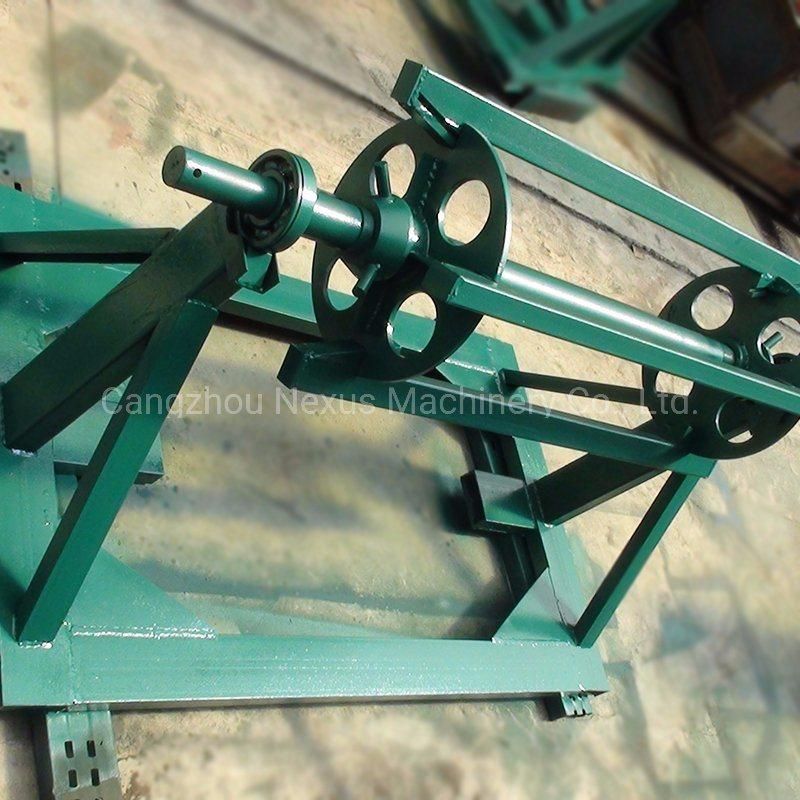

Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm IBR Steel Metal Roofing Sheet Roll Forming Machine/Automatic PLC Control Roof Profile Making  MachineMain motor power5.5kwDrive1'' single chainType:Wall boardMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station16 groupsRaw material0.3-0.8mmCoil width 1000/1200/1250mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 5 tonSize of machineAbout 7500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power3KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm
4. Equipment list :
No.Product Name       QTY
15T Manual decoiler          1
2IBR Steel Metal Roofing Sheet Roll Forming Machine/Automatic PLC Control Roof Profile Making  Machine
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		          1
3Passive Output table          2
Sum           4

5. Character of main structure:
  1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
  2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
  4. It is very easy to install the equipment and suitable for producing in the factory.
  5. Low noise with high efficiency.

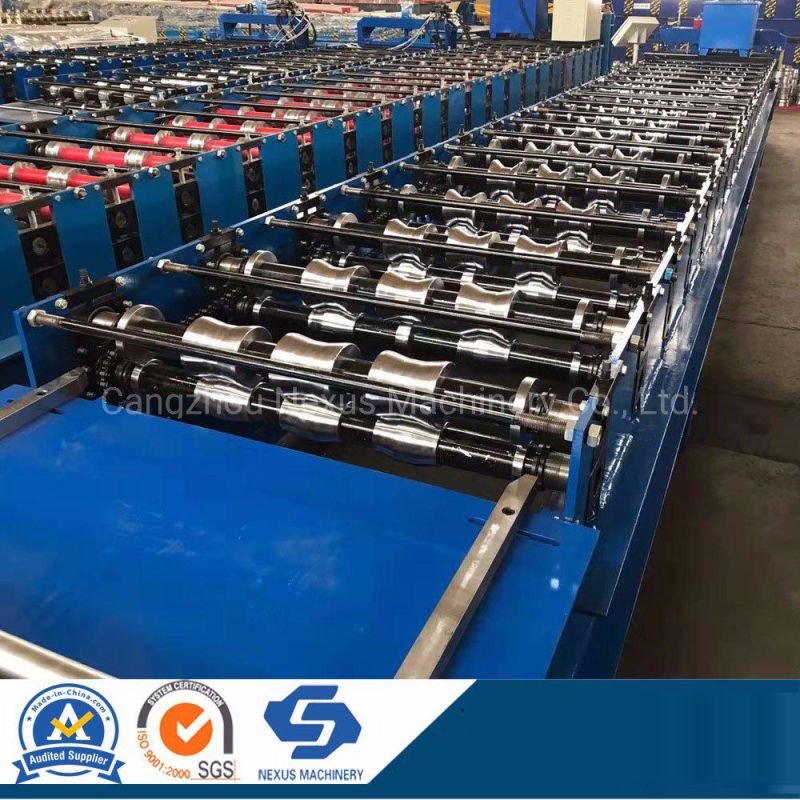

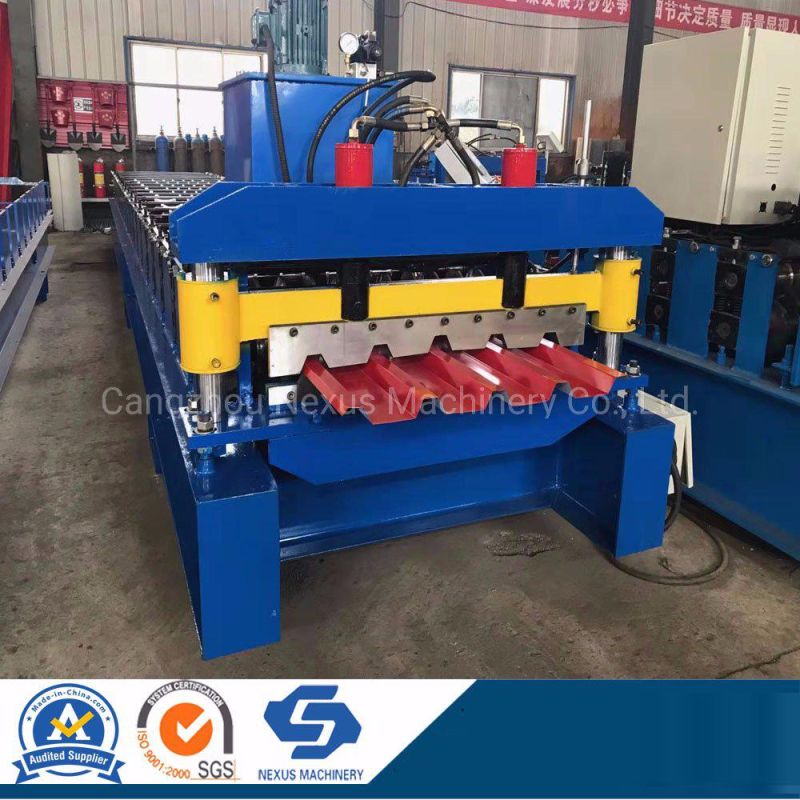

6. Photos of IBR Steel Metal Roofing Sheet Roll Forming Machine/Automatic PLC Control Roof Profile Making  Machine for Reference:
Trapezoidal Ibr Color Steel Zinc Aluminium Roofing Sheet Making Machine/Ibr Iron Sheet Metal Roof Tile Machine
Trapezoidal Ibr Color Steel Zinc Aluminium Roofing Sheet Making Machine/Ibr Iron Sheet Metal Roof Tile Machine
Trapezoidal Ibr Color Steel Zinc Aluminium Roofing Sheet Making Machine/Ibr Iron Sheet Metal Roof Tile Machine
Trapezoidal Ibr Color Steel Zinc Aluminium Roofing Sheet Making Machine/Ibr Iron Sheet Metal Roof Tile Machine

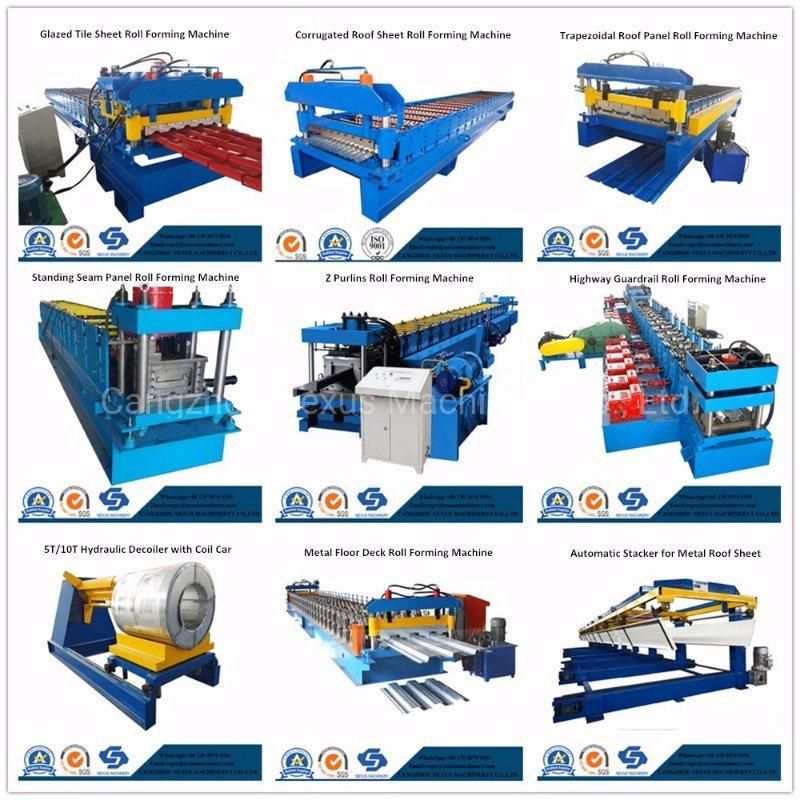

7. More Products for Choose:
Trapezoidal Ibr Color Steel Zinc Aluminium Roofing Sheet Making Machine/Ibr Iron Sheet Metal Roof Tile Machine
FAQ:
  1. Do you have after sales support?
    Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
  2. What can you do if the machine broken?
    Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself.
  3. Can you be responsible for transport?
    Yes, please tell us the destination port or address. we have rich experience in transport.
  4. Do you provide customized?
    Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.
