• Model NO.：QT5-20
• Dimension(L*W*H)：3650*2100*2720mm
• Rated Pressure：21MPa
• Processing Method：Hydraulic Pressure
• Vibration Frequency：4500r,Min
• Capacity：72000PCS,10hrs
• Pallet Size：1100*550*25
• Shaping Cycle：15-20s
• Worker：3-5
• Transport Package：Nude Packing or According to Customer Requirement
• Specification：CE SGS
• Trademark：HENRY
• Origin：Shandong
• HS Code：8474802000
• Production Capacity：(400*200*200)7200PCS,Day

Basic Info.

Model NO. QT5-20 Dimension(L*W*H) 3650*2100*2720mm Rated Pressure 21MPa Processing Method Hydraulic Pressure Vibration Frequency 4500r/Min Capacity 72000PCS/10hrs Pallet Size 1100*550*25 Shaping Cycle 15-20s Worker 3-5 Transport Package Nude Packing or According to Customer Requirement Specification CE SGS Trademark HENRY Origin Shandong HS Code 8474802000 Production Capacity (400*200*200)7200PCS/Day

Product Description

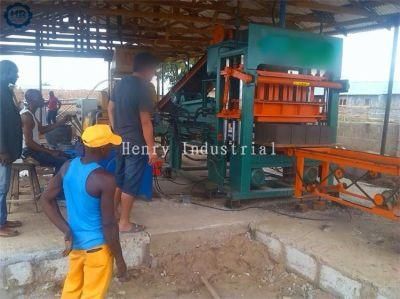

QT5-20 concrete interlock block making machine concrete paving moulds


ADVANTAGES & FEATURES


1. Reasonable design, compact structure, the machine adopts strong steel and special welding technology manufacturing. It also adopts exporting joint venture original, to make the body more stable and reliable.

2. Efficient, super excitation system design and the use of the computer control inverter achieve a variety of vibration frequency and amplitude, greatly improving construction of products and production efficiency.

3. The whole machine adopts PLC and human-computer interface control system, realizing random signal analysis and fault diagnosis, and shaping various required parameters settings, thus making the machine to the best effect.

4. Equipped with special hydraulic yards adjustment type, can be easily realized big production, automatic production, saves the massive human, maintenance yard and circulating fund issuance.

5. Semi-enclosed compulsory spiral distributing system, makes distributing more uniform and fast.

6. Storing and distributing equipment adopts enclosed electric roll, controlling small hopper stocker closely to send materials in time, preventing concrete from being liquefied by aftershocks before distribution.

 Capacity Table

Size		Pcs / Mould	Pcs / Hour
400*200*200mm		5	900 pcs
400*150*200mm		6	1080 pcs
400*100*200mm		9	1620 pcs
500*150*200mm		6	1080 pcs
240*115*53mm		32	5760 pcs
225*112.5*60mm		16	2880 pcs
200*100*60mm		20	3600 pcs
200*160*60mm		12	2160 pcs
400*200*60mm		5	900 pcs




QT5-20 block machine specification

. Technical Data


Overall Size	3650(L)×2100(W)×2720(H)mm
Cycle	20 Seconds for one sheet
Raw Material	Concrete, sand, cement and others
Carriage Size	1100(L)*550(W)*20(H)mm  (Plastic) 1100(L)*550(W)*25(H)mm  (Bamboo) 1100(L)*550(W)*30(H)mm  (Wooden)
Vibration Force	50KN
Electrical Source	380V / 50Hz  (as your demand)
Weight	3500kg
Packing	40FT Container
Price Term	FOB, CFR, CIF
Delivery Time	20-30 days after receiving 30% deposit
Shipping Method	By Sea
Payment Terms	T/T, L/C, West Union, Money Gram

About Us

     Henry Industrial Co., Ltd has been committed to design ,manufacturer ,sale of construction machinery,has the domestic advanced equipments, super professional skills ,
and 20 year production experience, the company R & D center has always been adhering
to the concept"other do not have ,I must have, other have,I must be better", and bold innovation,
enterprising, update on product trending has been at the forefront of the domestic industry.
         The company has been put the new technology, new products in the first place,   has applied for 23 patents, the patent technology guarantee equipment to be rationality,
stability ,reliability,customers have been widely praise and acclaim on it .Company productsare
exported to Europe and the United States ,Africa , the Middle East and America more
than 100 countries and regions, now has 3 offices in foreign countries, which provide good customer service after sale for foreign customers .
        Company adhering to the honest and trustworthy, principle ,adhere to the thinking   before you step, continuous innovation, to create first-class quality , to make customer satisfaction, it has passed ISO9001 quality management system certification, SGS certification
and CE certification. It will continue to work hard , continue to provide perfect products
and wonderful service for customers, to be your sincere friend.



our sevice
     we have go big after sale service  team , they are all the experience technician ,
over 20 workers have the passport ,they all have the oversea experience.
      So we not only have good service in the pre service , we also think highly of the
after sale service.

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer  training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other

Guarantee
(1)We can supply one year guarantee period for our brick making machines,if the
client have the question ,they could call our service department number any time ,
we will supply per day 24 hours service .
(2)Within one year ,if the client meet the unsolvable questions ,we could fly to client
place to help.
