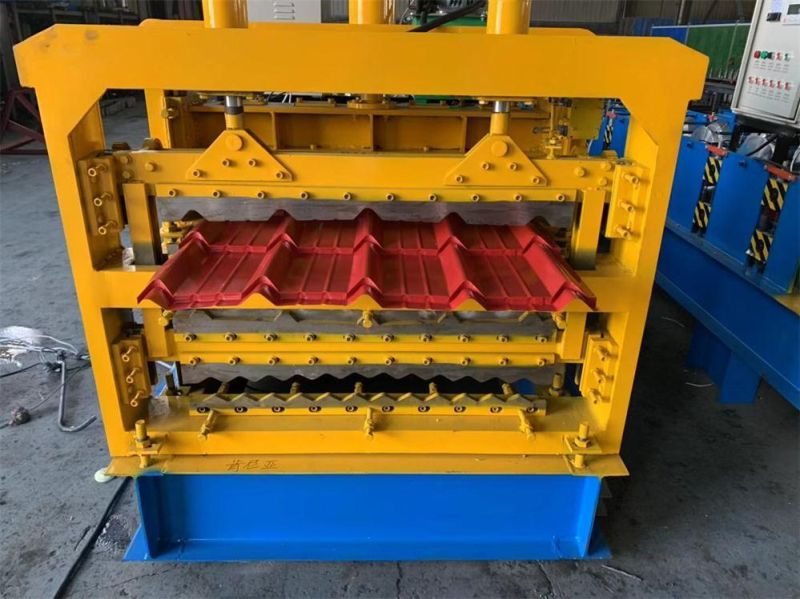

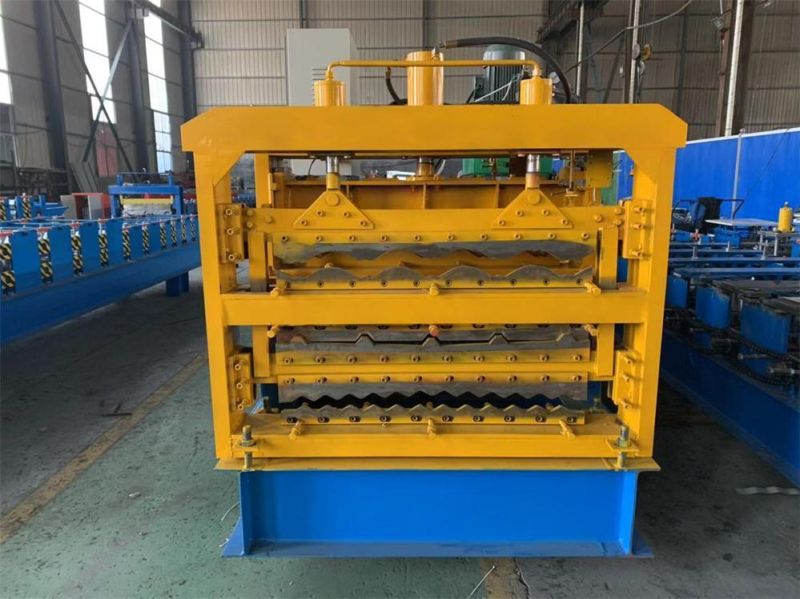

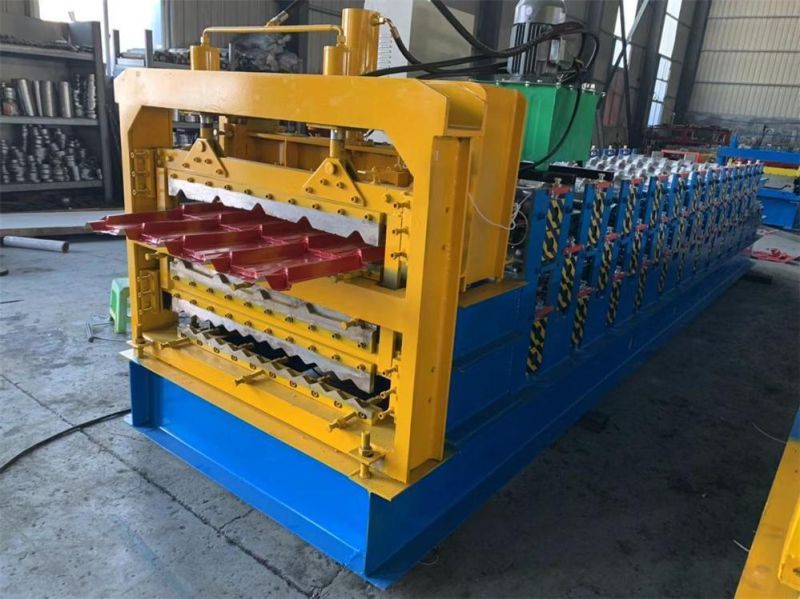

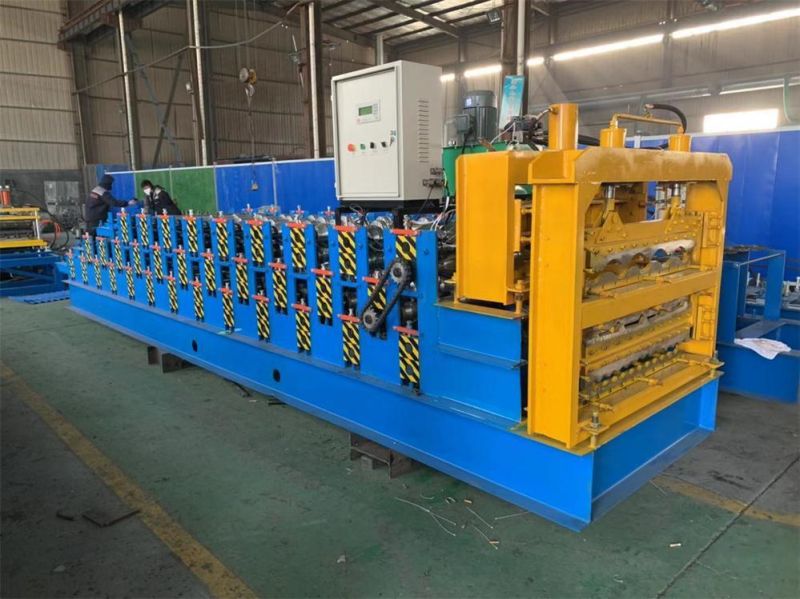

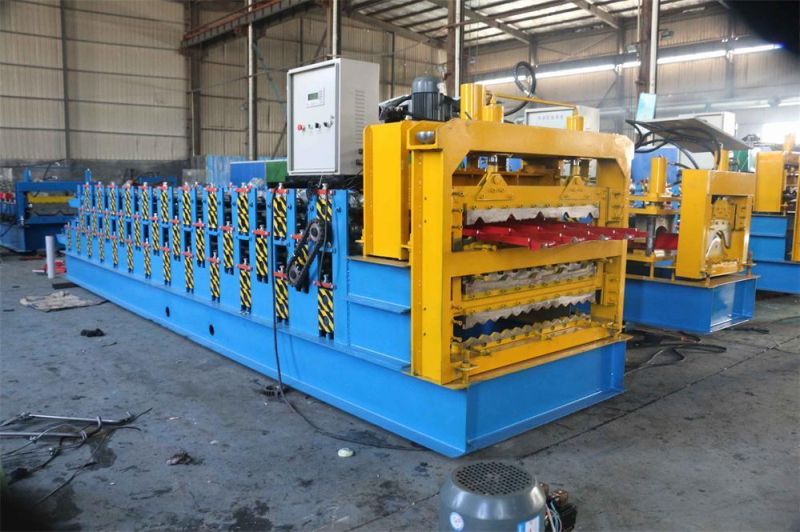

• Model NO.：three layer roofing sheet roll forming machine
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Transport Package：Nude Packing
• Specification：Customized
• Trademark：Dixin
• Origin：China
• HS Code：84552210
• Production Capacity：20 Sets,Month

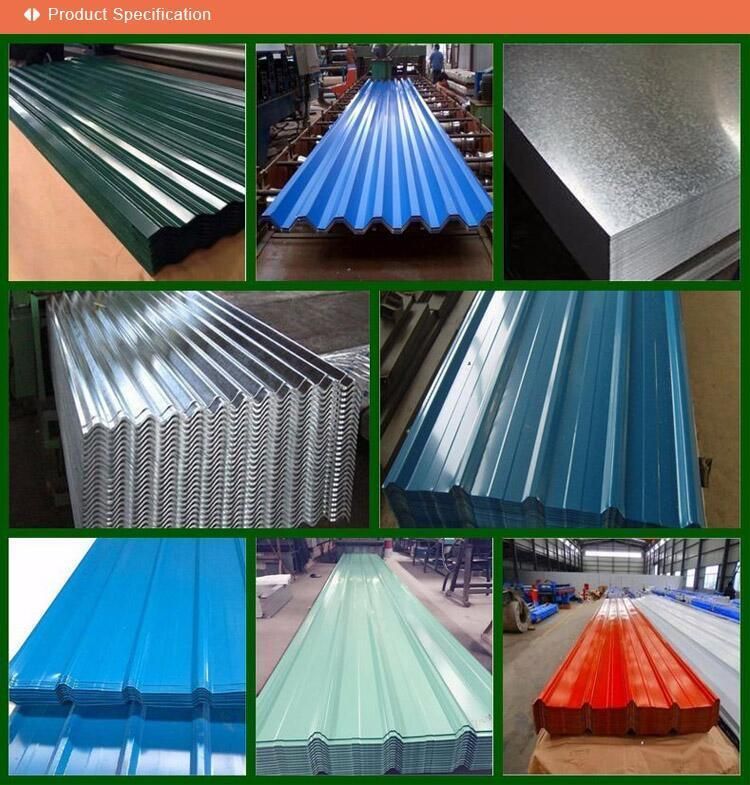

1.Suitable material

Color steel sheet , galvanized steel sheet,aluminum sheet

2.Installation Dimension (L*W*H):

 6.5m*1.5m*1.4m

3.Main motor power

4KW with Cycloidal reducer

4.Hydraulic station power

4KW

5. Hydraulic oil pump

CB-E 310

6.Thickness of material

0.3mm~0.8mm

7.Diameter of principal axis

Φ75mm

8.Material expand width

1000,1200,1250mm

9.Electric tension

380V 3phase 50HZ or as the customer's requirements

10.Material of roller

High grade 45# forged steel plated with hard chrome plating

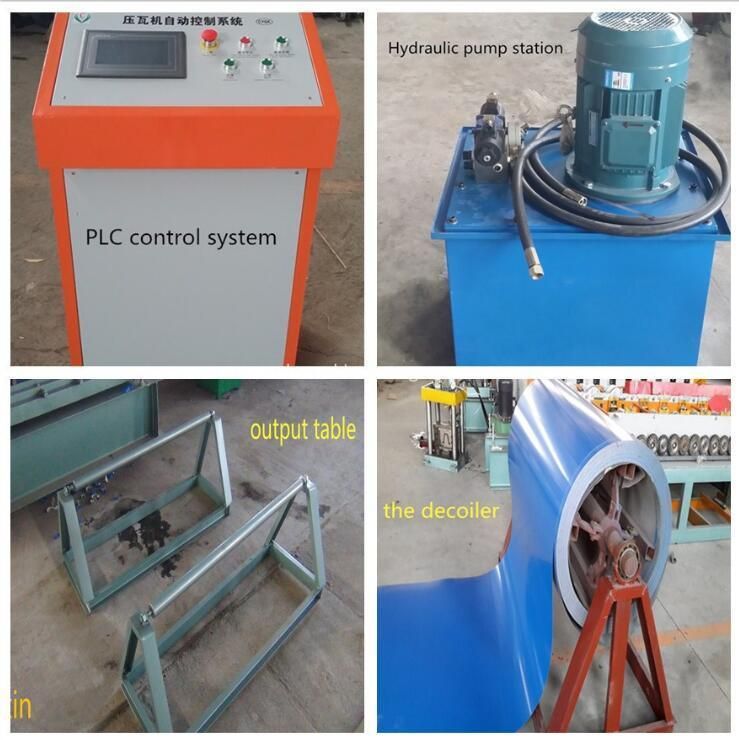

11.Controlling system

Delta PLC with touch screen

12.Processing speed

3-6m/min,10-12m,10-12m

13.Processing precision within

1.00mm (depend on design)

14.Material of cutting blade

Cr12 mould steel with quenched treatment

15.Kind of drive

0.6 inch chain link bearing model 6210

16.Roller station

9/11/13 Rollers

17.Roller material

high grade 45#steel; Cr12 quenching

18. Leak frame load-bearing

3.5T

We know well the requirements for the customers from different countries and have an outstanding export teams who will take care of your requests. Our experts and skilled workers complete the work with great precision.

We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment.

Our products have been sold worldwide over 90 countries including America, the UK, Australia, India, Sri Lanka South Africa, Tanzania, Nigeria etc.

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee.

 All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
It is very easy to install the equipment and suitable for producing in the factory.

Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

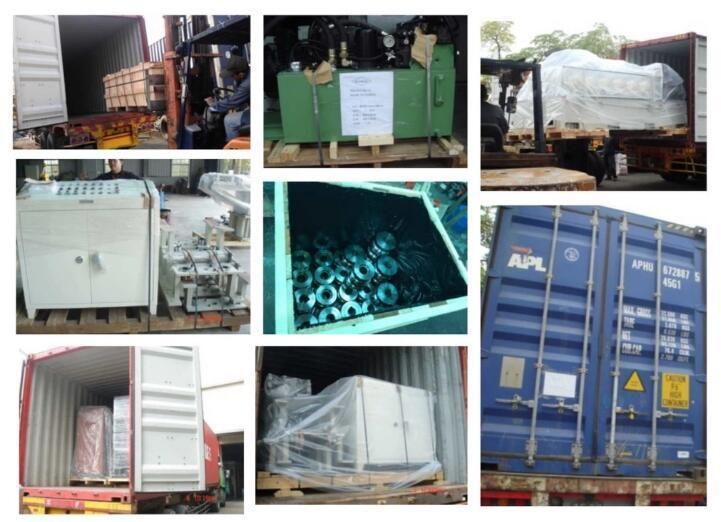

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
       2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5       hours), then we can pick up you.

Thanks for your view .  If any further detailed information you want to know, please feel free to contact me ! Sincerely welcome to visit us and looking forward to your kind inquiry and long cooperation !
