• Model NO.：MF1600T
• Automatic Grade：Automatic
• Feeding Material：Galvanized Sheet(Gi), Cold Roll Steel(CRC), Hot RO
• Yield Strength：235-550MPa
• Punching：Service Hole, Dimple Hole, Web Notching
• Thickness：0.85-1.6mm
• Profile Width：75mm-220mm
• Profile Flange：32mm, 41mm, 51mm
• Profile Lip：7mm -15mm
• Cutter Material：Cr12 MOV, Heat Treatment
• Control System：PC Control
• PLC Brand：Japan Panasonic
• Decoiler：Hydraulic Decoiler
• Forming Stage：15 Stage
• Size Changing：Auto Size Changing for Rollers
• Blade Replacement：Manual Blade Replacing
• Main Motor Power：15kw
• Transport Package：Naked Package
• Specification：length x width x height 13m x 1.2m x 1.6m
• Trademark：Frametec
• Origin：Xiamen, China
• HS Code：84552210
• Production Capacity：600 Sets,Year

Basic Info.

Model NO. MF1600T Automatic Grade Automatic Feeding Material Galvanized Sheet(Gi), Cold Roll Steel(CRC), Hot RO Yield Strength 235-550MPa Punching Service Hole, Dimple Hole, Web Notching Thickness 0.85-1.6mm Profile Width 75mm-220mm Profile Flange 32mm, 41mm, 51mm Profile Lip 7mm -15mm Cutter Material Cr12 MOV, Heat Treatment Control System PC Control PLC Brand Japan Panasonic Decoiler Hydraulic Decoiler Forming Stage 15 Stage Size Changing Auto Size Changing for Rollers Blade Replacement Manual Blade Replacing Main Motor Power 15kw Transport Package Naked Package Specification length x width x height 13m x 1.2m x 1.6m Trademark Frametec Origin Xiamen, China HS Code 84552210 Production Capacity 600 Sets/Year

Product Description

TECHNICAL PARAMETERS

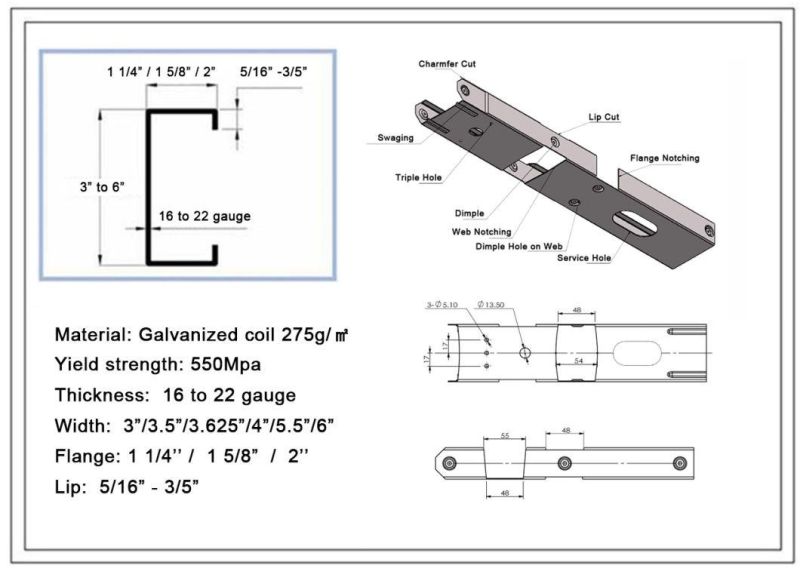

I. Specifications

1) Profile width: 3"/3.5"/3.625"/4"/5.5"/6"
2) Profile flange: 1 1/4 "  /  1 5/8"  / 2"
3) Profile thickness: 22 gauge to 16 gauge
4) Material : galvanized coil sheets: ASTM A1003 & ASTM A653
5) Max yield: 80ksi at 1.6 mm (16ga) material thickness.

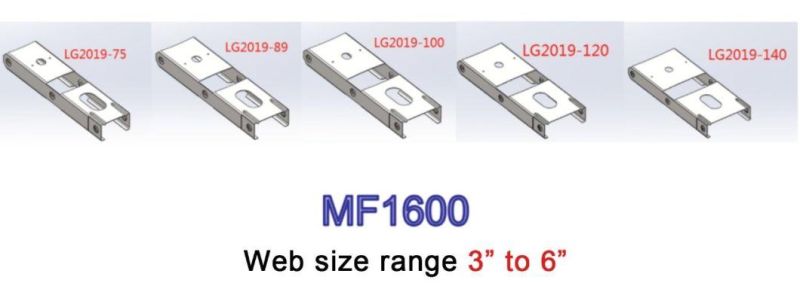

The range of web size is 3" to 6" (75-160mm). It is divided into 4 areas: 3"-3 5/8", 3 5/8"-4"mm, 4"- 5.5"mm, 5.5"-6". Each of the 4 areas will have related chamfer cut tooling and notch cut tooling. So this machine can be easily exchange punch tools when produce difference size of steel profile.

II. Machine Components

• Hydraulic de-coiler -------------------------------------------------------------------  1 set
• Leveling Device -----------------------------------------------------------------------  1 set
• Pre-punching Device ---------------------------------------------------------------  1 set
• Roll Forming System ---------------------------------------------------------------  1set
• Post-punching Device --------------------------------------------------------------  1 set
• Cutting Device -----------------------------------------------------------------------  1 set
• PLC Control System -----------------------------------------------------------------  1 set
• Out-let Table --------------------------------------------------------------------------  1 set

III. Flow Chart
The flow chart is showing below.
De-coiler→ Leveling Device→ Pre-punching Device→ Roll Forming System→ Post-punching Device→ Cutting Device →Out-let table

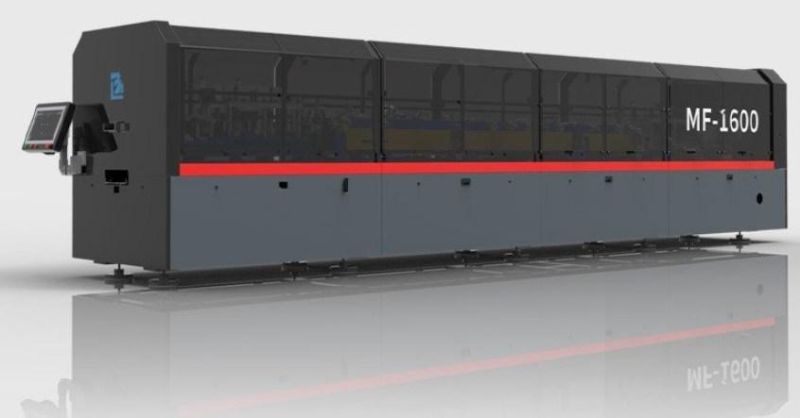

IV. Machine Pictures




V. Technology Parameters
The weight of the Machine: About 10 Ton
The total dimension with un-coiler, Out-let Table is:
(length) 16m x (width) 1.71m x (height) 2m.
The dimension of forming parts: (length) 8m x (width) 1.71m x (height) 2m.

 1)Hydraulic de-coiler (The hydraulic de-coiler is excluded in this quote)

1. De-coiler Type: Hydraulic auto de-coiler
2. Weight capacity: Max 5.0T
3. Diameter of inner: 480-510mm
4. Diameter of outer: 800mm
5. Motor power: 3.0Kw,60Hz, 380V(Customized)
6. Control type: Electric button control
7. Function: Auto rotation feed sheets into roll forming parts. Semi auto for loosening and tightening coil
8. Weight of de-coiler: 1000KGS.
9. Side Locks provided on de-coiler to fix coil.

2)  Punching
All punching dies are made from Cr12. Driven by hydraulic station. Holes parameter are able to set by PLC, Including Punching length and numbers.
Four leveling devices is used to fasten the raw material. When punching system is on working, the raw material will be fixed tightly by leveling device to ensure the job precision.

1. Hydraulic station: 11 kw + fan cooling system
2. Driven by servo motor.
3. Hole Type:

a. Right flange punching
b. Left flange punching
c. Web triple hole
d. Bolt hole
e. Online-swage
f. Truss cut
h. Web notch
i. Dimple
j. Service hole
k. Lip cut
Pre-punching holes: 1,2,3,4,6,7,9,10
Post-punching holes: 5,6,7,8

1. Punching precision within +/-1mm
2. After hole punching, raw material will be driven into roll forming system.

3) Rolling Forming System

1. Main motor type: 3 phases
2. Main motor power: 15Kw, 60Hz, 380V (suits Australian power requirements)
3. Servo motor brand: INNOVANCE
4. Speed of forming: 25m/min
5. Comprehensive speed: 5-12m/min
6. Roller: 17 groups rollers. Roller Material is Cr12 mould steel being quenched treatment, with digital-controlled procession. This ensure rollers are all on good condition and long life.
7. Shaft & Frame: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.

4) Changing Size

1. Full-automatic (change sizes by PC control system)
2. Machine is designed to change profile size within 1 minutes. This type of system is easy to operate. Only need to set the profile specs on the control panel, the roller stands will move in and out automatically.
3. Size range: Web: 3" -6"
4. Flange: 1 1/4",  1 5/8", 2"
5. Lip: 5/16" - 3/5"
6. Motor power: 0.75kw, 380v, 60Hz, totally 2 sets.


5) Hydraulic Cutter

1. Cutting material: Cr12 Cr12MoV Cr12(total three blades)
2. Hydraulic motor power: 11KW
3. Hydraulic Pressure: 16Mpa

6) Out-let Table

4 meter material receiving table, with a stacking platform.
To consider easy for shipment. The components of Out-let Table will be well packaged and will be installed at Buyer's warehouse.


7) Safety Guard: Safety Guard covers the whole machine to ensure worker's safe.
Each parts of safety guard is linked with lock. Safety switch is available to stop machine when safety guard is open.


8) PC control system LG-R1.

1. The control system has capacity to program production CNC by inputing Dahe's TXT to CSV format and connect with machine directly. It can control machine auto-running and running status dynamically, including punching, cutting and size changing.
2. Manual length/punching program of production
3. The computer can control production line including leveling, punching, cutting, conveyer table and roll forming station. Speed of the machine can be adjusted.
4. The choice production data can be showed on screen.

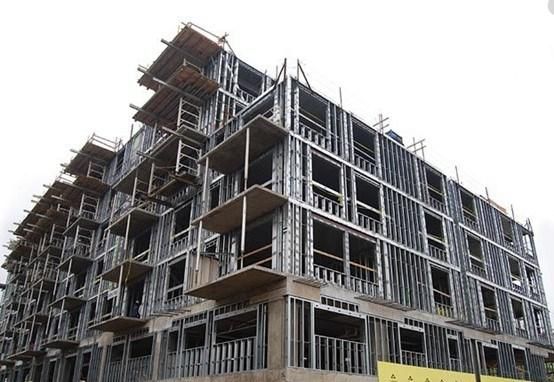

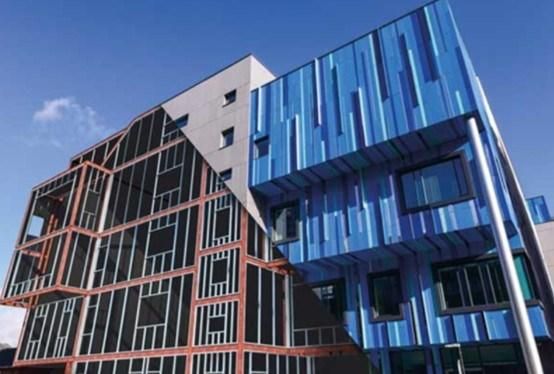

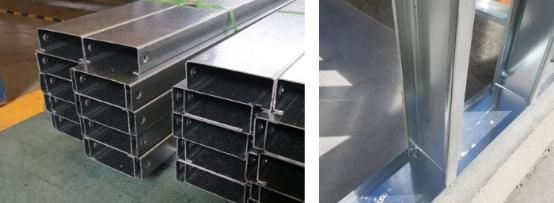

9) Profile image and application







10) Our Factory




Why Choose us:
13+ years manufacturing experience in CZ purlin roll former
Competitive price and good quality
One year free warranty
Fast response of after sale service
Auto web size changing from 80mm to 350mm in 2 minutes
Can be customized by clients' requirements
Easy operate and easy to maintain
Self-developed of post cutter, one blade to cutter all size of final product
