Ljz2-CNC-550X4200 System Door and Window Machine Heavy Double-Head 45° Special Cutting Precision Saw CNC Cutter Machine
Shandong Zunbo CNC Equipment Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year, 1 Year
- Condition：New, New
- Certification：ISO, GS, CE, RoHS, ISO 9001
- Automatic Grade：Automatic
- CNC or Not：CNC
Base Info
- Model NO.：Ljz2-CNC-550X4200
- Voltage：380V
- Process Usage：Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Numerical Control：CNC,Mnc
- Performance Classification：MID-Range CNC Machine Tools
- After-Sales Service：Lifetime Maintenance Service
- Application：Window
- Specification：5800*1800*1500 mm
- Trademark：Zunbo
- Origin：China
Description
Basic Info.
Model NO. Ljz2-CNC-550X4200 Voltage 380V Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools After-Sales Service Lifetime Maintenance Service Application Window Specification 5800*1800*1500 mm Trademark Zunbo Origin ChinaProduct Description
Product Description:

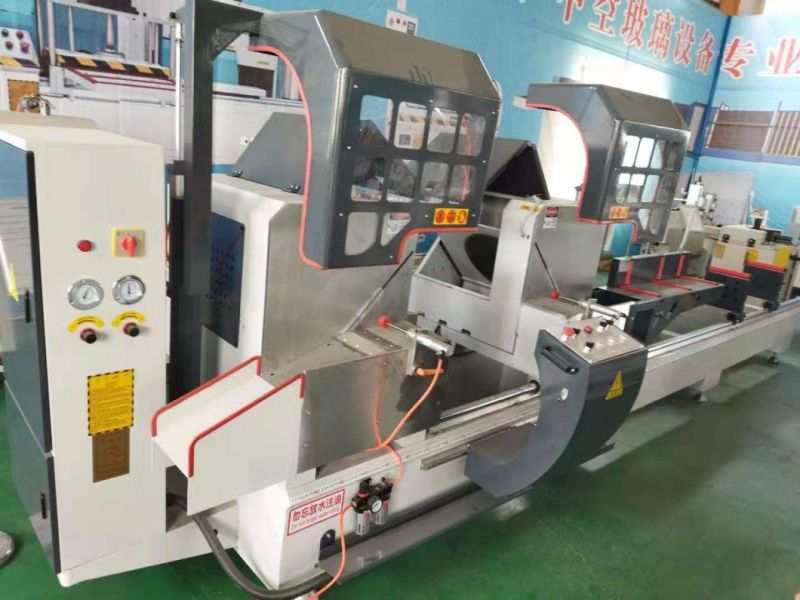

Model: LJZ2-CNC-550X4200It is mainly used for cutting and blanking of system door and window profiles, and also for cutting and blanking of plastic profiles.
Using carbide saw blades, the outer diameter can reach 550, the line speed is high, and the machining accuracy is high.
The transmission accuracy is high, the positioning is accurate, and the work is stable.
High-precision spindle motor makes the saw blade rotate stably
The gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
Use micro spray cooling device.
When the machine is working, the two saw blades can cut at the same time or separately.
The machine head is fixed at an angle of 45° to ensure long-term use accuracy and stability.
The saw blade is from back to front, and the cutting profile is safer and more reliable, and the sawing height and sawing width are large.
Technical Parameter:
Power source: 380V 50HZ
Saw head motor: 2× 3KW/ 2800r/min
Working pressure: 0.6~0.8MPa
Air consumption: 60L/min
Cutting length: Max4250mm min 320mm
Cutting width: max 170mm
Maximum cutting bevel: 45°170×280mm
Cutting angle: 45°
Feed speed: stepless speed regulation 0-3m/min
Saw blade specifications: ø550 × ø30 × 4.4× Z144
Dimensions: 5800× 1800× 1500 mm
Weight: 2000kg
Repeated fixed length accuracy: ≤ 0.2mm
Tolerance of profile cutting angle: ±3
Flatness of cutting profile: ≤ 0.1m
Cutting surface roughness: Ra12.5μm
