• Transport Package：Naked
• Specification：KEXIND C Z
• Trademark：Kexinda
• Origin：China
• Production Capacity：500 Sets,One Year

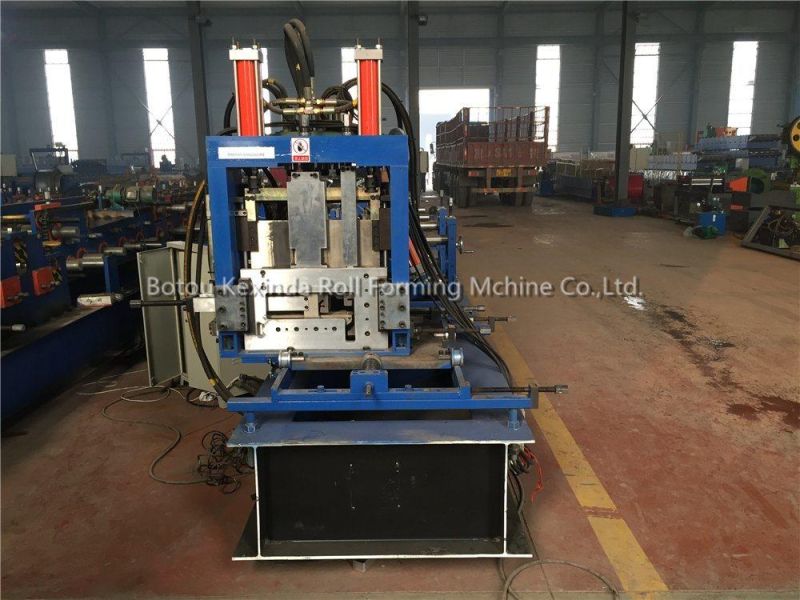

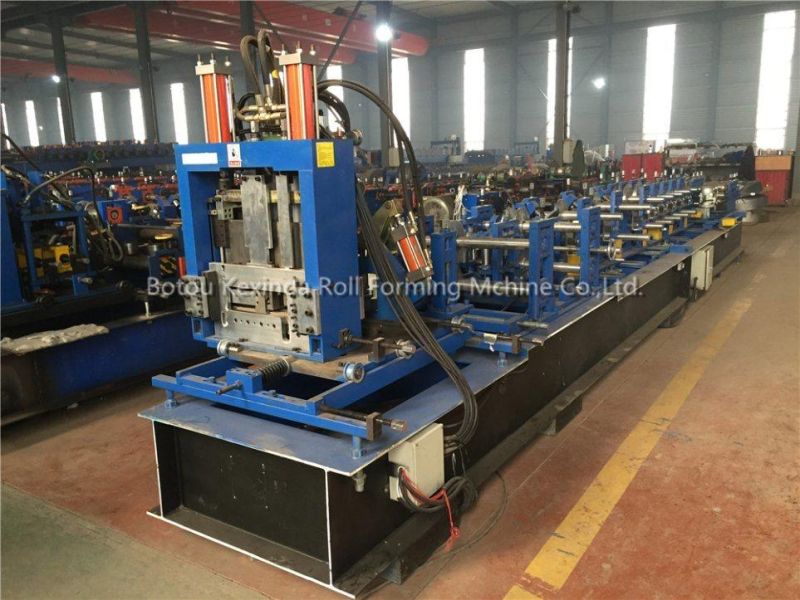

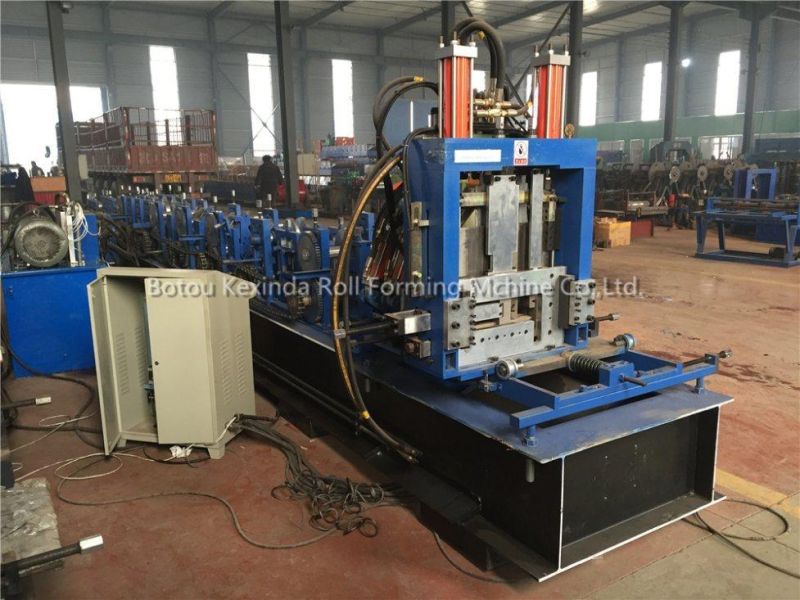

Technical parameters:1Name of commodity & specificationC/Z purline roll forming machine2Main motor power15kw, 3 phase3Hydraulic motor power5.5kw4Hydraulic Pressure16MPa5Voltage380V /3phase/ 50 HZ (or as your requirement)6Control SystemPLC Delta Inverter7Main Frame400mm H-Beam8Backboard Thickness20mm9Chain Size27mm10Feeding Materialcolor steel coils11Feeding Thickness1.5-3.2mm12Feeding WidthMax. 500mm13Effective widthC80-300mm/Z120-300mm14Productivity12-14m/min15Roll Station1816Roller Diameter95mm17Roller materialGCr1518Cutter materialCr12 , quenched19Cr-Plating Size0.05mm20Overall Size8500×1000×1500mm21Total Weight6T22ComponentsManual Uncoiler-------------------1 set
Guiding Platform------------------1 set

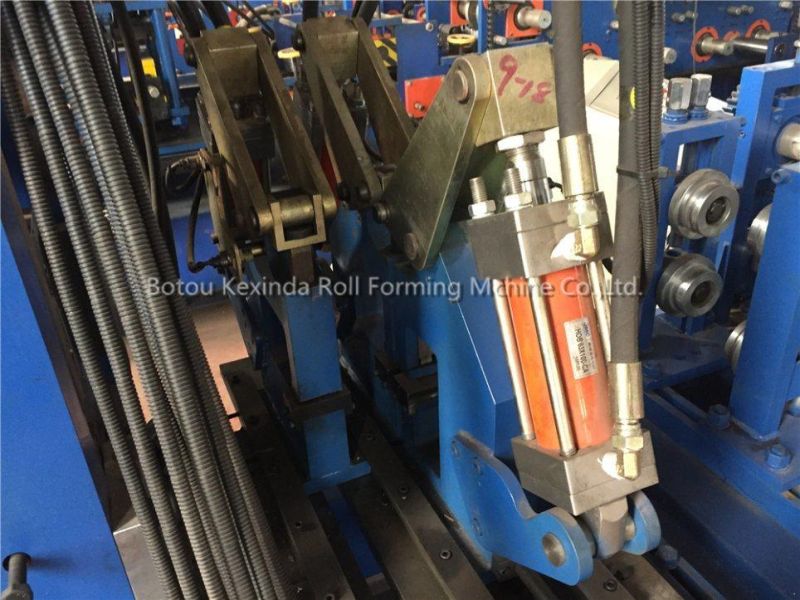

Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Hole-Punch Device--------1 set

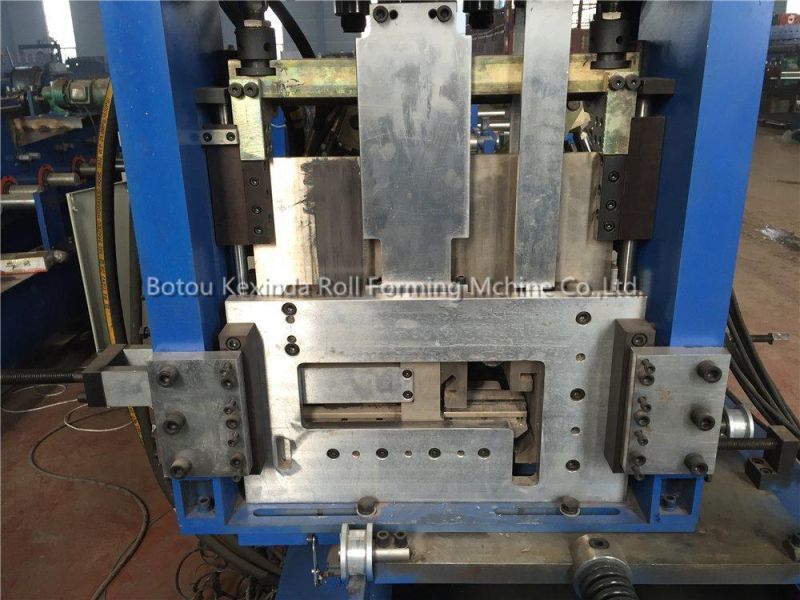

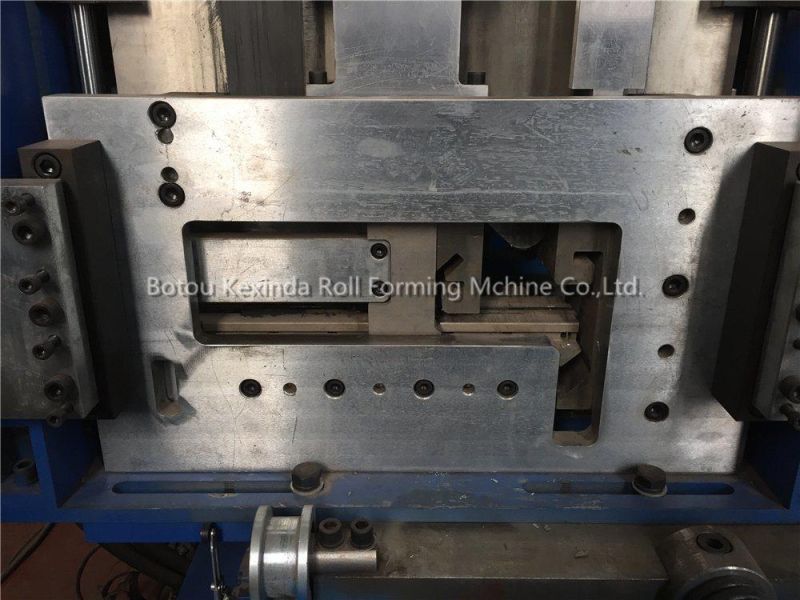

Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set23WorkflowManual decoiling----feeding and guiding----roll forming----punching----cut to length----run out table24Packagenude in the container   27Delivery time60 working days later after receiving the depositAll technical parameters can be changed, according to user's need.
