Single Head Aluminum Alloy Miter Saw Cut Metal Machines and Table Protractor

Shandong Truetec Machinery Co., Ltd.
  • Condition:New
  • Certification:CE
  • Automatic Grade:Automatic
  • CNC or Not:not CNC
  • Voltage:380V
  • Input Power:2*1.5kw

Base Info

  • Model NO.:CLJZ-450*3700
  • Rotary Speed:2800r,Min
  • Air Consumption:60L,Min
  • Cutting Length:400-3700mm
  • Cutting Width:120mm
  • Cutting Height:200mm
  • Cutting Angle:45 ,90 and 135 Degree
  • Machine Dimension:4500*1170*1400mm
  • Weight:1500kg
  • Keyword:Double Head Cutting Saw
  • Function:Used for Cutting Aluminum Profile
  • Cutting Speed:0-3m,Min
  • Cutting Profile Surface Planess:Ra12.5
  • Blade Specification:Degree 450*30*4.4 Z=120
  • Transport Package:Wooden
  • Specification:Saw blade diameter 450mm
  • Trademark:Truepro
  • Origin:China
  • HS Code:846150
  • Production Capacity:500sets,Year

Description


    Single Head Aluminum Alloy Miter Saw Cut Metal Machines and Table Protractor



    Ma
    chine feature:

    1.The machine is used for cutting of aluminum &PVC profile.
    2.Imported carbides blade is of accurate processing and high accuracy.
    3.Saw blade rotates smoothly due to high accuracy main spindle.
    4.Uniform speed feeding and smooth motion are due to airdraulic damping cylinder.
    5.It has feature of easy operation,reliable performance,advanced technique and convenient maintenance,etc.
    6.Two saw head can be manually switching angle,realize the -45 degree,90degree,45degree angle cutting profile.

    Parameter:
    ModelCLJZ-450*3700
    Power Supply380V 50HZ
    Input Power2*1.5KW 1*0.55KW
    Air Pressure0.5~0.8MPa
    Motor Rotary Speed2800r/min
    Saw Blade SpecificationΦ450*Φ30*4.4 Z=120
    Cutting Angle45 ° 90° 135°
    Cutting angle allowance±5'
    Cutting speed0-3m/min
    Cutting profile surface planeness≤0.1mm
    Cutting profile surface roughnessRa12.5μm
    Cutting Lengthmax. 3700mm min.400mm
    Cutting Width*Height120*200mm
    Overall Dimension4500*1170*1400mm
    WeightAbout 1500Kg

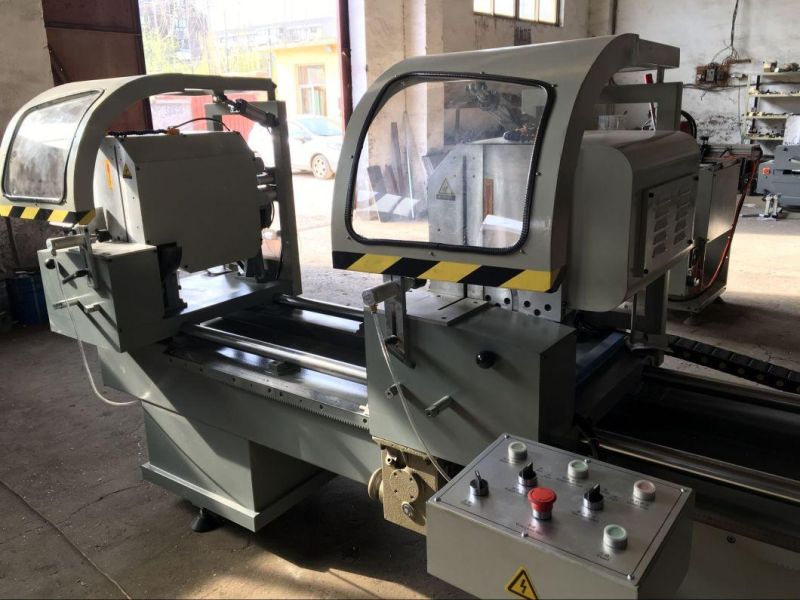

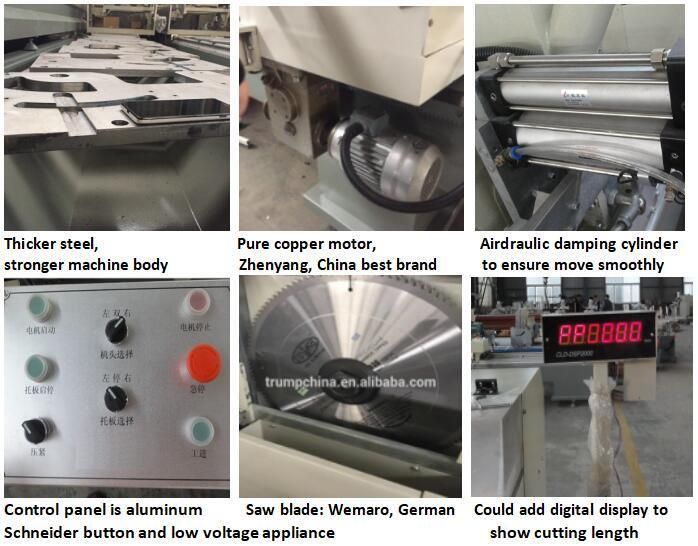

    Machine details:
    Single Head Aluminum Alloy Miter Saw Cut Metal Machines and Table Protractor
    Single Head Aluminum Alloy Miter Saw Cut Metal Machines and Table Protractor

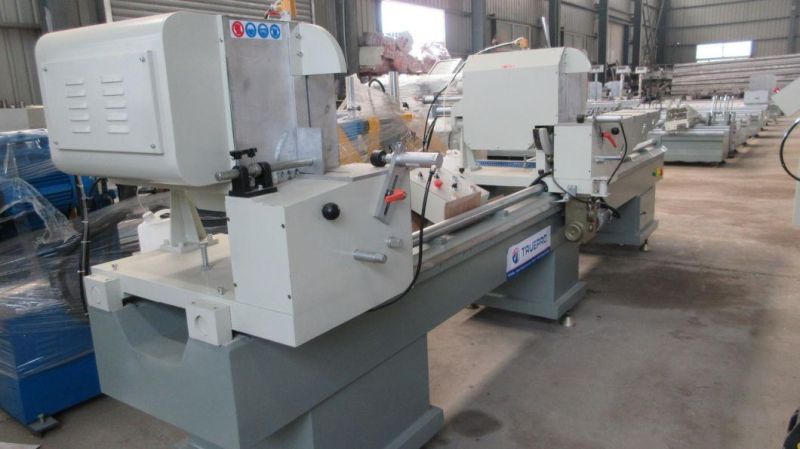

    With saw cover:
    Single Head Aluminum Alloy Miter Saw Cut Metal Machines and Table Protractor
    Single Head Aluminum Alloy Miter Saw Cut Metal Machines and Table ProtractorSingle Head Aluminum Alloy Miter Saw Cut Metal Machines and Table Protractor
    Single Head Aluminum Alloy Miter Saw Cut Metal Machines and Table Protractor

    Single Head Aluminum Alloy Miter Saw Cut Metal Machines and Table Protractor

    1. When can we arrange shippment?
    We usually arrange shippment within 15 days after getting deopsit,
    but customized machines should be more than 25 days.

    2.What you can do if my machines have problems?
    1) We can send you free components to you if your machines are in guarantee time.
    2) We can dispatch our engineers to repair your machines

    3.Do you provide equipment operation training?
    A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
    All of our engineers have passport.


    4. If I make Aluminum window and door, how many basic machines do i need?
    1).double head cutting saw
    2).Lock hole copy milling machine
    3).End milling machine
    4).Automatic Corner connector automatic cutting saw
    5).Single head Corner combining machine
